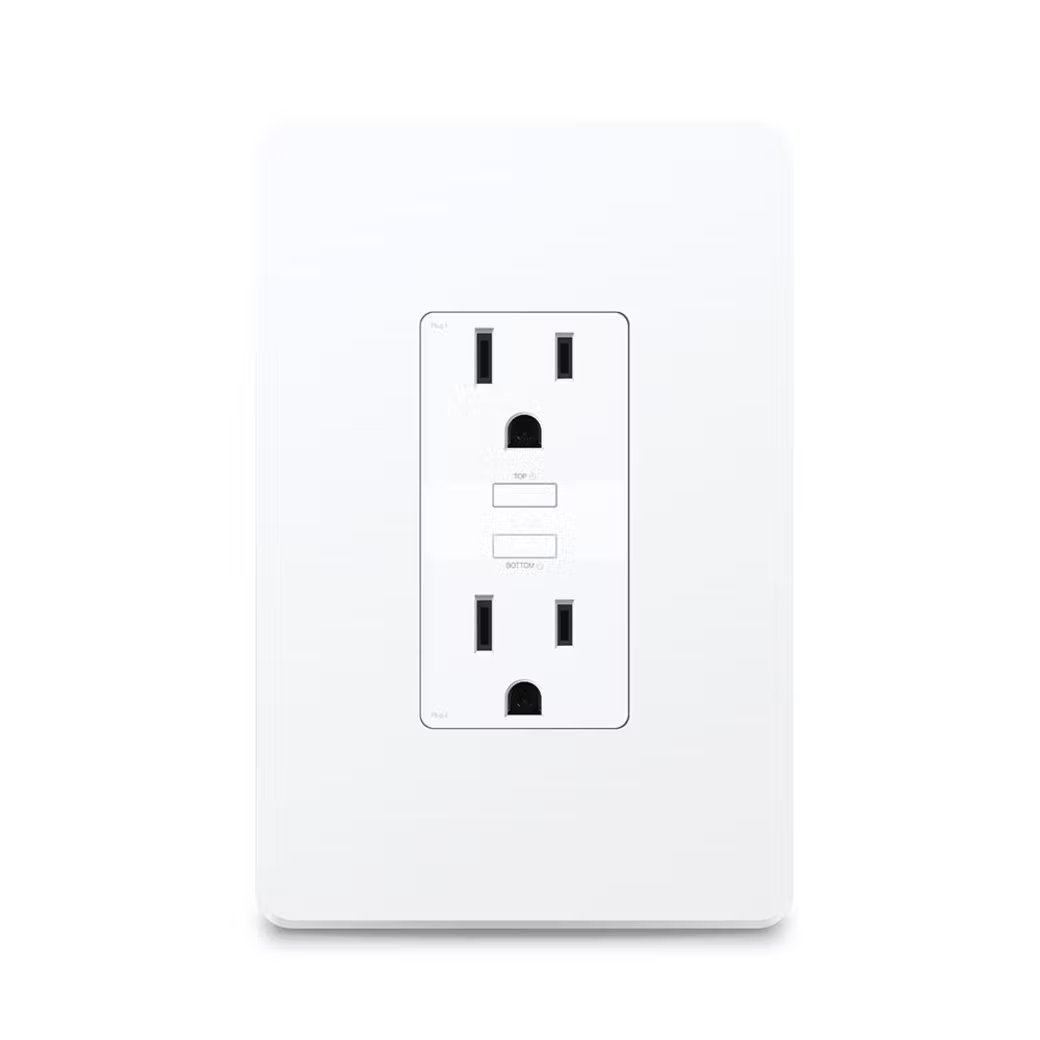

TP-Link - KP200 - KASA SMART WIFI POWER OUTLET ACCS
Part number:
KP200
Price:

KASA SMART WIFI POWER OUTLET ACCS



Features:

  • Smart In-wall Outlets: Kasa Smart’s in-wall outlet lets you control 2 plugged in devices from anywhere at the same time or individually. All the features and benefits of a Kasa Smart plug multiplied.
  • Voice Control: Use simple voice commands with your in-wall smart outlet and any Alexa, Google Assistant or Microsoft Cortana.
  • Grouping: Use Grouping to combine your smart outlet with other Kasa Smart devices for seamless control with one single tap on your smartphone.
  • Easy Install: No need to understand complex wiring, just follow the step-by-step wiring process in the Kasa Smart app for a guided installation.*
  • *Any modification may void warranty.

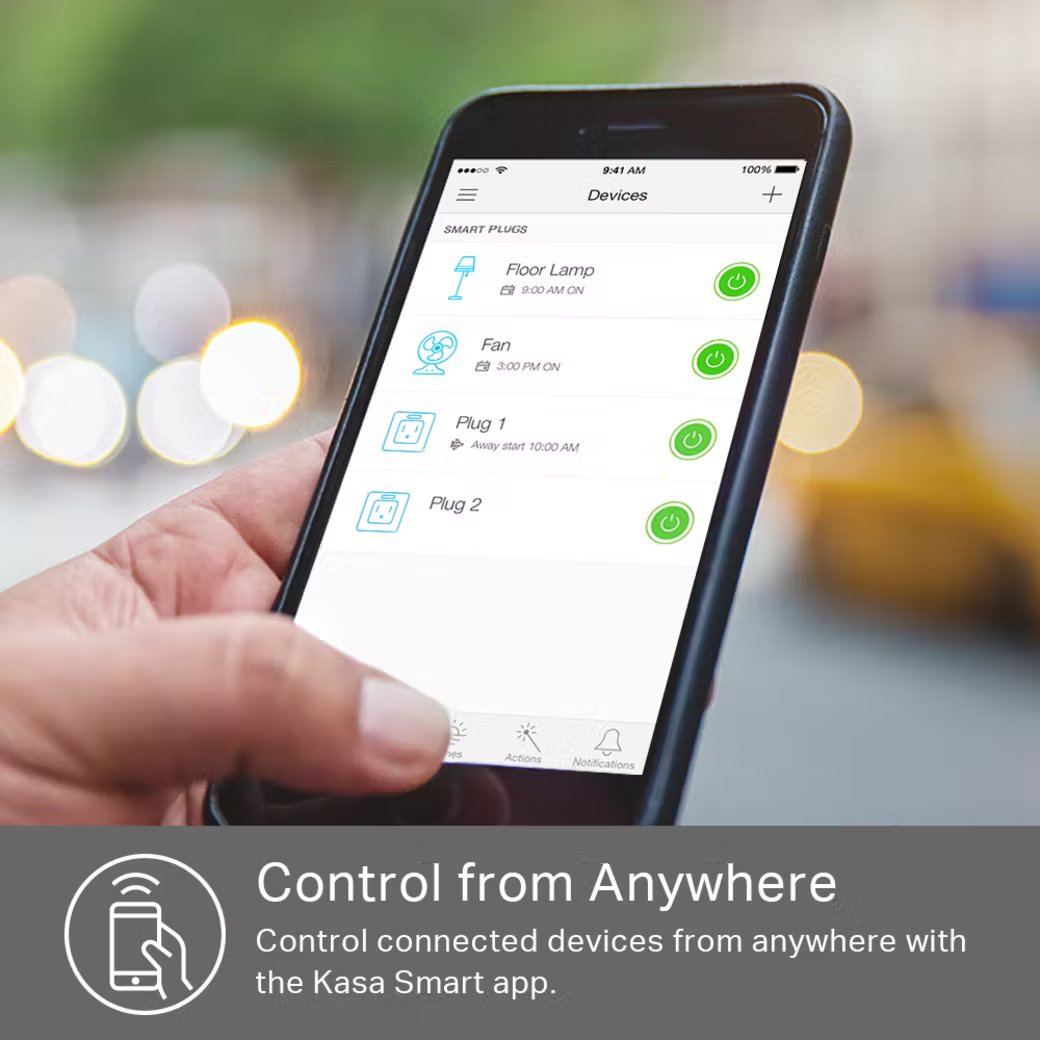

  • Control From Anywhere: Turn your in-wall outlet on or off, set schedules or scenes from anywhere with your smartphone using the Kasa Smart app.
  • Away Mode: Set your outlet to turn connected devices on and off randomly throughout the day to make it appear you’re home even while you’re away.
  • Schedules: Use your Kasa Smart app to individually schedule each device connected to the Kasa Smart Wi-Fi Power Outlet to automatically switch on or off at set times.

Technical Specifications



Communication
Wi-fi ProtocolIEEE 802.11b/g/n
Wi-fi Frequency2.4 GHz
Wi-fi RequirementsSecured 2.4GHz home Wi-Fi network
Kasa Smart App System RequirementiOS 10 or Android 5.0 or higher
Hardware

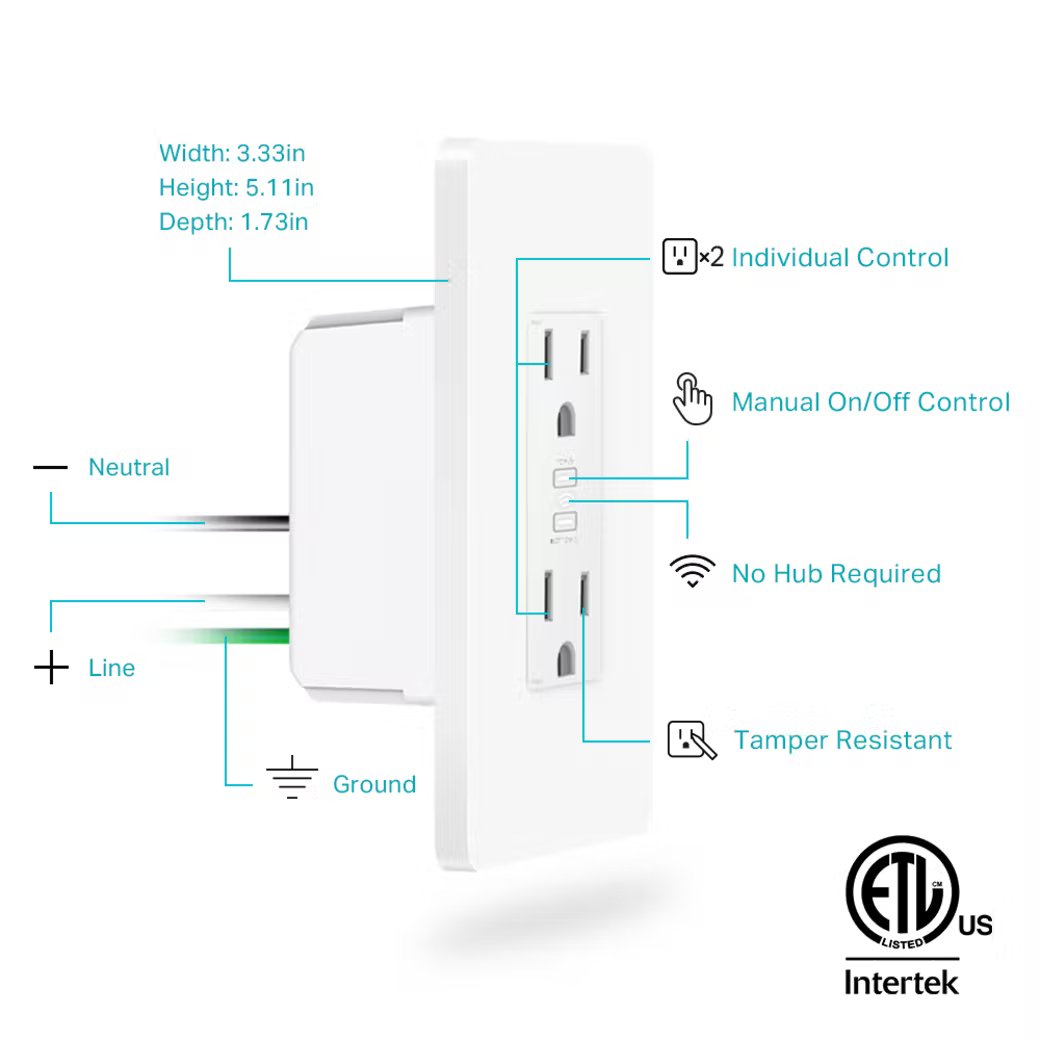

Product Dimensions (w x D x H)1.73 x 3.33 x 5.11 in (43.9 x 84.7 x 129.7 mm)
Packaging Dimensions (w x D x H)4.65 x 2.56 x 6.73 in (118 x 65 x 171 mm)
Product Weight0.399 lb (0.181 kg)
Packaging Weight0.624 lb (0.283 kg)
Ports And Connections

2 sockets

Line, neutral, ground wire lead

Buttons2 outlet on/off control buttons
Leds

1 system indicator (red, amber, green, white)

2 socket on/off indicators (white)

Installation Requirements

Standard outlet wall box (at least 2 inches deep)

Neutral wire required

General
General Features

- ETL certified Tamper Resistant Outlets with fire retardant housing

- Easy install with on-app step-by-step instructions

- Individually controlled sockets

- No hub required

- Works with Alexa, Google Assistant and more

Mobile App Features

- On-app installation guide

- Control from anywhere

- Individual control

- Set Schedules, Timers and Scenes

- Away mode

- Group control

- Widgets quick control

Communication SecurityUtilizes HTTPS with SSL/TLS technology

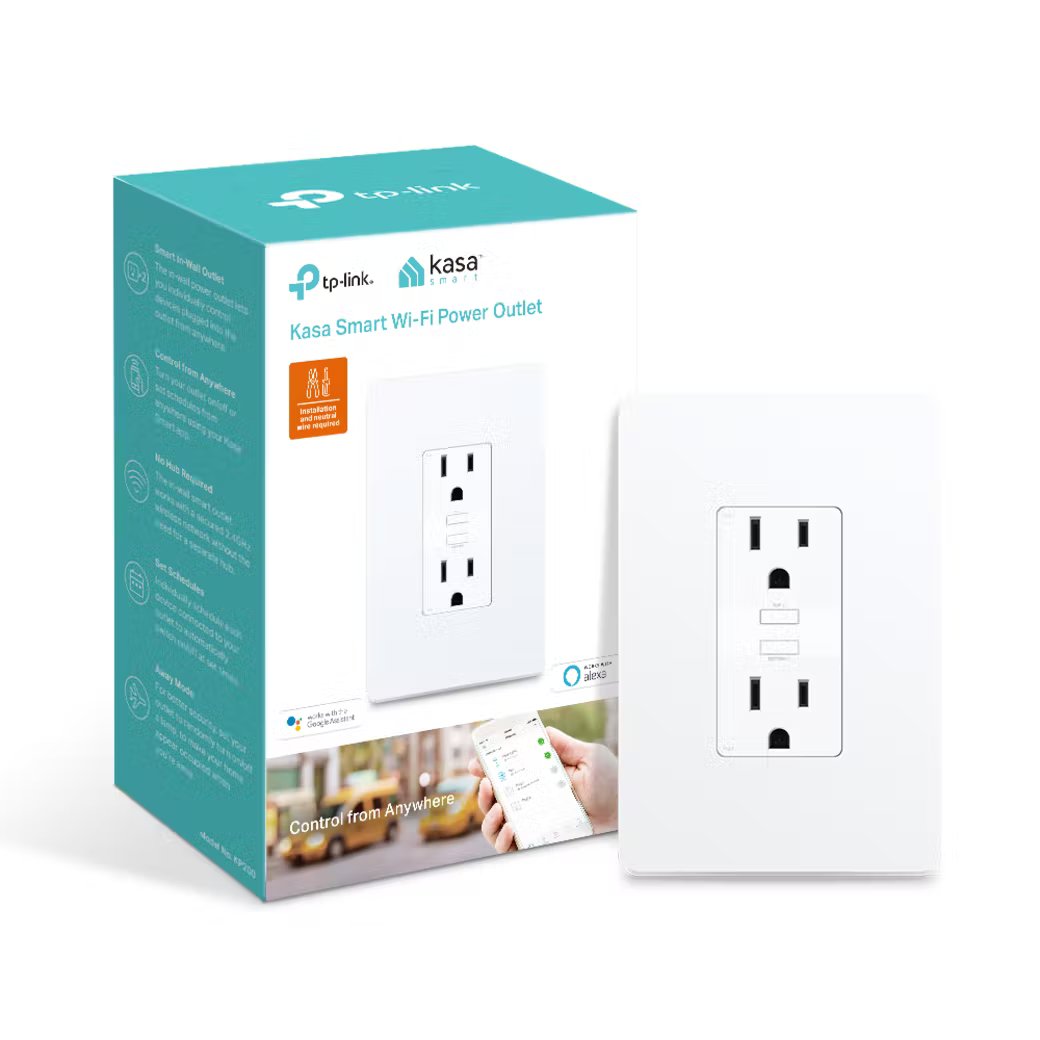

What’s In The Box

1 Smart Power Outlet

1 wall plate

3 wire nuts

1 quick start guide (includes wire label sheet)

CertificationETL, FCC, IC
Operating Temperature32°F~104°F (0ºC~40ºC)
Operating Humidity10%~90%RH, non-condensing
Environment



Indoors only

Warranty2-year limited warranty (US only)
Working Status
Input125V~, 60Hz, 15A Max
Output15A maximum load in total
Power Rating1875W MAX in total
