TP-Link - OC200 - OMADA CLOUD CONTROLLER WRLS
Part number:
OC200
Price:

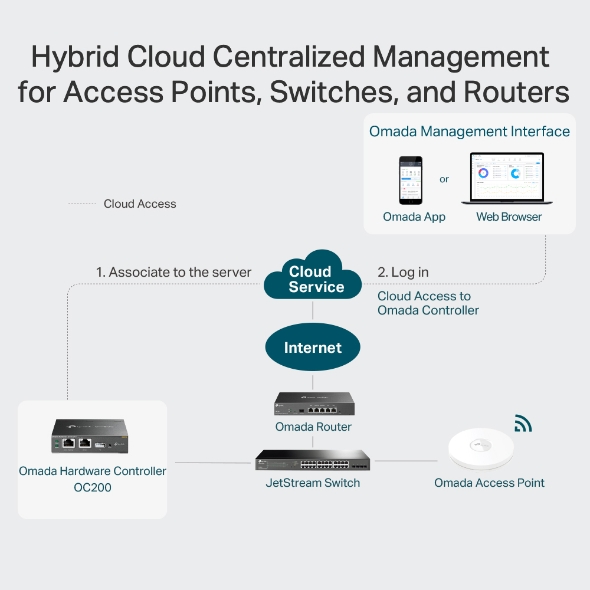

OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, JetStream switches, and Omada routers—all controlled from a single interface.
Features:
- Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.

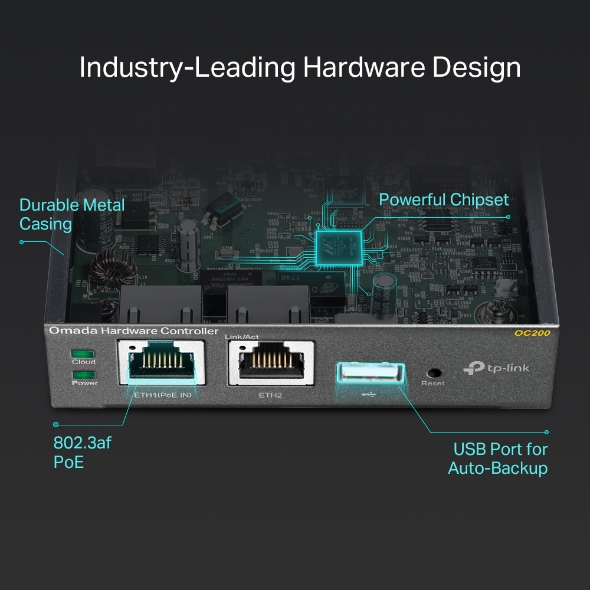

- Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.
- Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.
- Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.
- Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
- Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.
| HARDWARE FEATURES | |
|---|---|

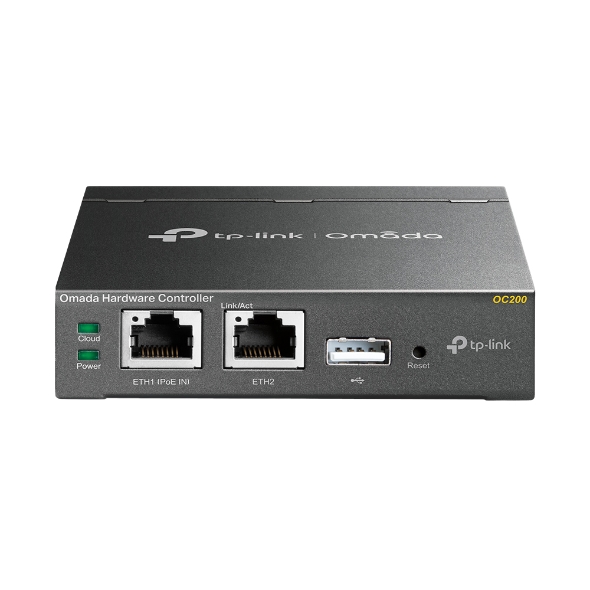

| Interface | 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for power |
| Power Supply | 802.3af/at PoE or Micro USB（DC 5V/1A） |
| Dimensions | 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm) |
| FEATURES | |
|---|---|
| Wireless Fuction | |
| Wireless Security | |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Up to 100 Omada access points, switches, and routers |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | Automatic device discovery Batch configuration Batch firmware upgrading Intelligent network monitoring Event logs and notifications Unified configuration Reboot schedule Captive portal authentication |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Omada Hardware Controller OC200 Quick Installation Guide Ethernet Cable |
| System Requirements | Internet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
