TP-Link - TL-SG1008P - 8-Port Gigabit Desktop Switch with 4-Port PoE
8-Port Gigabit Desktop Switch with 4-Port PoE
Features:
- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Requires no configuration and installation
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
| HARDWARE FEATURES | |
| Interface | 8× 10/100/1000 Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 64 W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7×3.9×1.1 in (171×98×27 mm) |
| Max Power Consumption | 5.39 W (220/50 Hz no PD connected) 75 W (220/50 Hz with 64 W PD connected) |
| Max Heat Dissipation | 18.38 BTU/h (no PD connected) 225.75 BTU/h (with 64 W PD connected) |
| SOFTWARE FEATURES |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs IGMP Snooping Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control 802.1p/DSCP QoS |
| OTHERS |
| Certification | CE, FCC, RoHS |

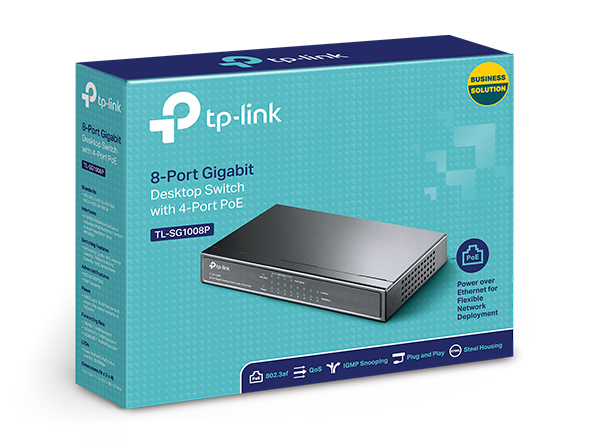

| Package Contents | TL-SG1008P Power Adapter Installation Guide |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
