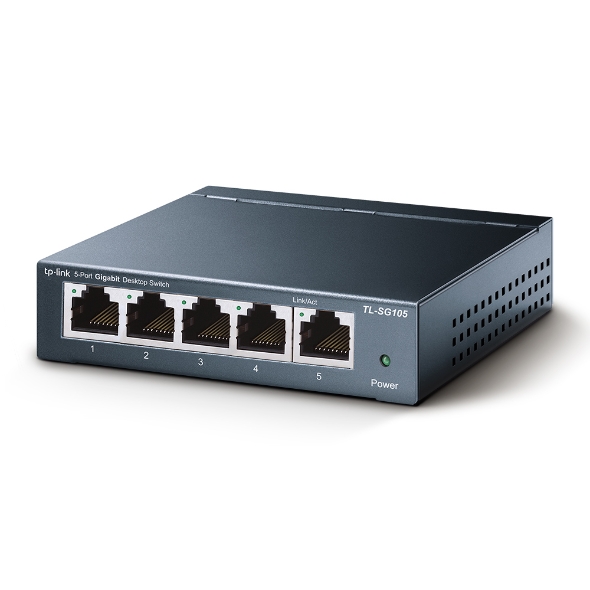

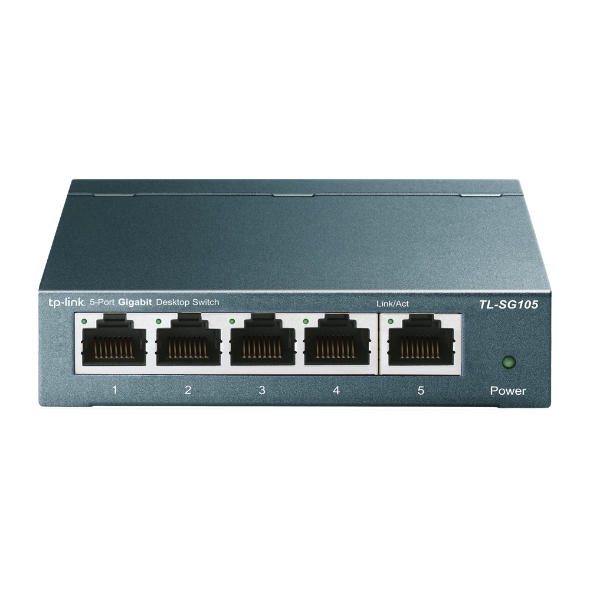

TP-Link - TL-SG105 - 5PORT GIGABIT DESKTOP SWITCH PERP STEEL DESIGN DESKTOP/WALL-MOUNTING
Part number:
TL-SG105
Price:
The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office, the TL-SG105 helps you deal with your business quickly and easily, any time.
Features:

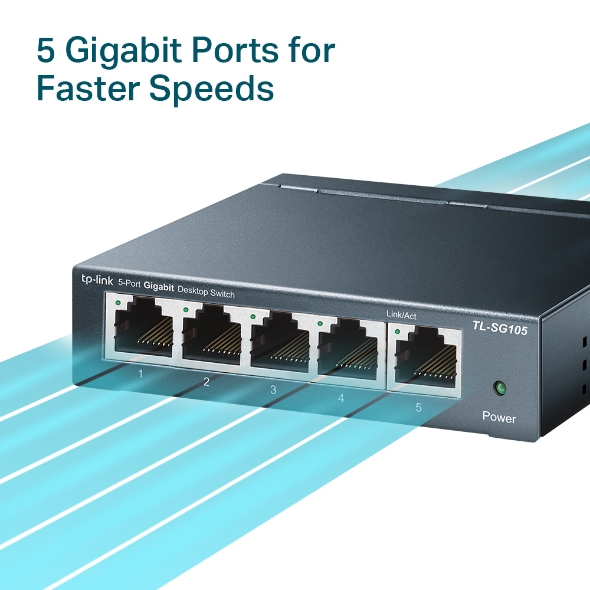

- 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

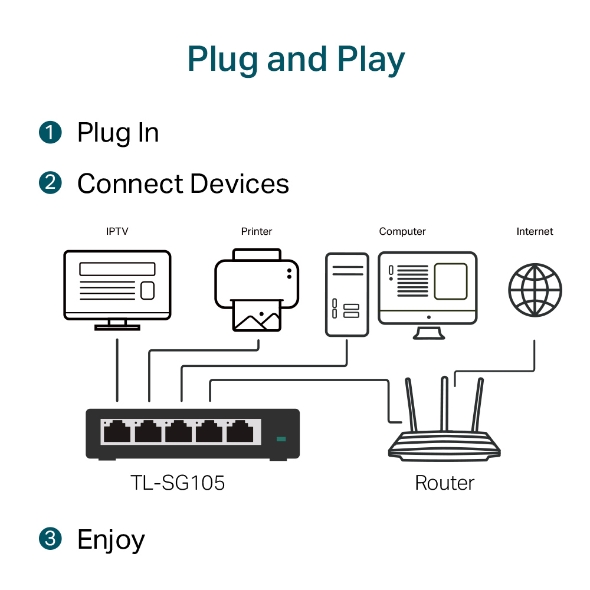

- Plug and play, no configuration needed
- Supports 802.1p/DSCP QoS and IGMP Snooping functions

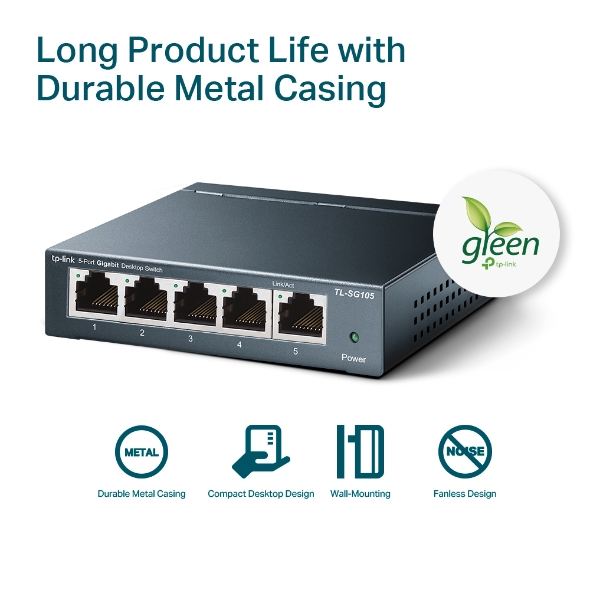

- Durable metal casing, desktop/wall-mounting options, and a fanless design
- IEEE 802.3x flow control provides reliable data transfer
- Green Ethernet technology reduces power consumption
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5 V DC / 0.6A) |
| LED Indicator | System Power |
| Link/Act indicators per port built into each RJ-45 port | |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max Power Consumption | 2.3 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 7.83 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology |
| 802.3X Flow Control | |
| 802.1P/DSCP QoS (for V2 and later version) | |
| IGMP Snooping | |
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |

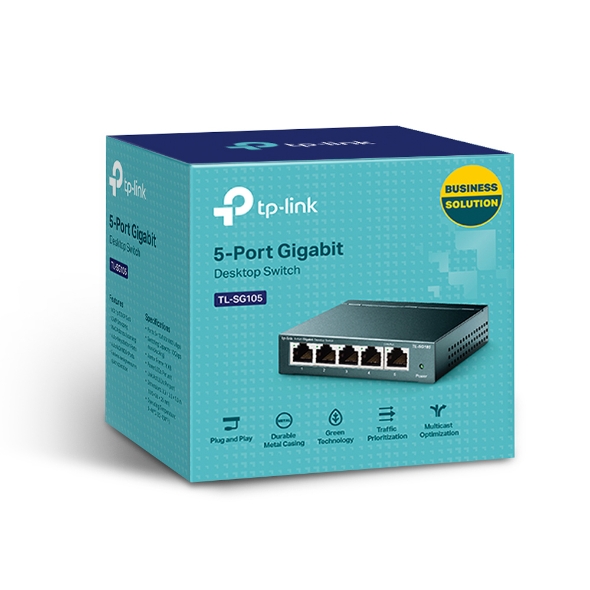

| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0–40 °C (32–104 °F) |
| Storage Temperature: -40–70 °C (-40–158 °F) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
