TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+
TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+
TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+
TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+
TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+
TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+
TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+ TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+ TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+ TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+ TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+

TP-Link - TL-SG105PE - 5PORT GIGABIT EASY SMART PERP SWITCH WITH 4-PORT POE+

Part number:
TL-SG105PE
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

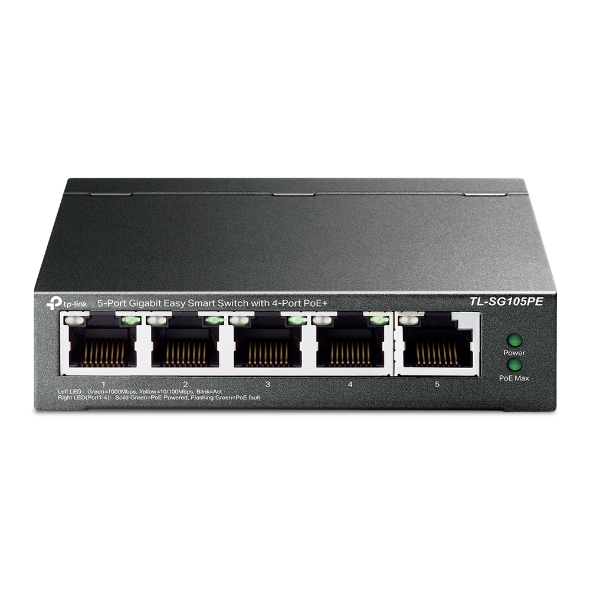

5-Port Gigabit Easy Smart Switch with 4-Port PoE+



Features:

  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
  • Supports PoE power up to 65 W for all PoE ports
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
Technical Specifications
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
InterfaceFive 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless

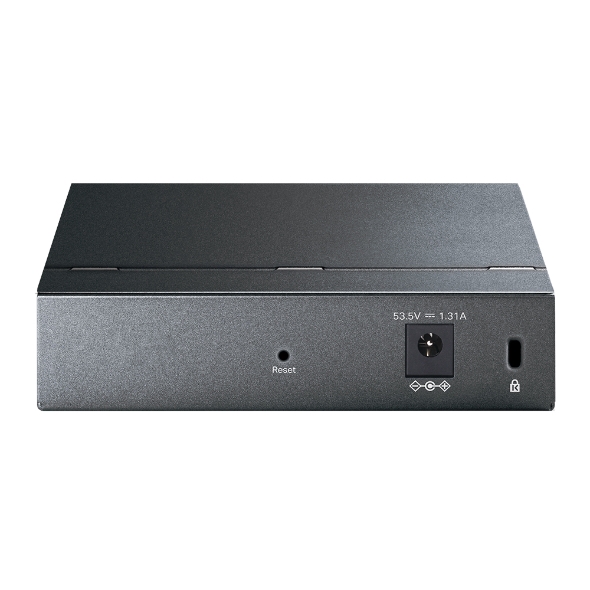

Power SupplyExternal Power Adapter (Output: 53.5 VDC/1.3 A)
PoE Ports (RJ45)Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Dimensions ( W x D x H )3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption4.5 W (with no PD connected)
75.2 W (with 65 W PD connected)
Max Heat Dissipation15.4 BTU/h (with no PD connected)
256.3 BTU/h (with 65 W PD connected)
PERFORMANCE
Switching Capacity10 Gbps
Packet Forwarding Rate7.44 Mpps
MAC Address Table2 K
Packet Buffer Memory1.5 Mb
Jumbo Frame16 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLANSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
ManagementWeb-based GUI
Easy Smart Configuration Utility
Transmission MethodStore-And-Forward
OTHERS
CertificationFCC, CE, RoHS
Package ContentsTL-SG105PE
Power Adapter
Installation Guide
Rubber Feet
System RequirementsMicrosoft Windows for Utility Software
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
