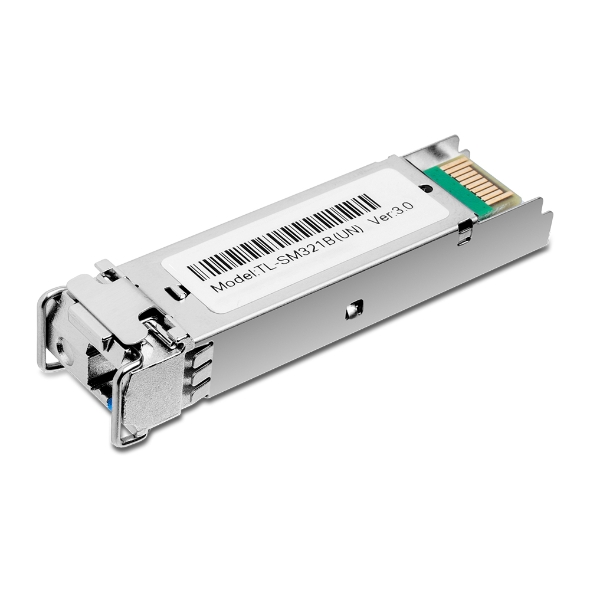

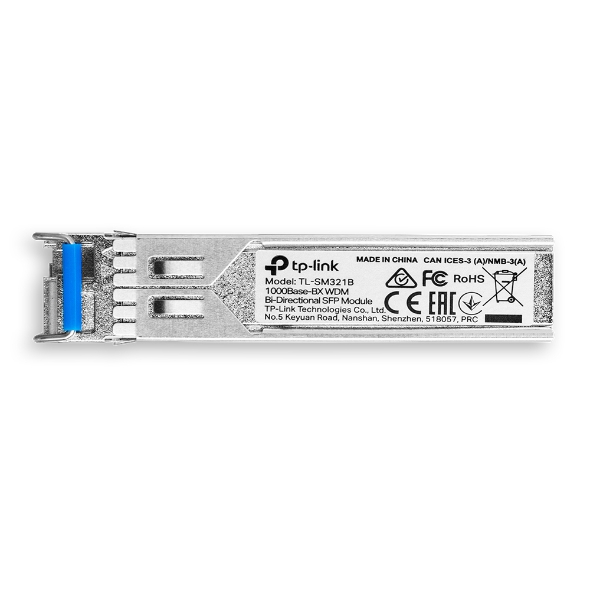

TP-Link - TL-SM321B - 1000BASE-BX WDM BI-DIRECTIONAL PERP SFP MODULE
Part number:
TL-SM321B
Price:
1000Base-BX WDM Bi-Directional SFP Module
Features:
- Up to 20 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A as a pair
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | • SFP Module TL-SM321B • Installation Guide |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1310 nm RX: 1550 nm |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cabel | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
Name
Description
Size
Downloads
File
Quick Installation Guide
0.2mb
