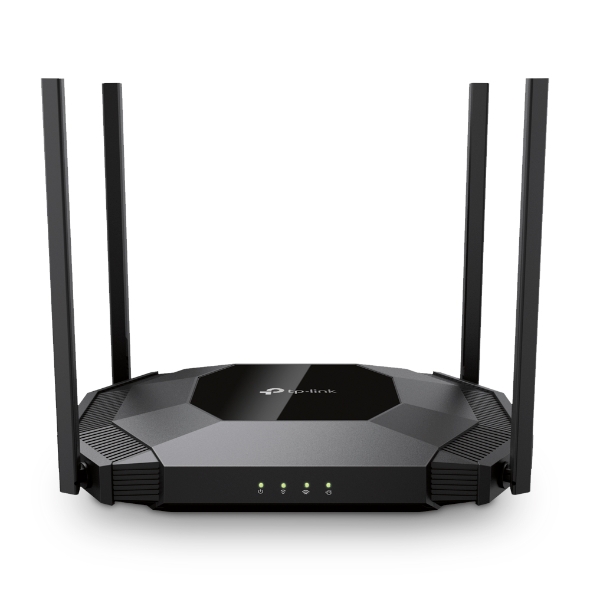

TP-Link - TL-WA3001 - AX3000 DUAL-BAND WI-FI 6 ACCESSWRLS POINT
Part number:
TL-WA3001
Price:
AX3000 Gigabit Wi-Fi 6 Access Point
Features:
- Gigabit WiFi 6 Speed for 4K Streaming – 3000 Mbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.
- Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
- Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
- Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
- Captive Portal – Offers a designed portal page for heightened security and marketing.
| HARDWARE FEATURES | |
| Interface | 1 Gigabit Port (Supports Passive PoE) |

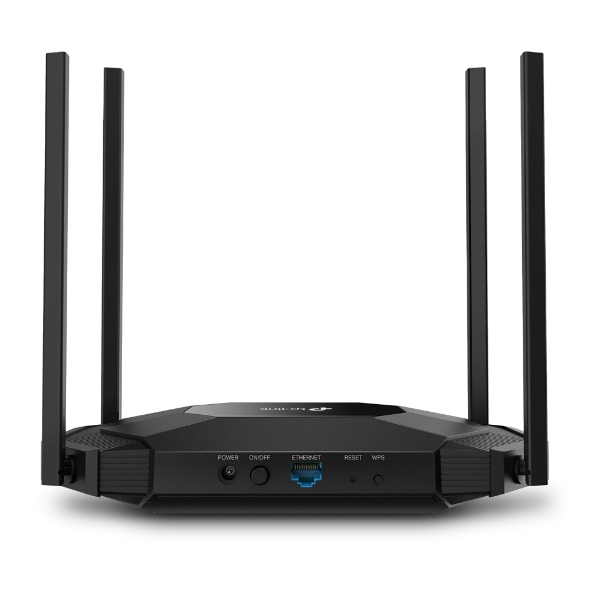

| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 48V/0.5A |
| Dimensions ( W x D x H ) | 9.4×6.5×1.7 in (240×165×43.6mm) |

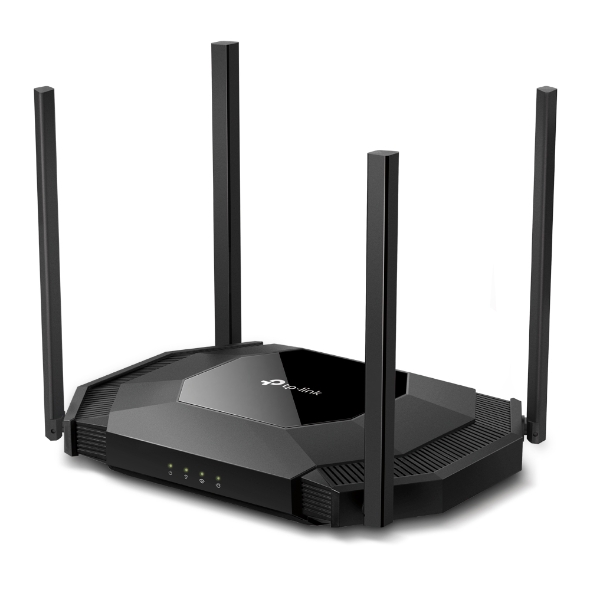

| Antenna Type | 4 Fixed High Performance Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Reception Sensitivity | 5 GHz: |
| 11ax HE20 MCS0:-97dBm, 11ac VHT20 MCS9:-73dBm, 11ax HE20 MCS11:-67dBm | |
| 11ax HE40 MCS0:-94dBm, 11ac VHT40 MCS9:-70dBm, 11ax HE40 MCS11:-63dBm | |
| 11ax HE80 MCS0:-91dBm, 11ac VHT80 MCS9:-66dBm, 11ax HE80 MCS11:-60dBm | |
| 11ac VHT160 MCS9:-63dBm, 11ax HE160 MCS11:-58dBm | |
| 2.4 GHz: | |
| 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS8:-73dBm, 11ax HE20 MCS11:-65dBm | |
| 11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS9:-69dBm, 11ax HE40 MCS11:-62dBm | |
| Transmit Power | FCC: <23dBm(2.4GHz), <22dBm(5GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control |
| Wireless Security | WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions |
| SOFTWARE FEATURES | |
| Quality of Service | WMM |
| Operating Modes | Access Point, Range Extender, Client, Multi-SSID |
| System Tools | SNMP, Ping Watchdog |
| DHCP | Server, DHCP Client List |
| Protocols | IPv4, IPv6 |
| OTHERS | |
| Certification | FCC, RoHS |

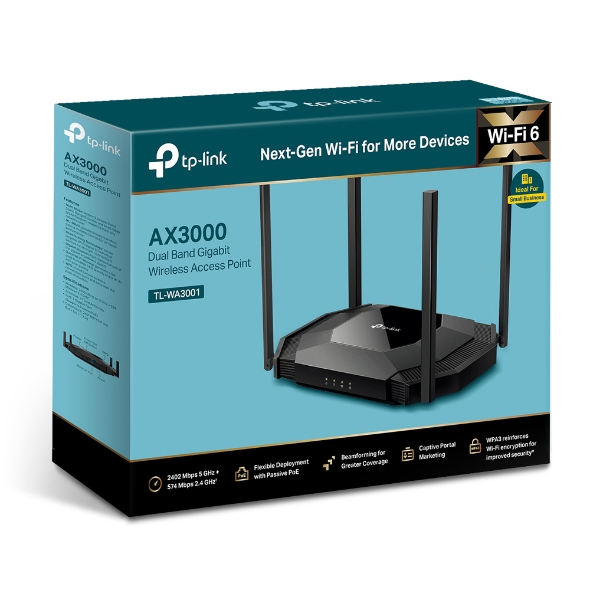

| Package Contents | Wireless Access Point TL-WA3001 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| PoE Power Injector | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or |
| other JavaScript-enabled browser | |
| Environment | Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) |
| Operating Humidity: 10%~90% non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
1.3mb
File
Quick Installation Guide
0.3mb
