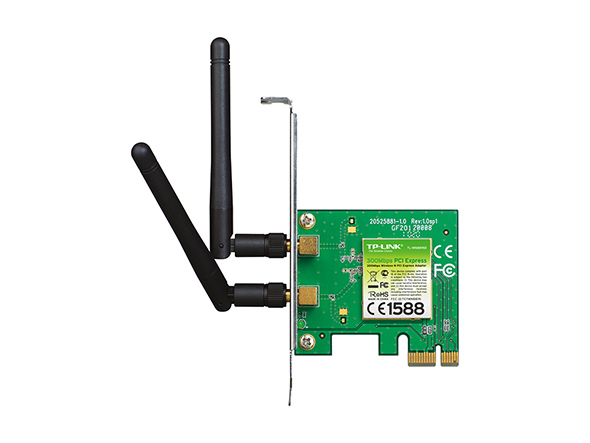

TP-Link - TL-WN881ND - 11BGN 300MB 2.4GHZ WRLS WPA/WEP WL N 2DETACHABLE ANTENNAS
Part number:
TL-WN881ND
Price:
300Mbps Wireless N PCI Express Adapter
Features:
- Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls*
- MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
- Easily setup a highly secured wireless link with WPS (Wi-Fi Protected Setup)
| HARDWARE FEATURES | |
|---|---|
| Interface | PCI Express(x1) |
| Dimensions ( W x D x H ) | 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm) |
| Antenna Type | Detachable Omni Directional (RP-SMA) |
| Antenna Gain | 2dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -73dBm@10% PER 54M: -73dBm@10% PER 11M: -89dBm@8% PER 6M: -87dBm@10% PER 1M: -90dBm@8% PER |
| Transmit Power | <20dBm(EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Wireless Adapter 2x Detachable Omni directional antenna Resource CD Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7，Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Quick Installation Guide
0.2mb
File
Wiress Adapter
0.2mb
