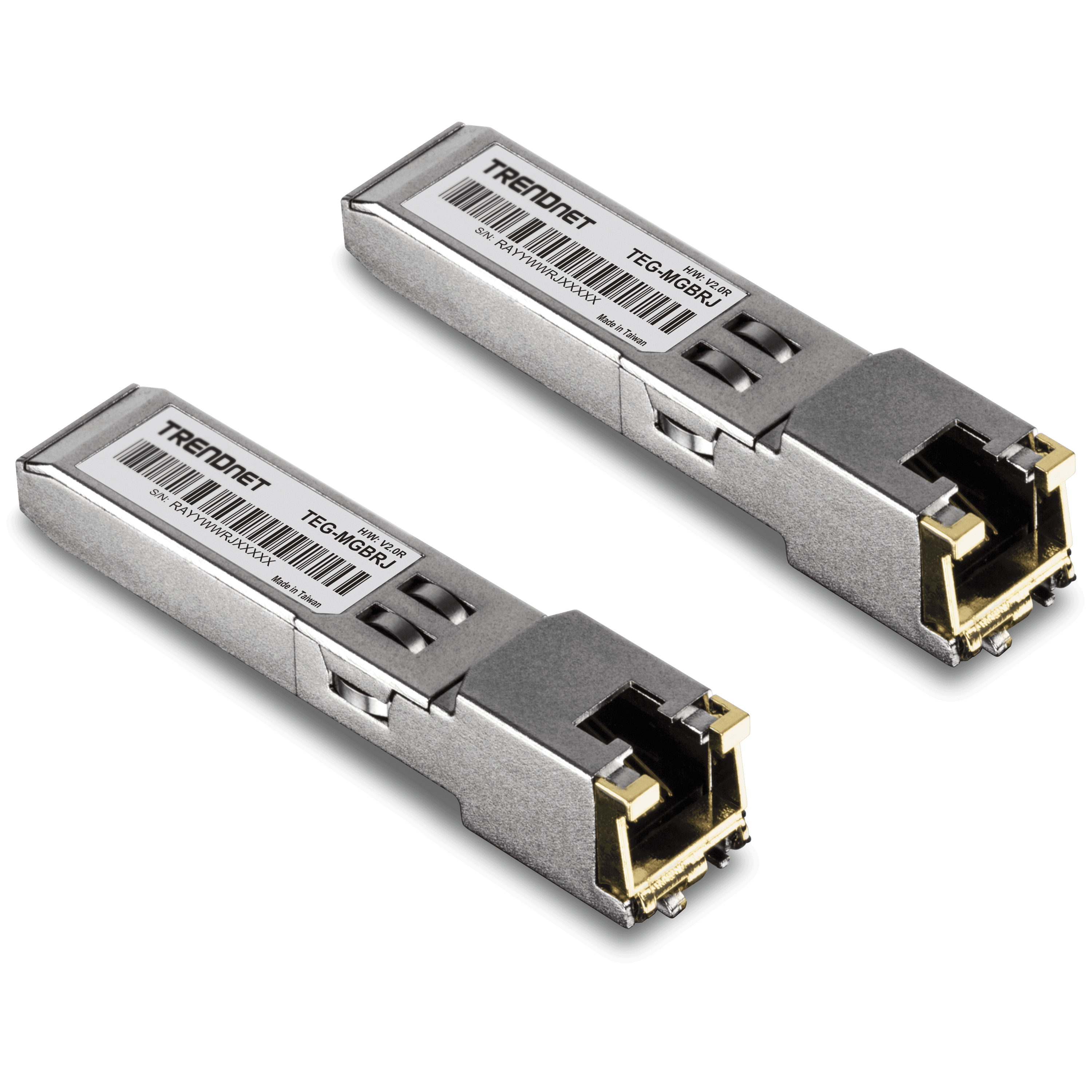

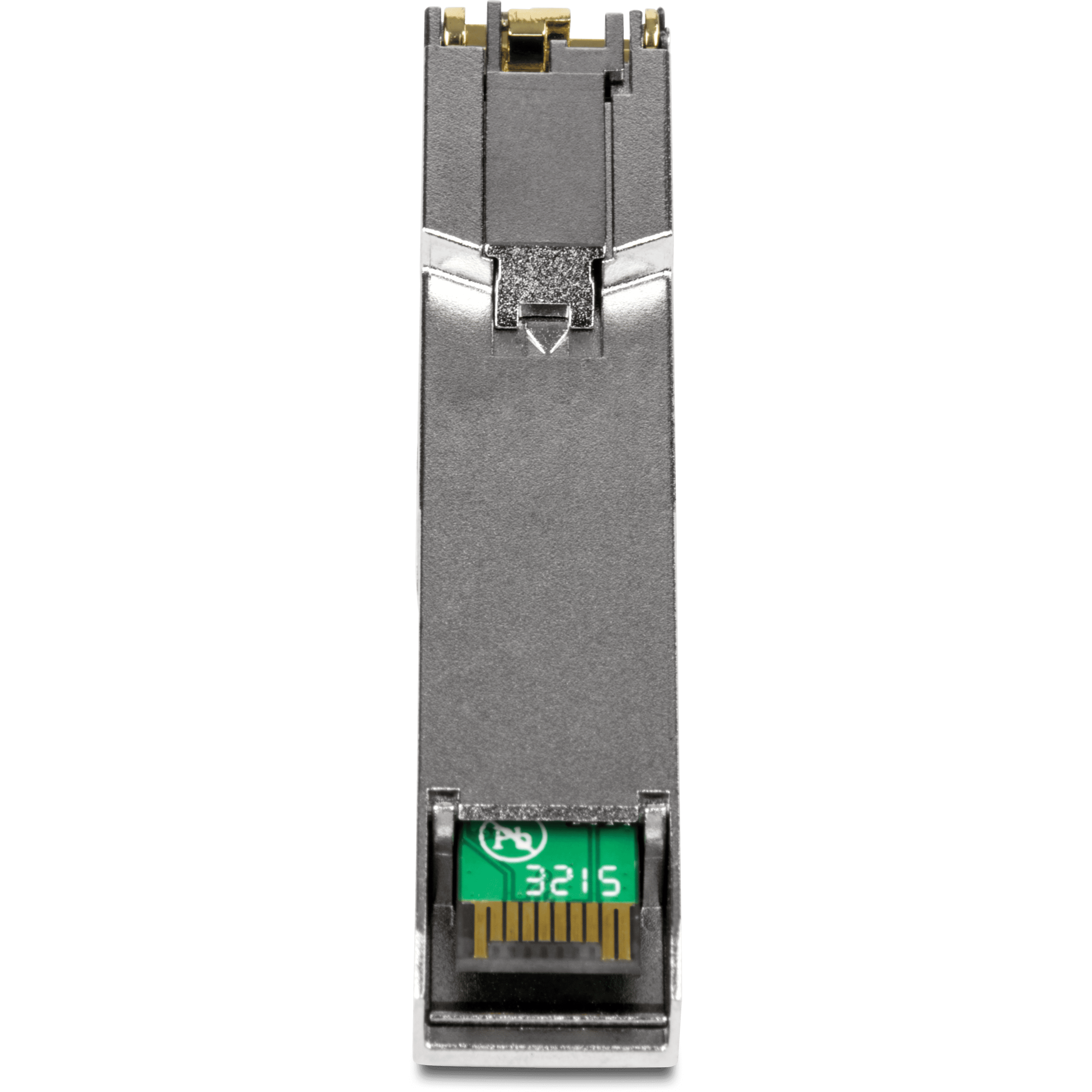

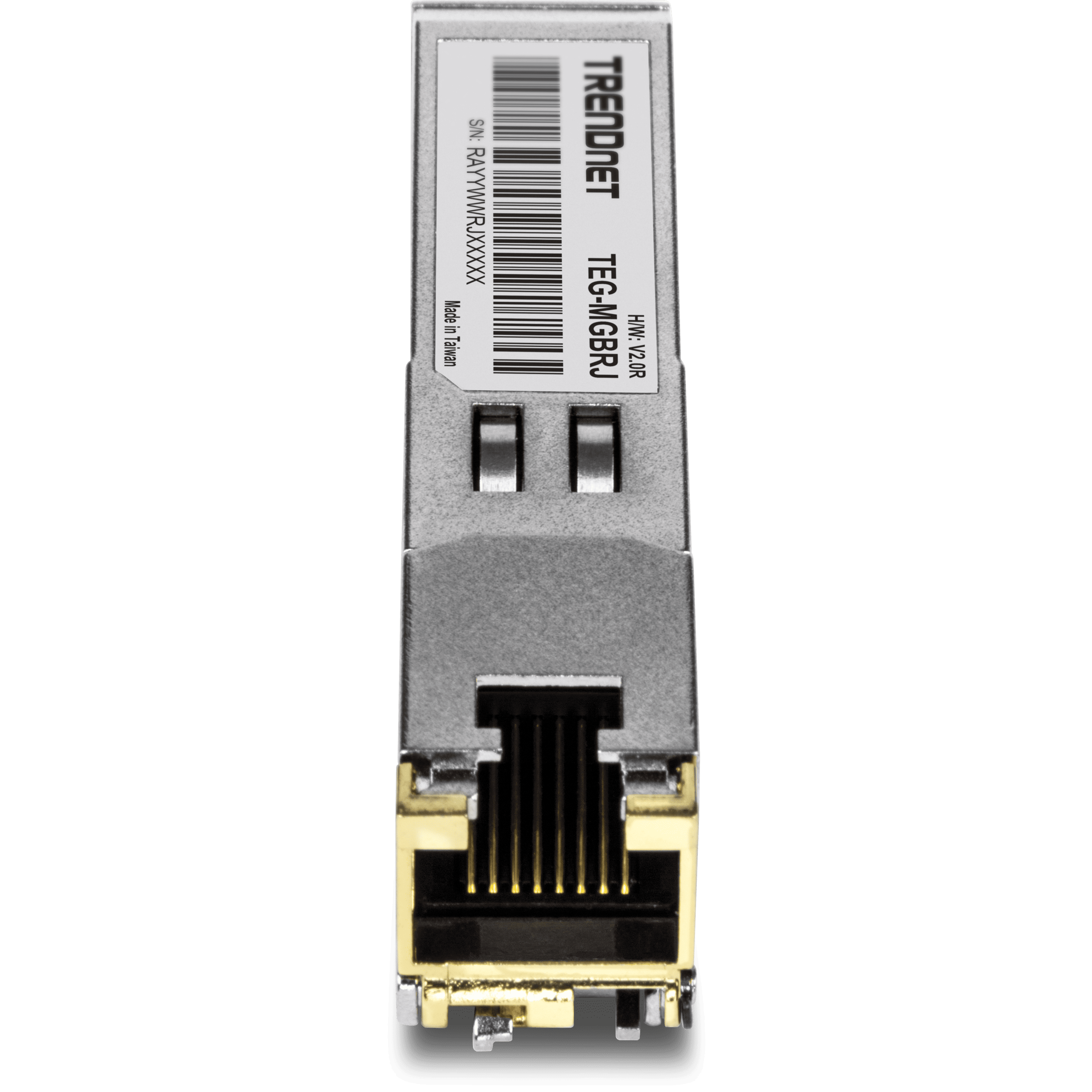

Trendnet - TEG-MGBRJ/2 - Two-Pack 1000BASE-T RJ45 Copper SFP Module
Part number:
Price:
- • Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
- • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
- • Supports data rates of up to 1.25Gbps
- • Transmission distance of up to 100m (328 ft.)
- • Hot-Pluggable
- • Low power consumption
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.3 • IEEE 802.3z • IEEE 802.3ab |
| Device Interface | • SFP MSA Compliant • RJ45 connector • Hot pluggable |
| Data Transfer Rate | Up to 1.25Gbps |
| Distance | 100m (328 ft.) |
| Housing | Metal enclosure |
| Power (per unit) | Max. Consumption: 0.9W |
| Operating Temperature | 0° – 70° C (32° – 158° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions (per unit) | 68 x 13 x 13 mm (2.67 x 0.5 x 0.5 in.) |
| Weight | 22g (0.8 oz.) |
| Certifications | CE, FCC |
| Warranty | Lifetime Warranty |
| Package Contents | • 2 x TEG-MGBRJ |
Name
Description
Size
Downloads
File
TEG-MGBRJ/2 - Two-Pack 1000BASE-T RJ45 Copper SFP Module - Datasheet.pdf
0.4mb
TRENDnet’s 2-Pack 1000BASE-T RJ45 Copper SFP Module TEG-MGBRJ/2 converts a standard SFP port into an RJ45 Gigabit port, providing additional copper connectivity. These SFP modules are compatible with standard SFP ports, which are commonly found in network switches and fibre media converters. Reduce equipment costs by repurposing a switch’s unused SFP ports for copper connectivity.
