- • 8 x 2.5G RJ45 ports
- • Compatible with existing Cat5e or better cabling
- • 40Gps switching capacity
- • Backwards compatible with 100/1000Mbps devices
- • Fanless design eliminates noise
- • Wall mountable for installation flexibility
- • IEEE 802.3bz (2.5G) compliant
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3bz • IEEE 802.3az • IEEE 802.3x |
| Device Interface | • 8 x 2.5G RJ45 ports (100M/1G/2.5G) • LED indicators |
| Switching Capacity | 40Gbps |
| RAM Buffer | 1MB |
| MAC Address Table | 16K entries |
| Jumbo Frames | 10KB |
| Forwarding Rate | 29.76Mpps (64-byte packet size) |
| Power | • Input: 90 – 264V AC, 47/63 Hz, 0.5A • Output: 12V DC, 1A external power adapter • Max. consumption: 6.85W |
| Fan/Acoustics | Fanless design |
| MTBF | 904,717 hours @ 25° C |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions (L x W x H) | 155 x 85 x 26mm (6 x 3.3 x 1 in.) |
| Weight | 332g (11.7 oz.) |
| Certifications | FCC, CE, LVD |
| Warranty | Lifetime Warranty |
| Package Contents | • TEG-S381 • Power adapter (12V DC, 1A) |
Name
Description
Size
Downloads
File
TEG-S381 - 8-Port 2.5G Switch - Datasheet.pdf
0.2mb

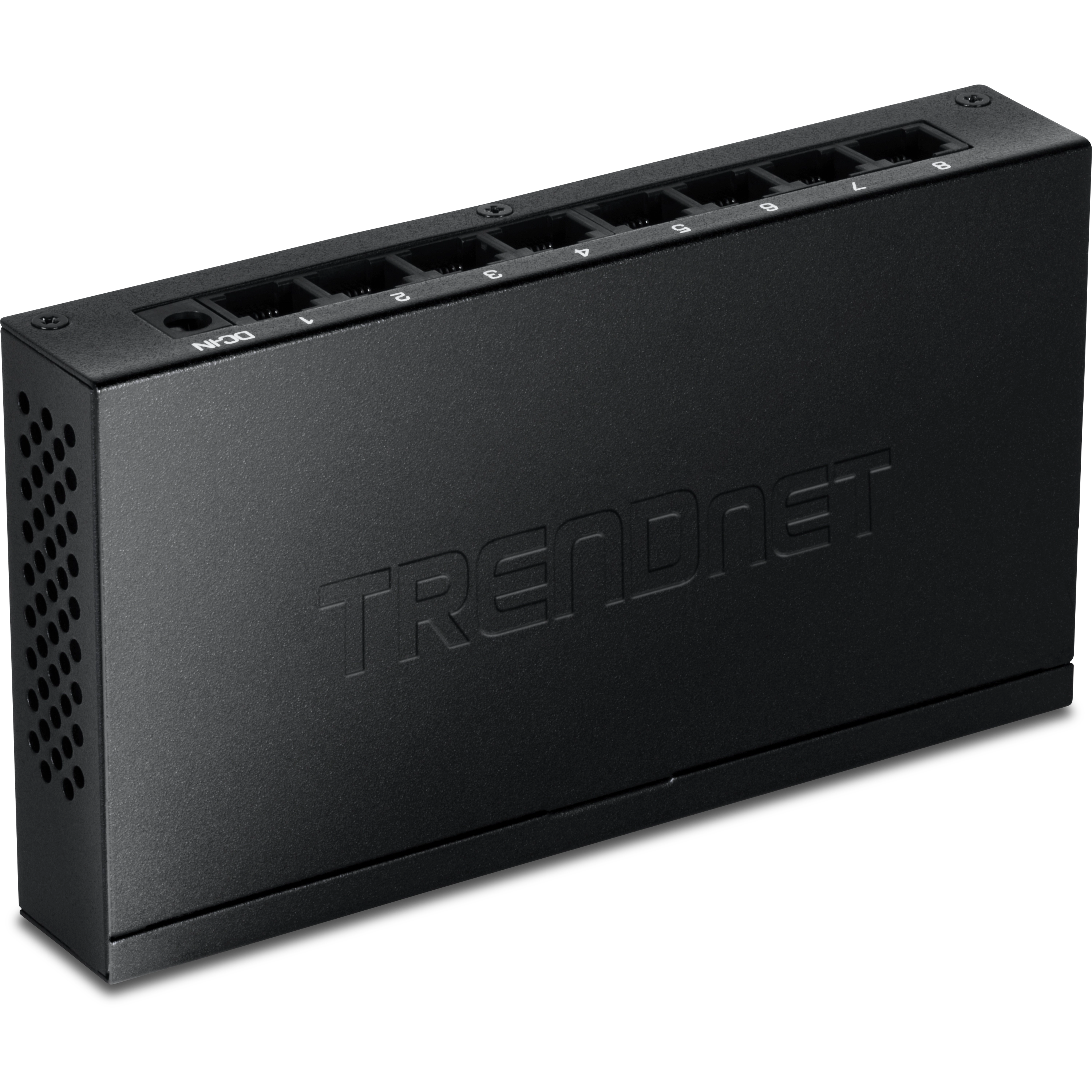

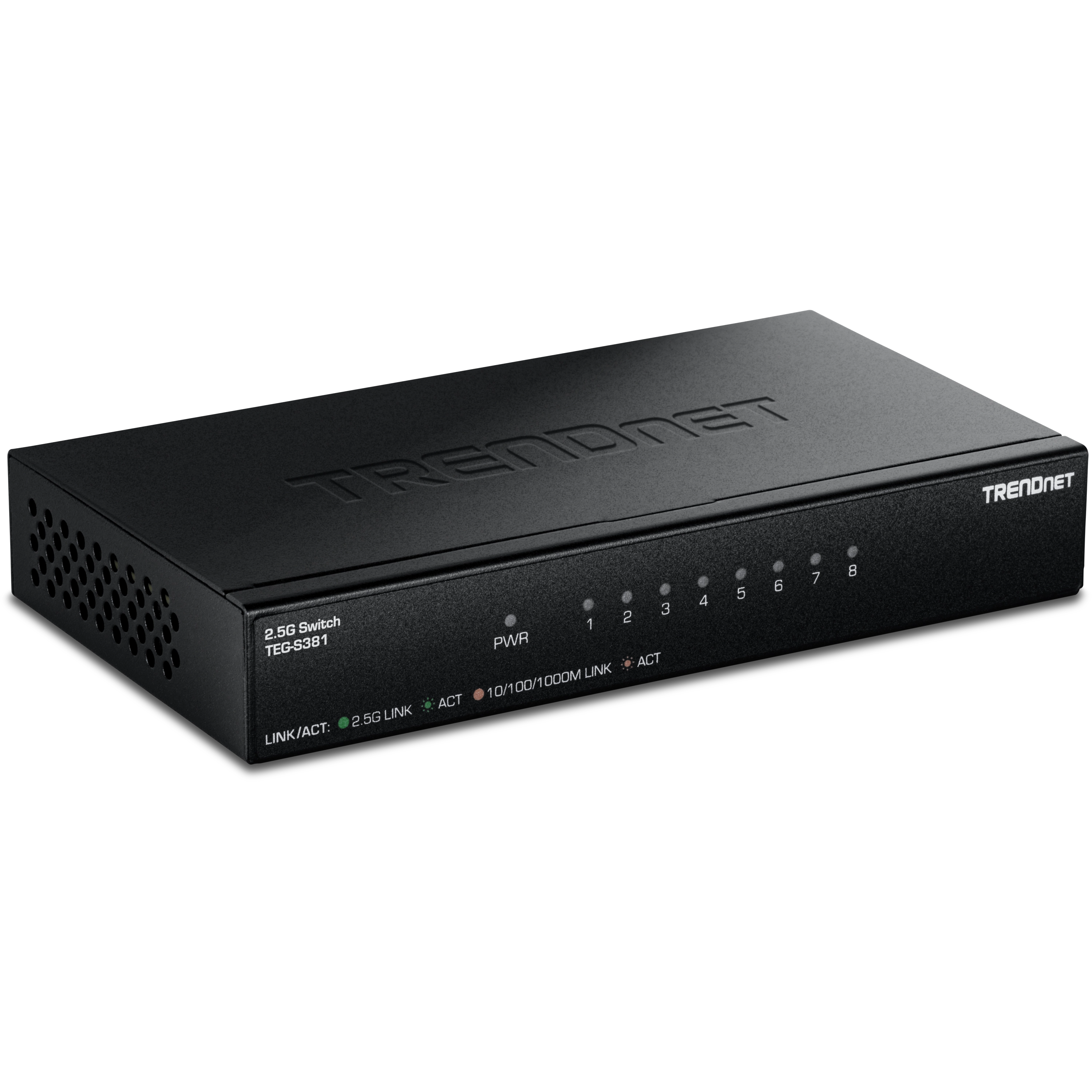

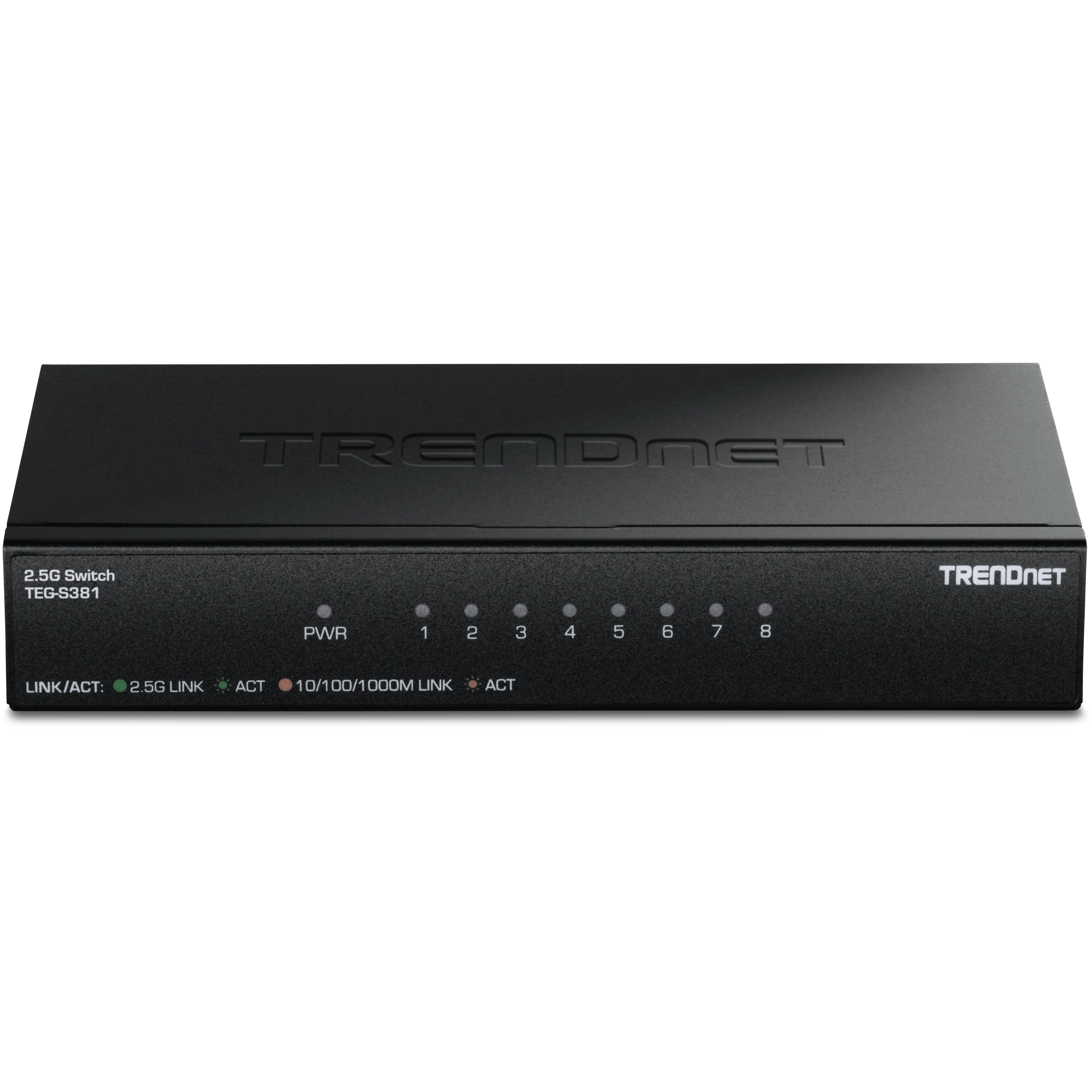

This 2.5G network switch is equipped with 2.5GBASE-T RJ45 ports, providing ultra-fast speeds of up to 2.5 Gbps over your existing Cat5e or better cabling. This high-speed switch features a durable metal enclosure and can be wall-mounted for flexible setup. Its fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G switch is a cost-effective way to increase your network’s throughput.
