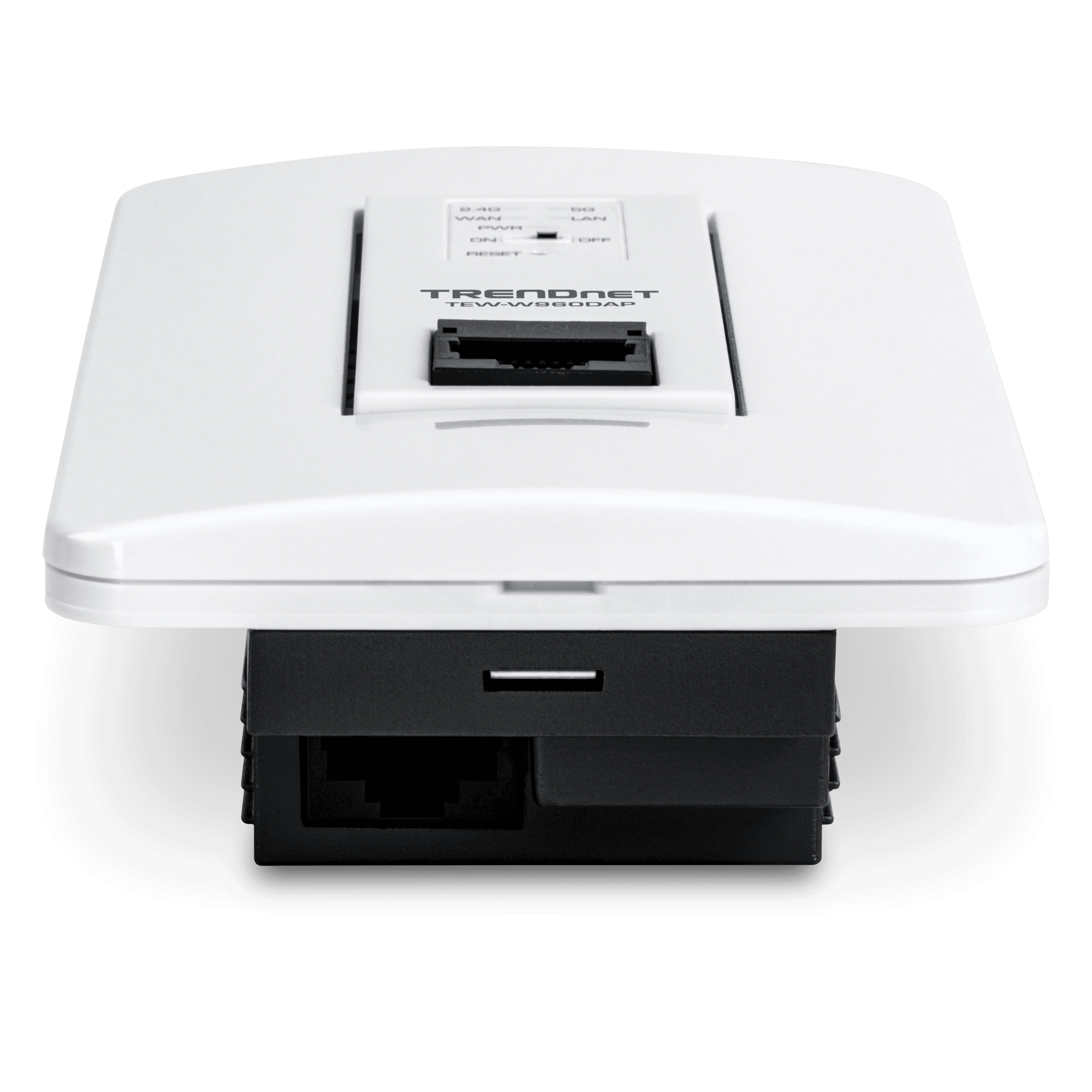

Trendnet - TEW-W960DAP - AX1800 Dual Band WiFi 6 PoE In-Wall Access Point
Part number:
Price:
- • High performance AX1800 PoE access point
- • AX1800 Dual Band: 1201Mbps (5GHz) + 573Mbps (2.4GHz) bands
- • Two concurrent WiFi bands maximize device networking speeds
- • OFDMA and MU-MIMO technology boosts performance in a busy environment
- • Supports up to WPA3 encryption
- • 1 x Gigabit PoE LAN port, 1 x Gigabit LAN port
- • Discreet design blends into most environments
- • Includes wall plates for 1 gang installation
- • Remote cloud management with TRENDnet Hive (Additional fee applies)
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3af • IEEE 802.1Q • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11k** • IEEE 802.11n (up to 300Mbps)* • IEEE 802.11r** • IEEE 802.11v • IEEE 802.11ac (up to 867Mbps)* • IEEE 802.11ax (up to 1201Mbps on 5GHz, up to 573Mbps on 2.4GHz)* |
| Hardware Interface | • 1 x 802.3af PoE Gigabit LAN port (power input) • 1 x Gigabit LAN port (10/100/1000Mbps) • LED indicator • LED on/off switch • Reset button |
| Features | • MU-MIMO • Band steering • 802.1Q VLAN assignment per SSID • IPv4 static/DHCP address assignment • UPnP/Bonjour |
| Operation Modes | Access Point |
| Management/Monitoring | • Web based management (HTTP/HTTPS) • Command Line Interface (SSH) • SNMP v2c/v3 • Spanning Tree Protocol (STP) • Event logging • Ping test • Traceroute • Schedule WiFi radio enable/disable • Ping watchdog/gateway connection monitor • Reboot & scheduled automatic reboot • Channel utilization scan |
| Hive Cloud Management*** | • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, WiFi settings, and LED control through cloud management |
| Access Control | • Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal) • MAC filter with scheduling • Maximum client limit • Client isolation |
| QoS | Bandwidth control per SSID |
| SSID | Up to 8 SSIDs per wireless band (16 total) |
| Frequency | • 2.4GHz: 2.412 – 2.472GHz • 5GHz: 5.180 – 5.825GHz |
| Wireless Channels | • 2.4GHz: FCC: 1–11 • 5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, and 165 |
| Modulation | • DBPSK/DQPSK/CCK for DSSS technique • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique |
| Antenna Gain | • 2.4GHz: 2 x 2 dBi internal • 5GHz: 2 x 4 dBi internal |
| Wireless Output Power | • 802.11b/g/n/ac/ax (2.4GHz): FCC: 13 dBm (max.) • 802.11a/n/ac/ax (5GHz): FCC: 13 dBm (max.) |
| Receiving Sensitivity | • 802.11a: -93 dBm (typical) @ 54Mbps • 802.11b: -98 dBm (typical) @ 11Mbps • 802.11g: -94 dBm (typical) @ 54Mbps • 802.11n (2.4 GHz): -94 dBm (typical) @ 300Mbps • 802.11n (5 GHz): -92 dBm (typical) @ 300Mbps • 802.11ac: -93 dBm (typical) @ 867Mbps • 802.11ax (2.4GHz): -94 dBm (typical) @ 573Mbps • 802.11ax (5GHz): -93 dBm (typical) @ 1201Mbps |
| Power | • IEEE 802.3af Type 2 PoE PD Class 4 • Max. consumption: 8.54W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 90% non-condensing |
| Certifications | FCC |
| Dimensions | 68 x 40 x 42mm (2.68 x 1.57 x 1.65 in.) (Unit with plate) |
| Weight | 118g (4.16 oz.) (Unit with plate) |
| Warranty | 3-year |
| Package Contents | • TEW-W960DAP • Wall plates |
Name
Description
Size
Downloads
File
TEW-W960DAP - AX1800 Dual Band WiFi 6 PoE In-Wall Access Point - Datasheet.pdf
0.2mb
TRENDnet's discreet AX1800 Dual Band Wi-Fi 6 PoE in-wall access point model TEW-W960DAP features two concurrent Wi-Fi bands to maximise networking speeds using the latest Wi-Fi 6 technology. These two separate, high-speed Wi-Fi 6 bands provide speeds of up to 1201 Mbps on the 5 GHz band and 573 Mbps on the 2.4 GHz band. The in-wall access point also features a gigabit pass-through port.

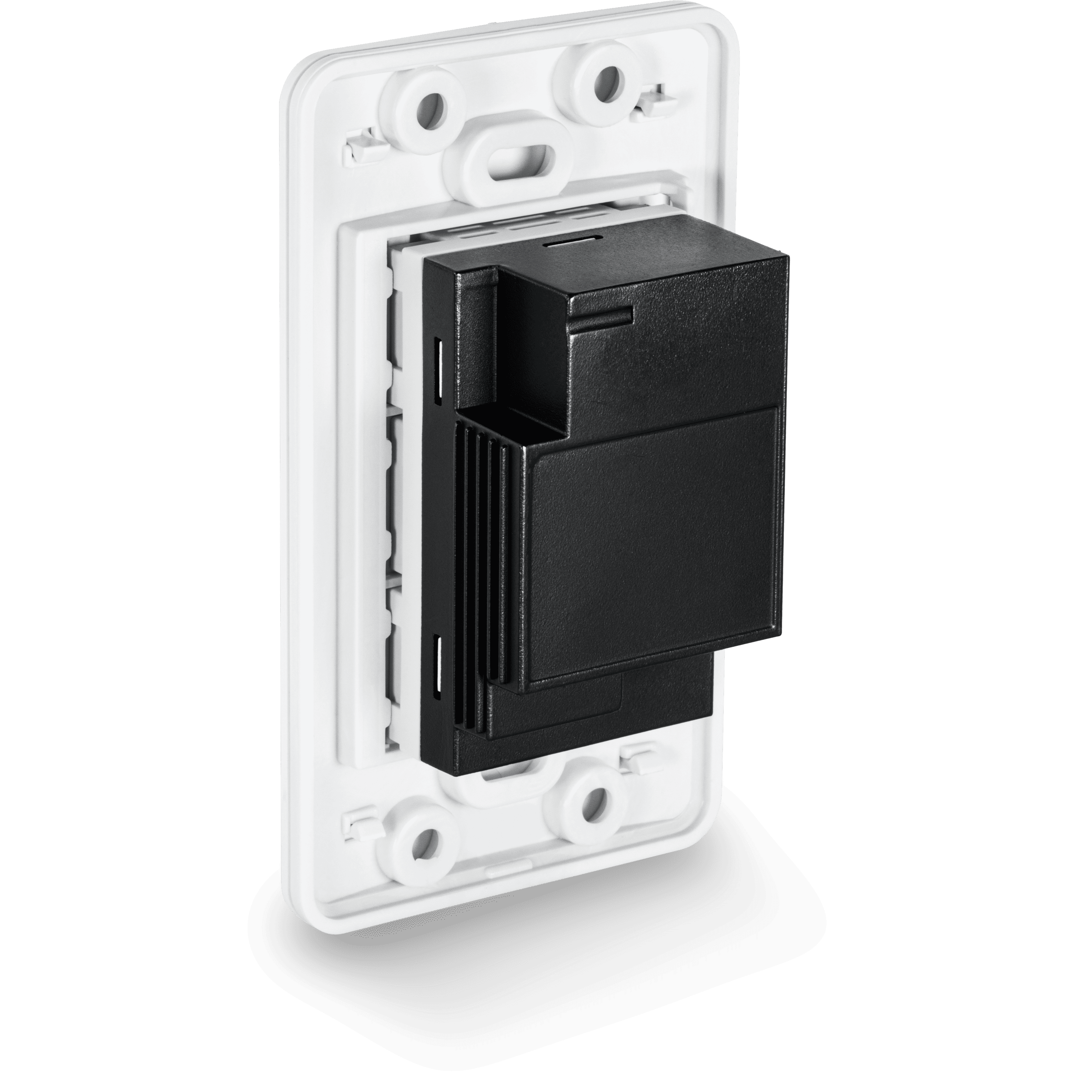

This in-wall WiFi AP supports faster speeds thanks to 1024-QAM, OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, thereby improving real-time Wi-Fi performance when multiple devices access the network. This in-wall wireless access point features access control, bandwidth control and band steering. Its discreet housing design allows it to be installed in a standard one-gang box with the included wall plates for easy installation.
