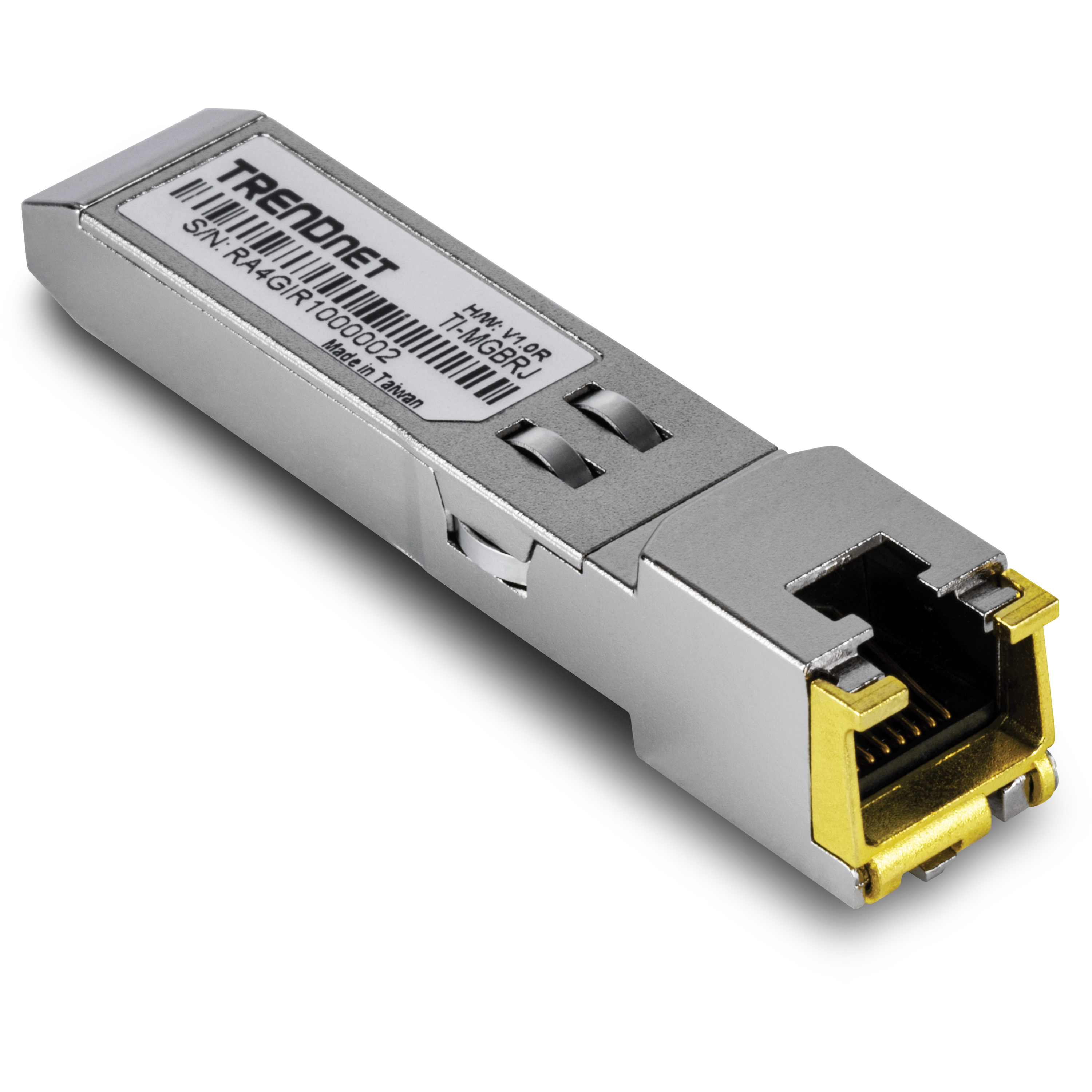

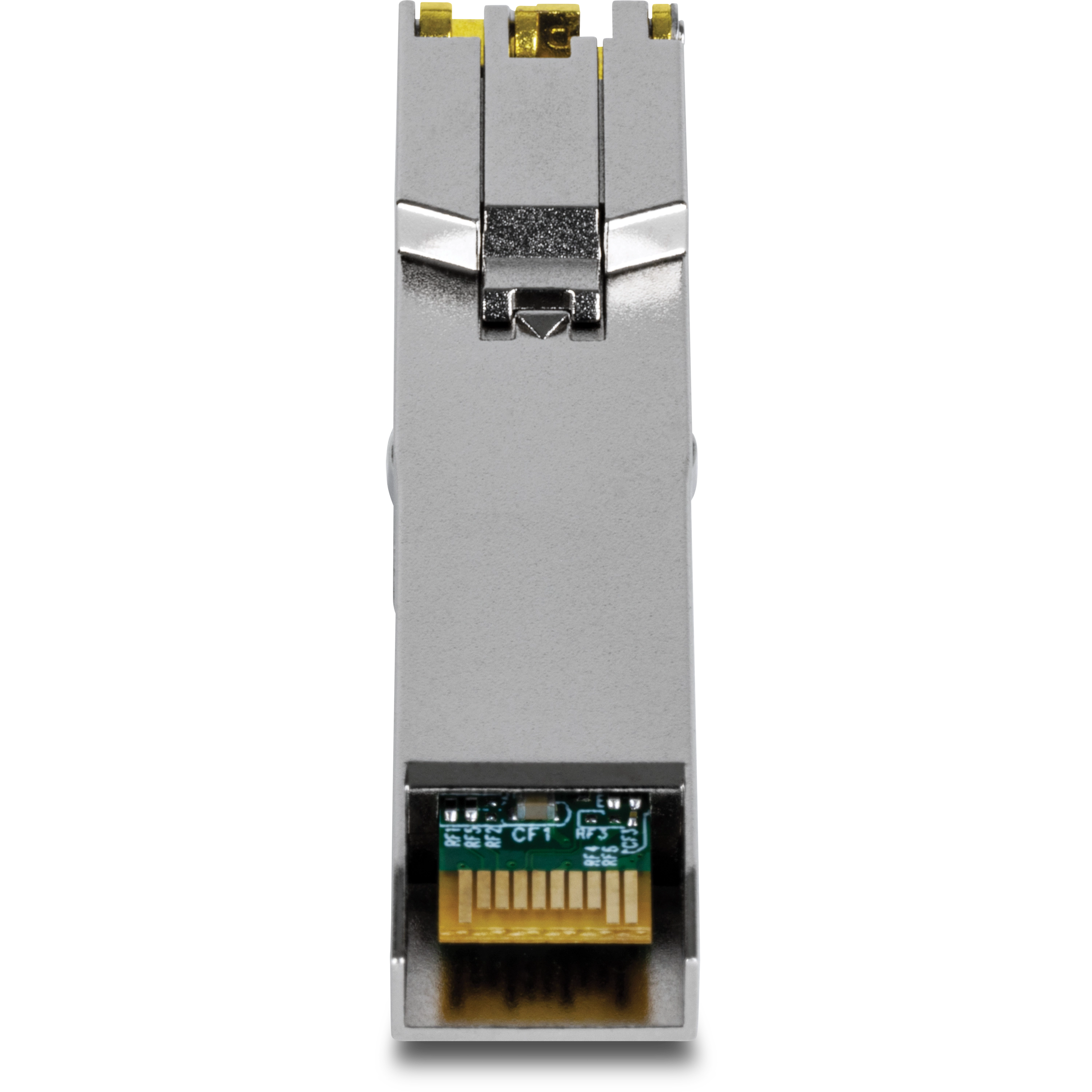

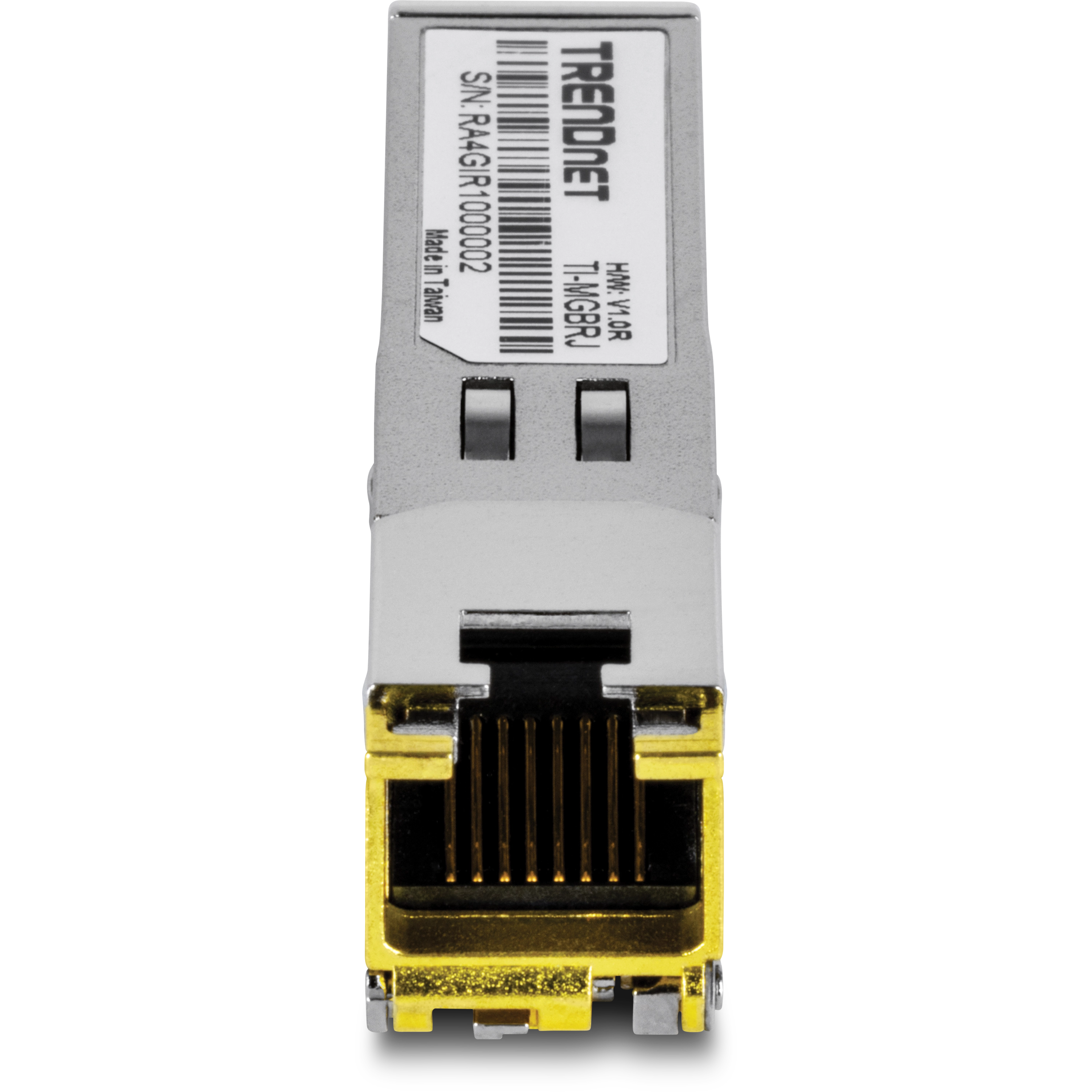

Trendnet - TI-MGBRJ - 1000BASE-T Industrial SFP RJ45 Copper Module
Part number:
Price:
- • Supports data rates of up to 1.25Gbps
- • Transmission distance of up to 100m (328 ft.)
- • Extreme operating temperature range of -40° – 85° C (-40° - 185° F)
- • RJ45 connector
- • Hot-Pluggable
- • Low power consumption
- • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
- • Compliant with IEEE 802.3ab Gigabit Ethernet
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty*
| Standards | • IEEE 802.3 • IEEE 802.3ab |
| Device Interface | • SFP MSA compliant • RJ45 connector |
| Data Transfer Rate | Up to 1.25Gbps |
| Distance | 1Gbps up to 100m (328 ft.) with Cat5 UTP cabling or better |
| Power | Max. consumption: 1.5W |
| Operating Temperature | -40° – 85° C (-40° – 185° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 68.5 x 13.75 x 13.8mm (2.69 x 0.54 x 0.55 in.) |
| Weight | 22g (0.78 oz.) |
| Certifications | CE, FCC |
| Warranty | Lifetime Warranty* |
| Package Contents | TI-MGBRJ |
Name
Description
Size
Downloads
File
TI-MGBRJ - 1000BASE-T Industrial SFP RJ45 Copper Module - Datasheet.pdf
0.3mb
The TRENDnet 1000BASE-T Industrial SFP RJ45 Copper Module TI-MGBRJ converts a standard SFP port into a gigabit RJ45 port, providing additional high-speed copper connectivity. This industrial copper SFP gigabit module is compatible with standard SFP ports commonly found in network switches and fibre media converters. Designed to operate within an extreme temperature range of -40° – 85° C (-40° – 185° F), the TI-MGBRJ industrial copper SFP is well suited to industrial environments. Reduce equipment costs by repurposing a switch's unused SFP port to provide reliable copper connectivity with TRENDnet's gigabit industrial copper SFP module.
