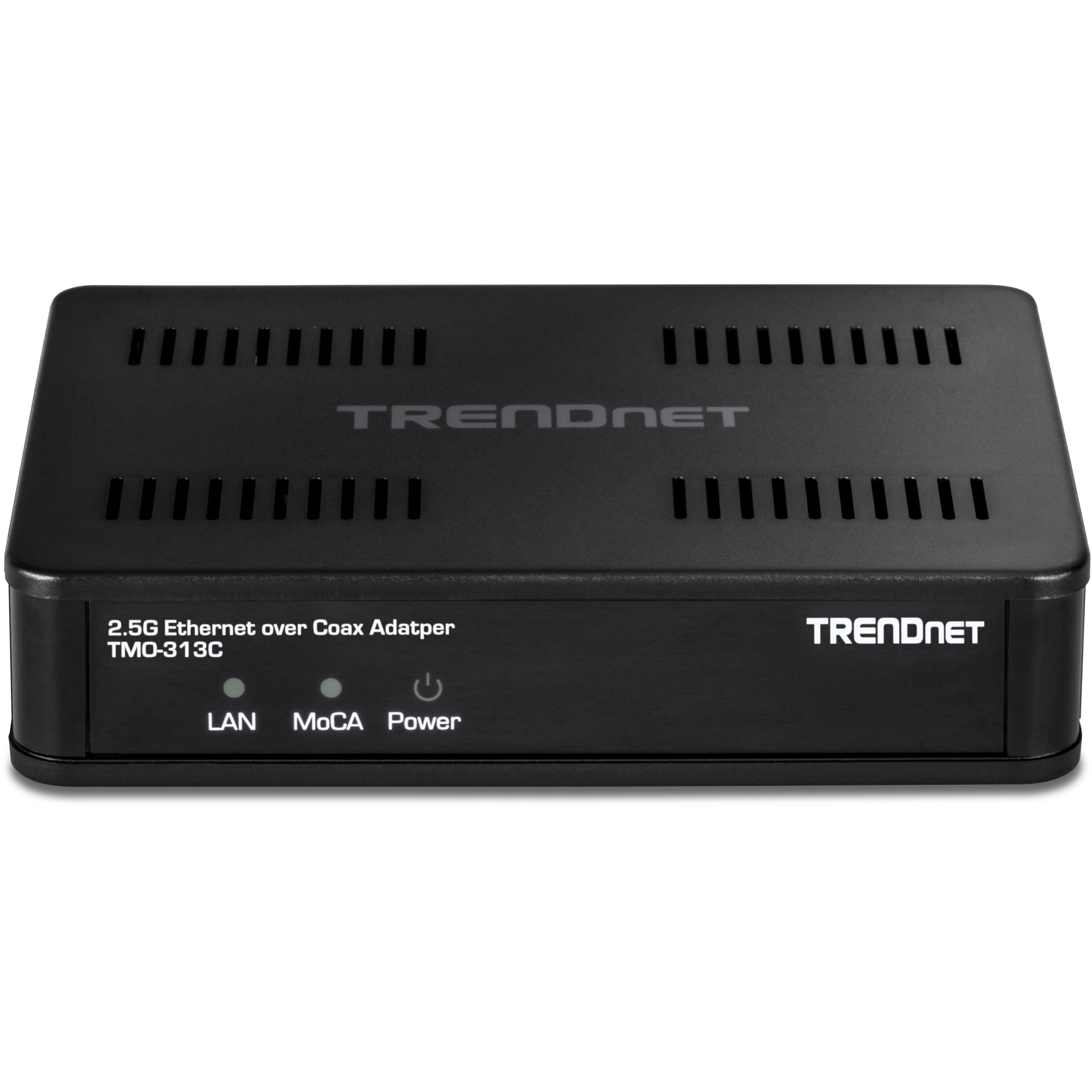

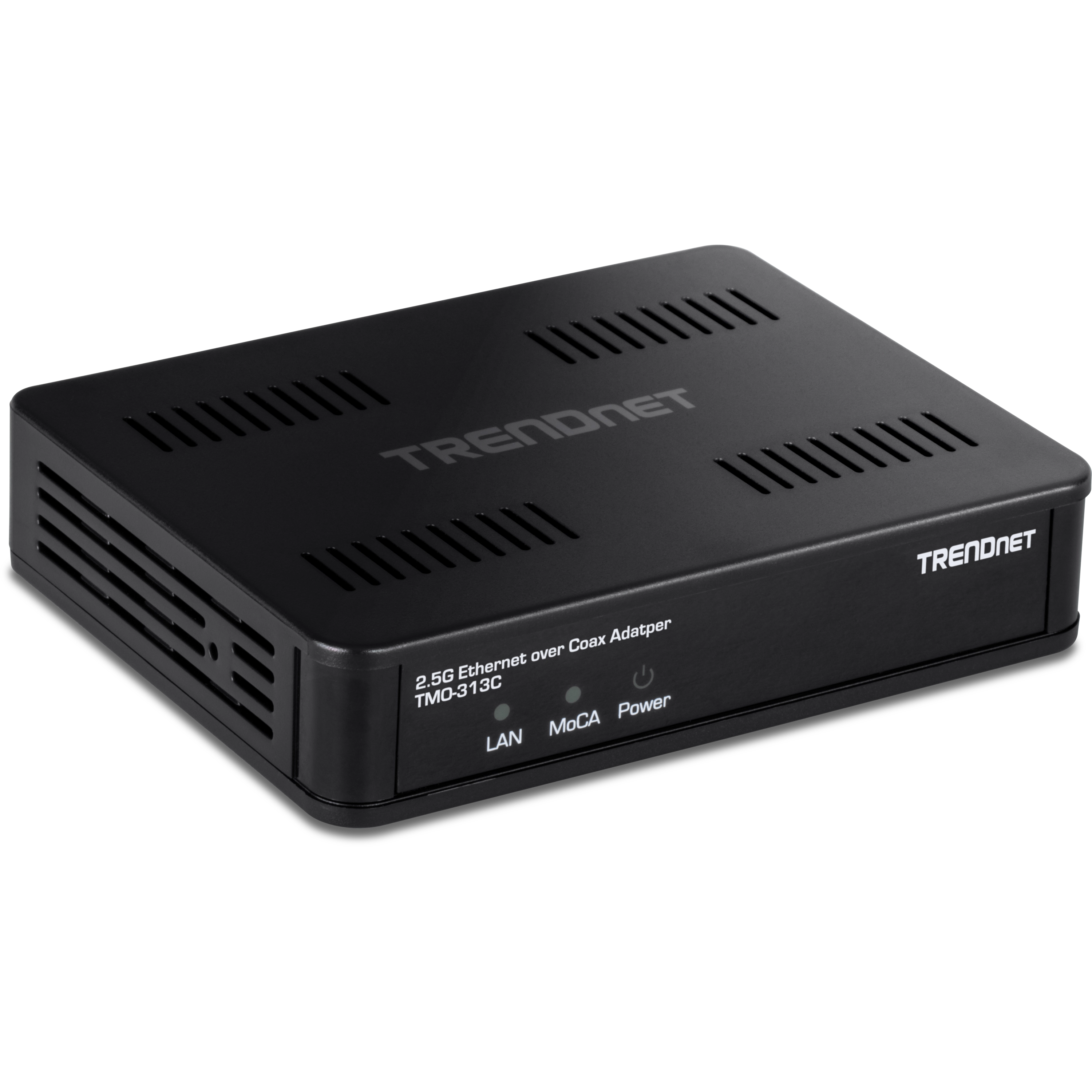

Trendnet - TMO-313C - 2.5Gbps Ethernet over Coax Adapter
Part number:
Price:
- • Includes one MoCA 2.5Gbps Ethernet over Coax Adapter (TMO-313C)
- • Supports MoCA® 2.5 over coaxial cables
- • 1 x MoCA Coax: F-Type Female coax input
- • 1 x 2.5Gbps RJ45 LAN port
- • Backward compatible with MoCA 2.0/1.1/1.0 standards
- • Supports up to 16 nodes on one network
- • Bonded MoCA 2.5 channels provide a net throughput of up to 2.5Gbps
- • Designed to connect Ethernet devices to an existing MoCA compliant network
- • Not compatible with DirecTV, DISH Network, AT&T U-verse, or other non-MoCA compliant subscription services
- • NDAA / TAA compliant (U.S. and Canada only)
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3bz • MoCA 1.1/1.0 • MoCA 2.0 • MoCA 2.5 |

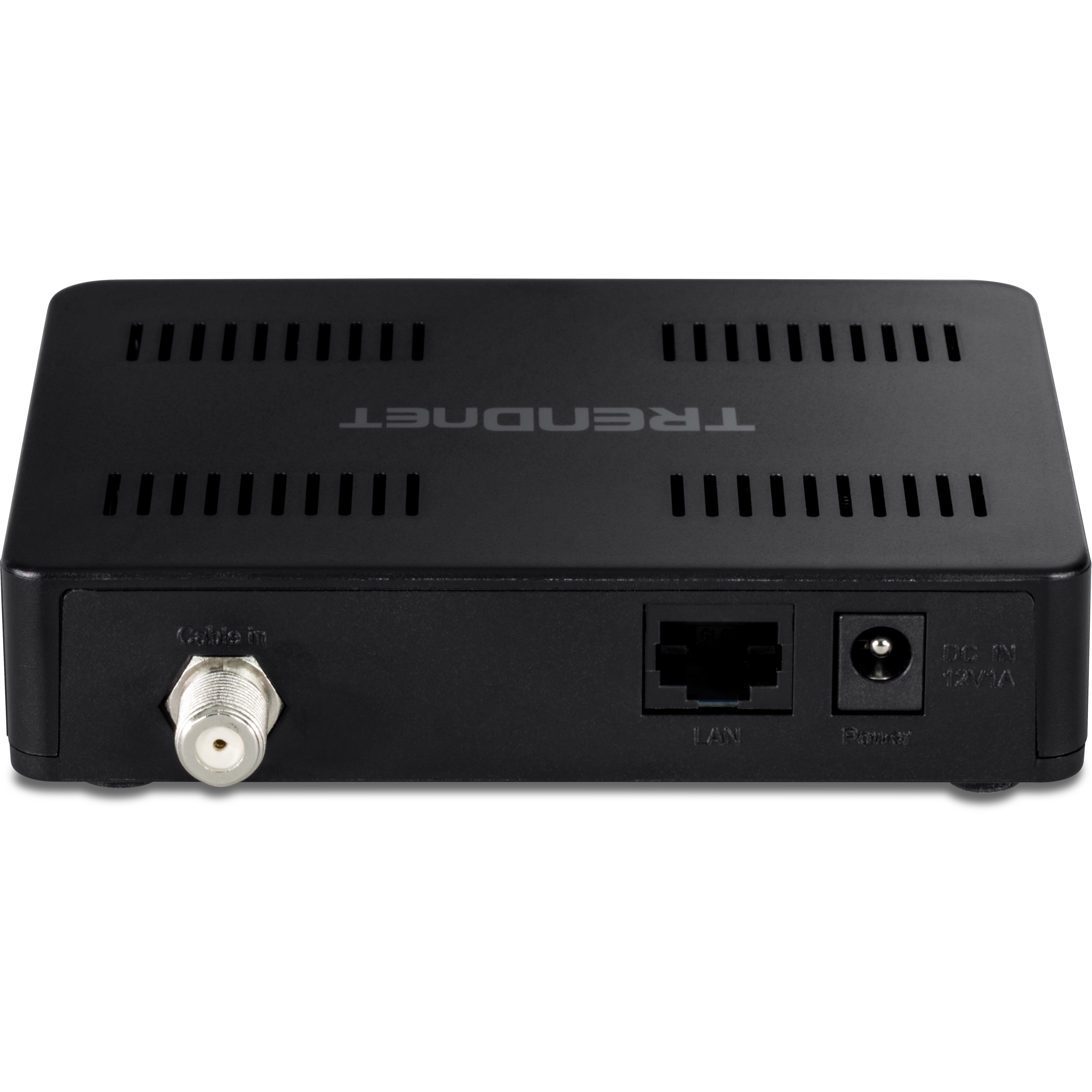

| Device Interface | • 1 x Coax cable in port (female) (up to 2.5Gbps) • 1 x 2.5Gbps RJ45 LAN port (10Mbps/100Mbps/1000Mbps/2.5Gbps) • Reset button • LED indicators • Power jack |
| Data Transfer Rate | • MoCA 1.1: Single channel up to 225Mbps • MoCA 2.0: Single channel up to 600Mbps • MoCA 2.0: Two bonded channel up to 1.2Gbps • MoCA 2.5: Five bonded channel up to 3Gbps • MoCA MAC rate: • 16-node single channel: up to 400Mbps • 16-node 2 channel bonding: up to 800Mbps • 16-node 5 channel bonding: up to 2.5Gbps |
| MoCA Radio | • Max. 16 MoCA 1.1 or 2.0/2.5 devices • Max. 8 MoCA 1.0 devices • Max. transmit power: +3 dBm typical • 1.1/1.0 channels: 8 with 50MHz bandwidth • 2.0 channels: 10 with 100MHz single channel, 225Mhz bonded channel • 2.5 channels: 5 with 100MHz bonded channel • 2.0/2.5 Edge-to-edge frequency: 1125-1675MHz • Default channel: 1150MHz |
| Compatible | • Frontier/Verizon FiOS • Spectrum • Cox Communications • Comcast • Devices with Ethernet port |
| Not Compatible | • DirecTV • DISH Network • Satellite TV • AT&T U-verse |
| Power | • Input: 100 – 240V AC, 50/60Hz, 0.5A • Output: 12V DC, 1A external power adapter • Max. consumption: 12W |
| Operating Temperature | 0° – 40° C (32° – 104° F) |
| Operating Humidity | Max. 85% non-condensing |
| Dimensions | 112 x 88 x 25mm (4.4 x 3.5 x 1 in.) |
| Weight | 116g (4 oz.) |
| Certifications | FCC |
| Warranty | 3-year |
| Package Contents | • TMO-313C • Power adapter (12V, 1A) |
Name
Description
Size
Downloads
File
TMO-313C - 2.5Gbps Ethernet over Coax Adapter - Datasheet.pdf
0.2mb
File
Lineart_QIG_TMO-313C.pdf
1.4mb
TRENDnet’s MoCA 2.5 Gbps Ethernet over Coax Adapter model TMO-313C uses your existing coaxial cables to extend a high-speed, building-wide triple play network throughout your home or office. These compact adapters are designed to support MoCA 2.5 deployment for digital TV, high-speed internet and VoIP single-access subscription services. They are compliant with the Multimedia over Coax Alliance (MoCA 2.5) standard and feature improved packet error rate technology, delivering consistent voice and video bandwidth with lowered latency.
