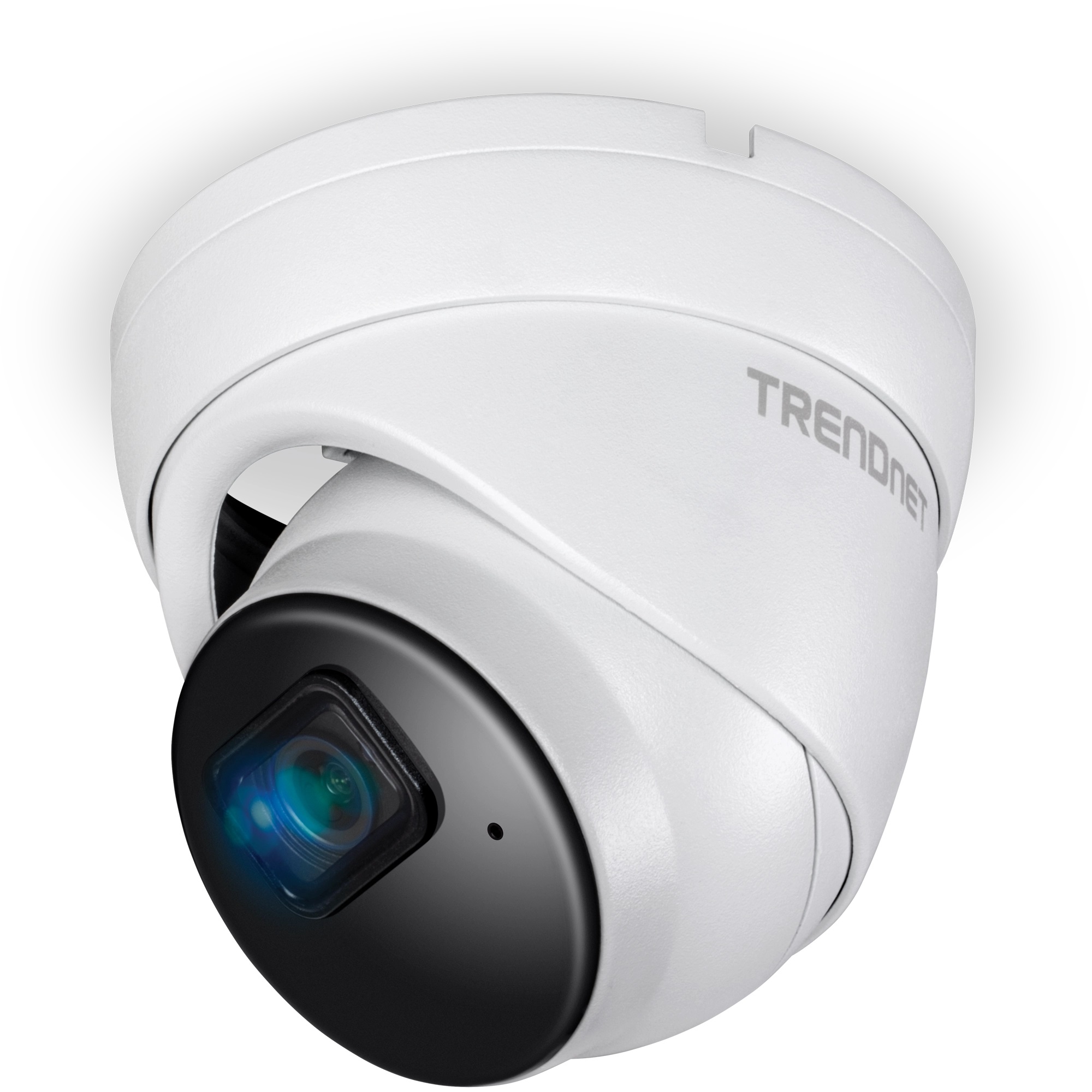

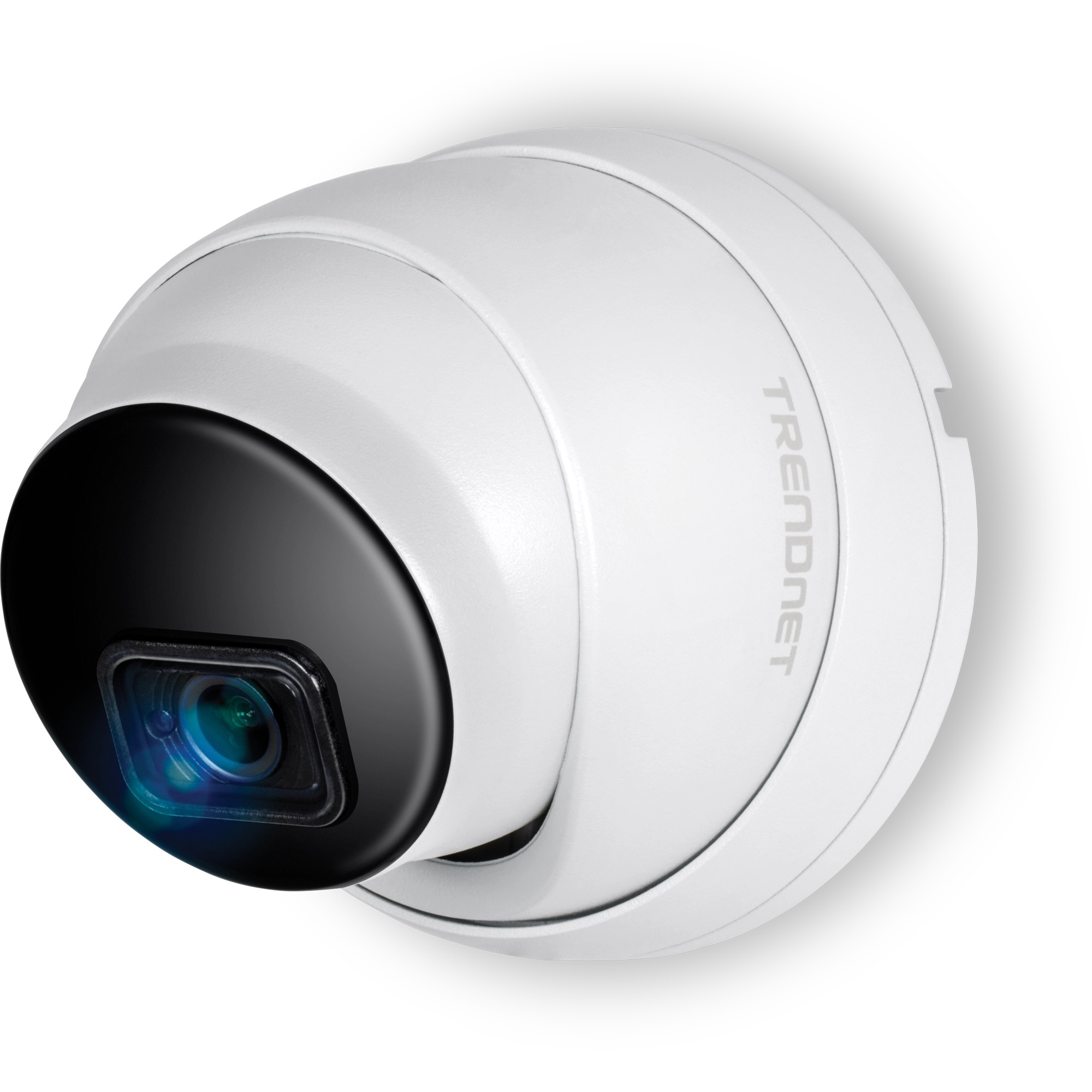

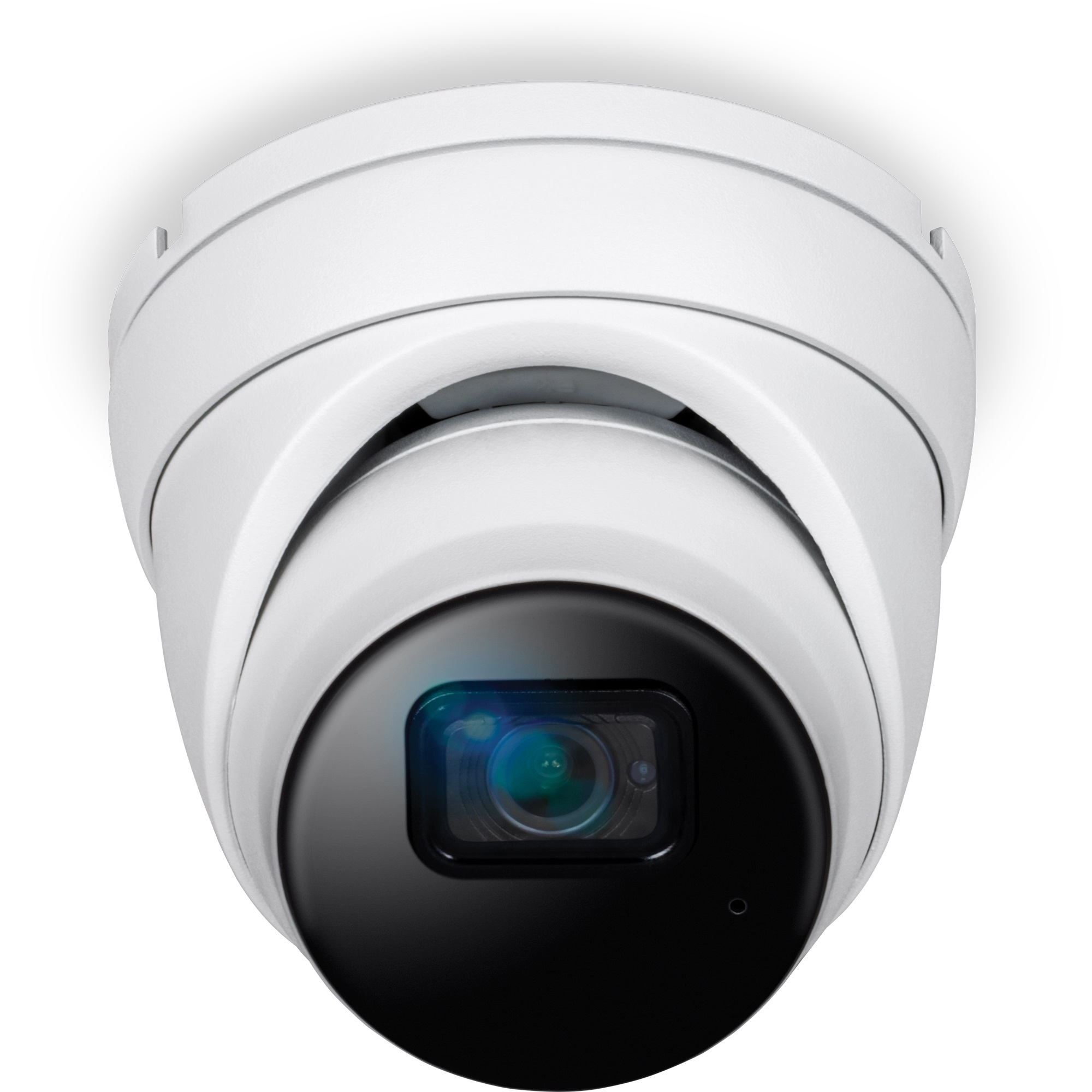

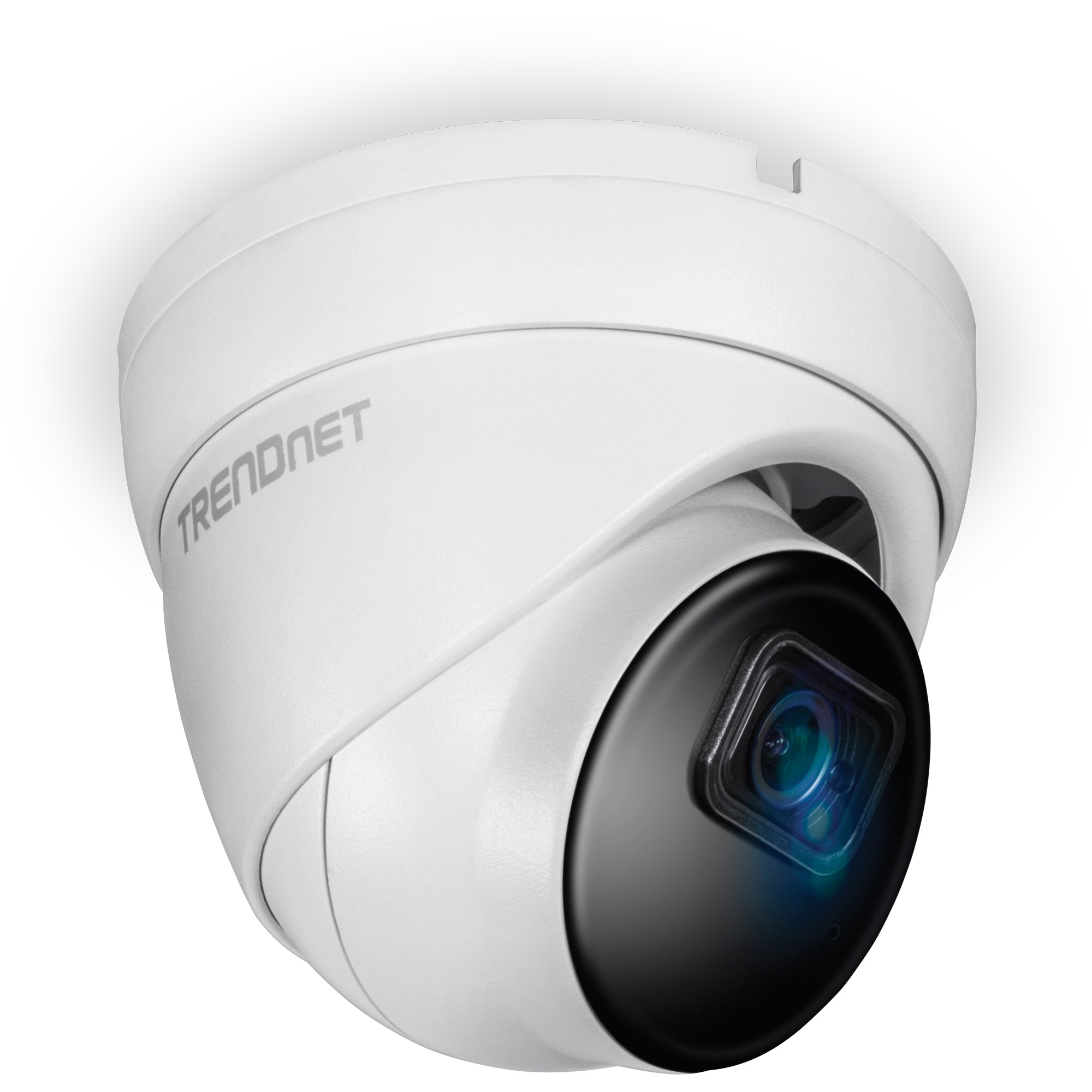

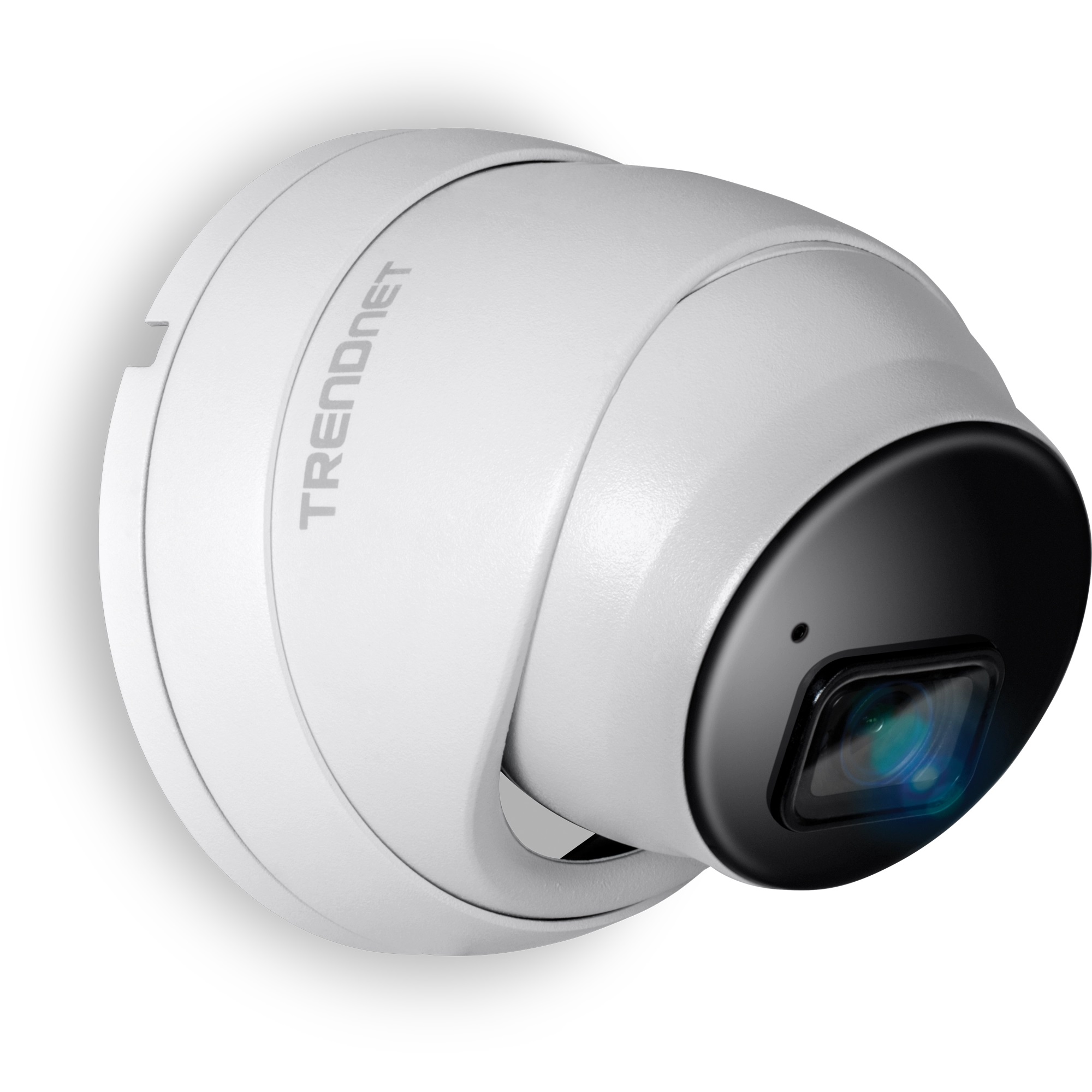

Name: Trendnet - TV-IP1515PI - Indoor / Outdoor 5 MP PoE Day/Night Dome Network Camera
Brand: Trendnet
SKU: TV-IP1515PI

Home — Brands — Trendnet — Surveillance —

Trendnet - TV-IP1515PI - Indoor / Outdoor 5 MP PoE Day/Night Dome Network Camera

Part number:

TV-IP1515PI

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet’s Indoor/Outdoor 5MP H.265 PoE IR Fixed Turret Network Camera, model TV-IP1515PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This fixed turret network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving H.265 compression format. Easily view live video from the 5MP turret camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

Features:

Easy Cloud P2P QR code installation
5MP HD video (2592 x 1920) at 20 fps
Night vision IR LEDs for night vision up to 30m (98 ft.)
Built-in microphone for one-way audio
Outdoor IP66 weather rating
Wide Dynamic Range image balancing
Save installation costs with Power over Ethernet (PoE)
Programmable motion detection recording and email alerts
Micro SD card slot (up to 256GB)
Free Sentinel iOS and Android mobile apps
Complimentary View Manager PC software
Made in Taiwan
NDAA / TAA compliant

Lens	Focal length: 3.6mm @ F1.6 Sensor: 1/ 2.7” CMOS sensor DWDR 3D NDR
Viewing	Horizontal angle: 79˚ Vertical angle : 56˚ Diagonal angle : 106˚ Manual pan: 0° to 360° Manual tilt: 0° to 80° Lens rotation: 0° to 360°
Minimum Illumination	IR off: 0.02 lux IR on: 0 lux IR distance: 30m (98 ft.) IR LED wavelength: 850nm
Compression	H.265 H.264 MJPEG
Resolution	Main stream: H.265/H.264: 2592 x 1920 up to 20fps Sub stream: H.265/H.264/MJPEG: 1280 x 720 up to 10fps Third stream: H.265/H.264/MJPEG: 720 x 480 up to 10fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100Mbps PoE port Micro SD card slot Power jack Built-in microphone Reset button
Micro SD slot	Supports Micro SD/SDHC/SDXC (not included) Up to 256GB
Housing	IP66 weather rated
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SMB HTTP, HTTPS RTSP, RTP
Compliant Standard	ONVIF (Profile S)
Dimension	100 x 100 x 90mm (3.9 x 3.9x 3.54 in.)
Weight	438g (0.96 lb.)
Operating Temperature	-30° – 50° C (-22° – 122° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Max. consumption: 6W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support Image settings: 3D Noise Reduction, Brightness, Hue Contrast, Saturation, Sharpness, Exposure Value, image Auto Gain, Day/Night switch, WDR, white balance, Mirror, Flip, Color Mode WDR enhances video quality in high contrast daytime lighting 3D Noise Reduction removes digital noise from the video signal Audio: built-in microphone can be enabled and disabled Time and date overlay Video Recording: scheduled, motion detection, and tamper detection Motion detection: define motion detection areas and motion sensitivity Privacy masks: define custom privacy masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supports remote management
View Manager	Supports TRENDnet cameras Recording playback Custom viewing modes and options Compatibility: Windows®
Sentinel App	Free iOS® and Android™ apps View live camera video Push notifications Take snapshots and videos Playback
Certifications	CE FCC UL
Warranty	3 year

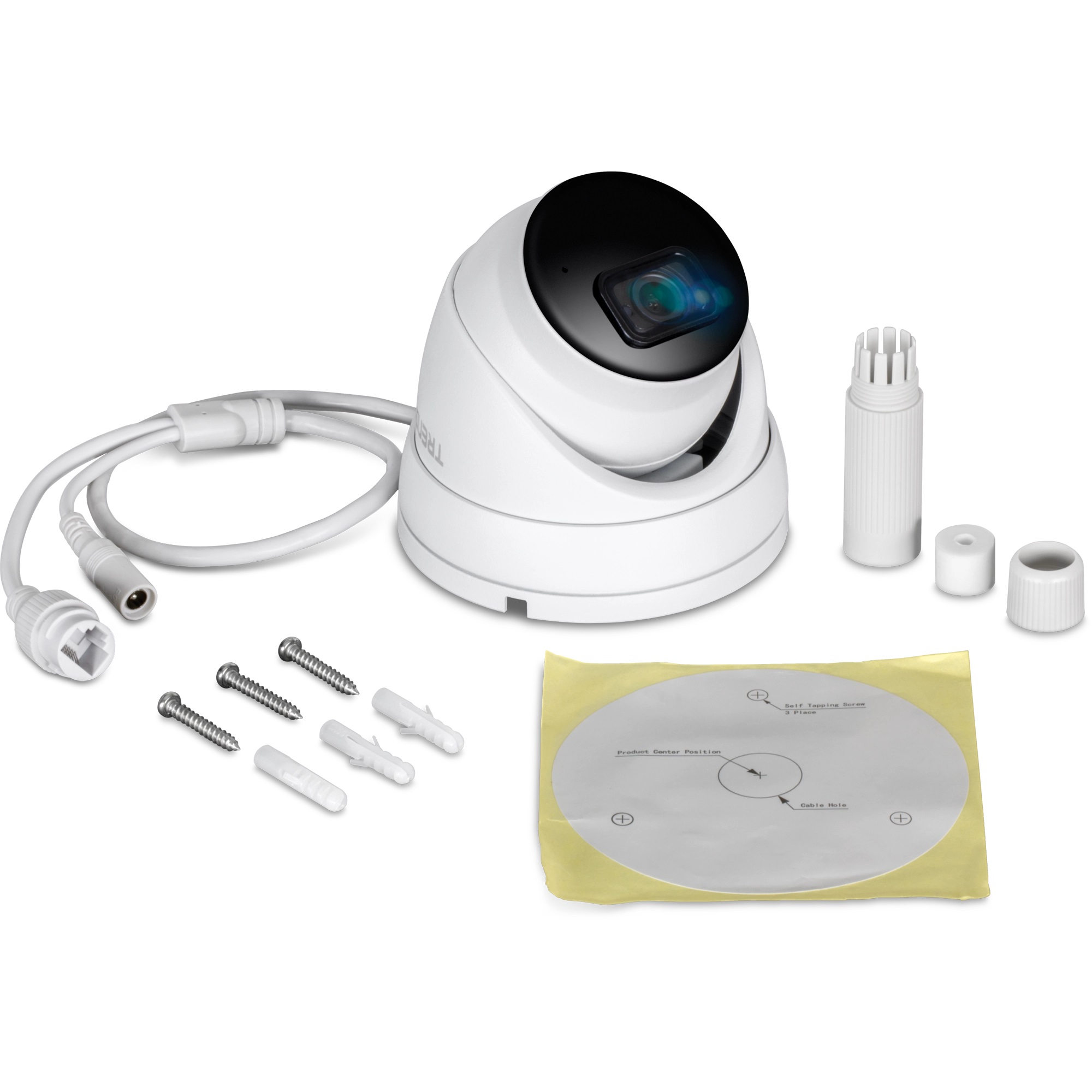

PACKAGE CONTENTS

TV-IP1515PI
Weather seal
Quick installation guide
Camera mounting hardware
