Rip-Tie - OW-22 - Two Inch Wide CinchStrap with End Grommets with Webbing 2" x 22
Part number:
OW-22
Price:
Features:

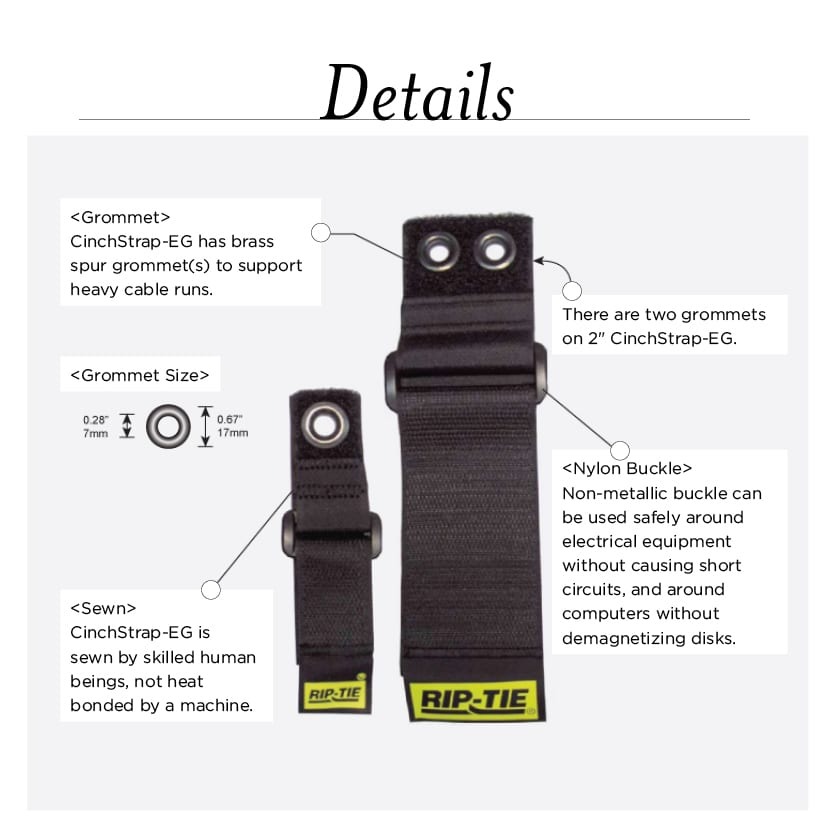

• 2” CinchStrap-EG has two brass spur grommets to support heavier cable runs.
• Grommets are spaced 7/8” on center.
• 1-1/8” on center to match standard rack hole dimensions available by special request.
Also available with webbing*.
| product code | product size | maximum bundle size |
| OW-16 | 2″ x 16″ | 4.0″ |
| OW-22 | 2″ x 22″ | 6.0″ |
| OW-28 | 2″ x 28″ | 7.75″ |
| OW-34 | 2″ x 34″ | 9.75″ |
| OW-46 | 2″ x 46″ | 13.5″ |
| OW-70 | 2″ x 70″ | 21.25″ |
| OW-94 | 2″ x 94″ | 28.75″ |
1. First determine the diameter of your maximum cable bundle size
2. The maximum cable bundle size will define the length of your CableWrap
3. Find the appropriate product code on the chart above

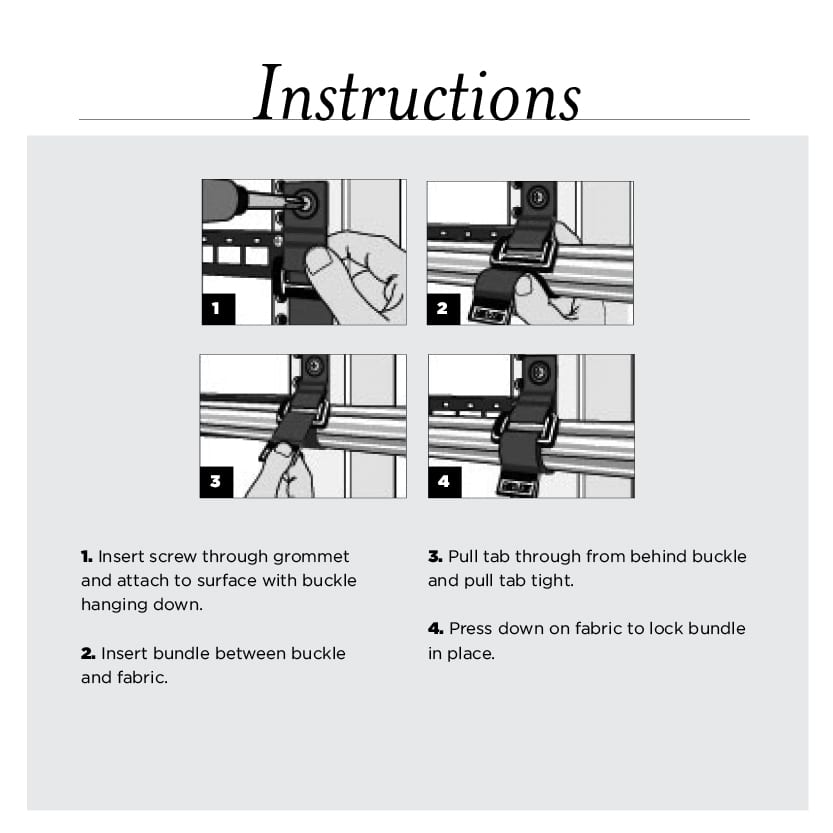

NOTICE: This product is sold for use only for wrapping cable bundles. See directions for proper use. Do not use as a safety strap or in load carrying applications.
| Length | 16" length, 22" length, 28" length, 34" length, 46" length, 70" length, 94" length |
| Number of Units | 1 Pack, 10 Pack, 50 Pack |
| Color | Black, Blue, Brown, Green, Grey, Orange, Red, Violet, White, Yellow, Rainbow |
