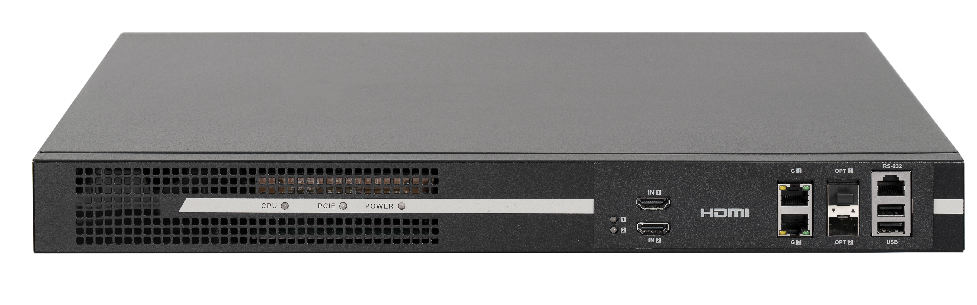

Hikvision - DC08 - Ultra High Definition Decoder, 8CH
Part number:
DC08
Price:
Ultra High Definition Decoder, 8CH
Features:
- Support computer, video conference terminals and other devices to serve as video input signal source.
- Support HDMI and HDMI 4K signal inputs.
- Support network camera, NVR, and other devices to serve as network signal source.
- Support HDMI embedded audio input.
- Support 2-ch 1080p@50/60 or 1-ch 4K@30 encoding via HDMI 1.4 input interface.
- Support 4K (3840 × 2160@30 Hz) UHD video output via HDMI 1.4 output interface.
- Support two audio output methods: embedded HDMI audio output and external audio output.
- Adopt frame synchronization technology to ensure complete synchronization of images from all output ports, complete pictures, smooth playback, and without lag, frame loss, tearing or splicing.
- Support H.264 and H.265 encoding of input boards, and sub-stream and mainstream encoding; the default encoding format is H.264.
- Support network cameras, NVR, and other network sources decoding of output boards, sub-stream and main stream decoding including H.264, H.265, Smart264, Smart265, MJPEG, HIK264 and main encapsulation formats such as PS, RTP, TS, ES.
- Support up to 128 video decoding channels and simultaneously decoding of 64-ch 2MP or 128-ch 720p video decoding on the wall.
- Support decoding streams of multiple resolution no more than 32 MP.
- Support rotate mode of front-end cameras decoding and up to 2560 × 1440 decoding output.
| Product Model | |
| Product Model | DC08 |
| Interface | |
| Alarm In | 8-ch alarm in |
| Alarm Out | 8-ch alarm out |
| Serial Interface | RS-232 (RJ45) × 1, RS-485 × 1 |
| USB Interface | USB 2.0 × 2 |
| Network Interface | RJ45 × 2, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface Optic Interface × 2 100 base-FX/1000 base-X Supports optoelectronic self-adaptation |
| Video Wall | |
| Video Walls | 1 |
| Video Wall Size | ≤ 8 |
| Layers Per Screen | 1080p × 3 or 4K × 1.5 |
| Split Window | yes |
| Layers | Layers Per Screen × Output Interface(s) |
| Scenes | 64 |
| Split Screen | 1, 2, 4, 6, 8, 9, 12, 16, 25 |
| Scene Auto-Switch Delay | 3 s |
| Background Images | Background color only |
| Subtitle No. | N/A (optional to support) |
| Delay of Displaying Local Signal Source on Video Wall | 120 ms |
| Delay of Displaying Decoded Signal Source on Video Wall | 120 ms |
| Auto-Switching Plans | Support 256 auto-switching plans |
| General | |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10％ RH to 90％ RH |
| Net Weight | < 5.18 kg (11.42 lb) |
| Gross Weight | 5.18 kg (11.42 lb) |
| Power Consumption | < 70 W |
| Packing List | Decoder × 1 DB15M to 4 × BNC (4-ch CVBS Video Patch Wire) × 1 DB15M to 8 × BNC (8-ch Audio Patch Wire) × 1 Quick Start art Guide × 1 Regulatory Compliance and Safety Information × 1 Hanger × 1 Power Cord × 1 Mat × 4 Grounding Wire × 1 |
| Dimensions (W × H × D) | 440 mm × 320.8 mm × 44.5 mm (17.32'' × 12.63'' × 1.75'') |
| Power Supply | 100 to 240 VAC |
| Audio Input | |
| Audio Input Interfaces | 2 |
| Audio Input Interface Type | embedded HDMI audio input |
| Video Input | |
| Video Input Resolution | 3840 × 2160@30 Hz, 1920 × 1080@50 Hz, 1920 × 1080@60 Hz, 1280 × 720@50/60 Hz |
| Video Input Interface Type | 2-ch: HDMI 1.4 |
| Video Input Interfaces | 2 |
| Max. Input Resolution | 4K |
| Video Encoding | |
| Video Encoding Format | H.265/H.264 Default H.264 |
| Video Encoding Channel | 2 |
| Video Encoding Capability | 1-ch: 4K 30 2-ch: 1080p 60 |
| Audio Encoding | |
| Audio Encoding Format | G722.1, G711U, G711A, AAC-LC |
| Video Output | |
| Max. Output Resolution | 4K |
| Video Output Interface Type | HDMI 1.4 |
| Video Output Interface(s) | 8 |
| Video Output Resolution | 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz |
| Video Output Resolution (BNC) | PAL: 704 × 576@25 Hz, NTSC: 704 × 480@30 Hz |
| Video Output Interface (BNC) | 2-ch: DB15 to BNC |
| Video Decoding | |
| Video Decoding Format | H.264, H.265, SmartH.264, SmartH.265, MJPEG |
| Video Decoding Resolution | Up to 32 MP |
| Video Decoding Channel(s) | 128 |
| Video Decoding Capability | Support 4-ch 32 MP/24 MP/8-ch 12 MP/16-ch 8 MP/20-ch 6 MP/32-ch 4 MP/64-ch 1080p/128-ch 720p and below real-time decoding(4 outputs in a group, sharing decoding capabilities) |
| Audio Output | |
| Audio Output Interface Type | embedded HDMI audio output or DB15 to BNC independent audio output |
| Audio Output Interface(s) | 8 |
| Encoding and Decoding | |
| Audio Decoding Format | G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM |
| Physical Interface | |
| Front Panel | Description | Rear Panel | Description |
| CPU | System running status indicator, green for normal working status | AUDIO OUT | Audio Output Interface |
| PCIE | Internal communication status indicator, green for normal working status | VIDEO OUT | Video Output Interface |
| POWER | Power supply indicator, red for normal working status | HDMI OUT | HDMI Output Interface |
| HDMI IN1 | HDMI Input Interface 1 | RS-485 | RS-485 Interface |
| HDMI IN2 | HDMI Input Interface 2 | ALARM IN | Alarm Input Interface |
| G1 | 1000 M Switching Network Interface 1 | ALARM OUT | Alarm Output Interface |
| OPT 1 | 1000 M Optical Interface 1 | ||
| RS-232 | Device Debugging Serial Interface | ||
| G2 | 1000 M Switching Network Interface 2 | ||
| OPT 2 | 1000 M Optical Interface 2 | ||
| USB | USB 2.0 Interface |
