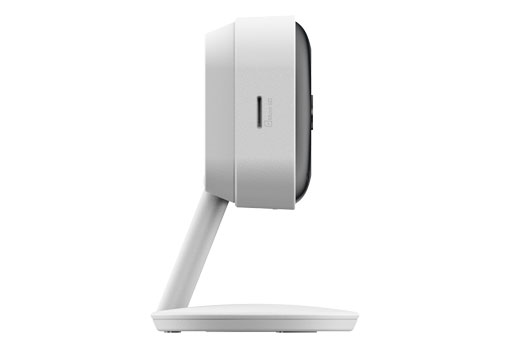

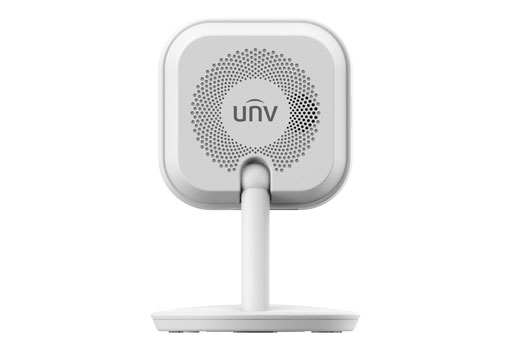

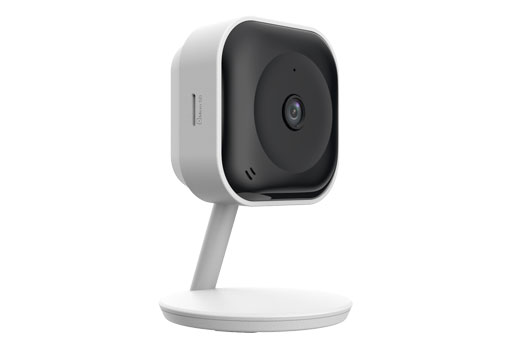

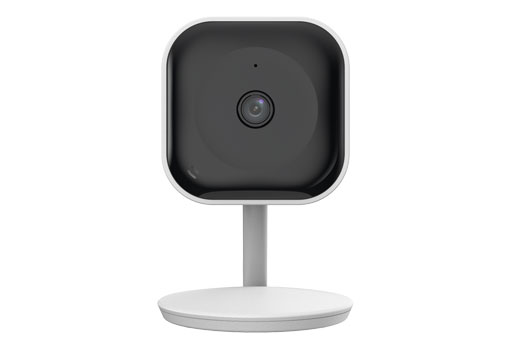

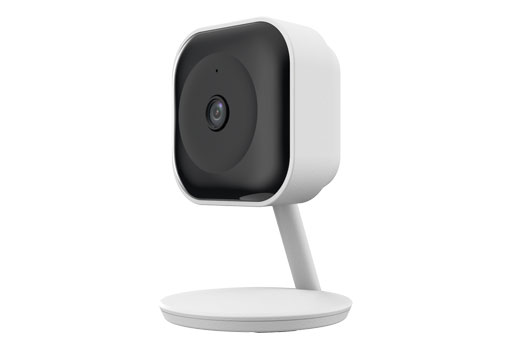

Uniview - C1L-2WN-G - UNV 2MP Cube WiFi Camera
Part number:
C1L-2WN-G
Price:
UNV 2MP Cube WiFi Camera
Features:
- Day/night functionality
- Smart IR , up to 10 m (32 ft) IR distance
- Built-in Mic/Speaker
- Wi-Fi
- Micro SD, up to 128GB
| Camera | Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 | |
| Angle of View (H) | 110.1° | |
| Axis | 3-Axis | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on | |
| IR Range | Up to 10m (32ft) IR range | |
| WDR | DWDR | |
| Video | Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; | |
| Motion Detection | Supported | |
| Tampering Alarm | Supported | |
| Audio detection | Supported | |
| Human Body Detection | Supported | |
| Storage | Edge Storage | Micro SD, up to 128GB |
| Wi-Fi | Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.4GHz ~ 2.4835GHz | |
| Frequency Bandwidth | 20MHz | |
| Interface | Built-in Mic | Supported |
| Built-in Speaker | Supported | |
| Network | 100M Base-TX Ethernet | |
| General | Power | DC 5V±10% |
| Power consumption: Max 4.0W | ||
| Weight | 0.14kg (0.31lb) | |
| Working Environment | -10°C ~ 40°C (14°F ~ 104°F), Humidity: ≤95% RH(non-condensing) | |
| Dimensions (L × W × H) | 77x 42 x 125mm (3.0” × 1.7” × 4.9”) | |
| Reset Button | Supported |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
