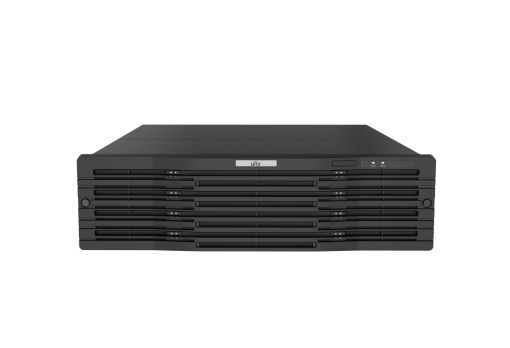

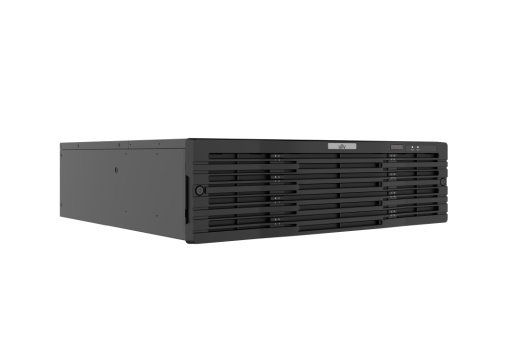

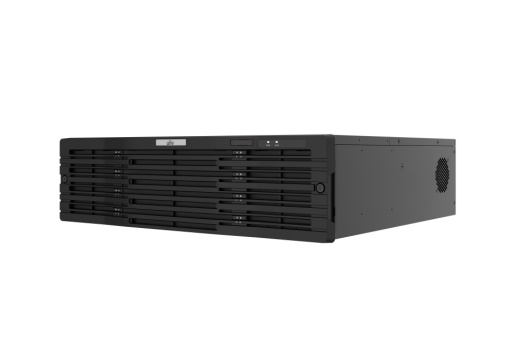

Uniview - DEU1016-B - UNV DEU1016-B 16 Hard Disks Enclosure Unit
Part number:
DEU1016-B
Price:
UNV DEU1016-B 16 Hard Disks Enclosure Unit
Features:
- High density. The innovative enclosure with 477mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios.
- Power protection. Disk powered on sequentially during system startup, protection from impulse current.
| Hard Disk | Description |
| SATA | 16 SATA Interfaces |
| Capacity | Up to 16TB for each disk |
| External Interface | Description |
| miniSAS | 1 |
| RS232 | 1 |
| Power Supply | AC 100～240V |
| Working Environment | Description |
| Working Temperature | -10°C ~ + 55°C (+14°F ~ +131°F) |
| Working Humidity | 5%~95% RH (non-condensing) |
| Power Consumption(With HDD) | < 160W(With 16 HDDs) |
| Dimensions | Description |
| Weight(Without HDD) | < 10Kg (22lb) |
| Dimensions | 482mm × 477mm× 131mm (19.0"×18.8"×5.1") |
| Height | 3U |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
