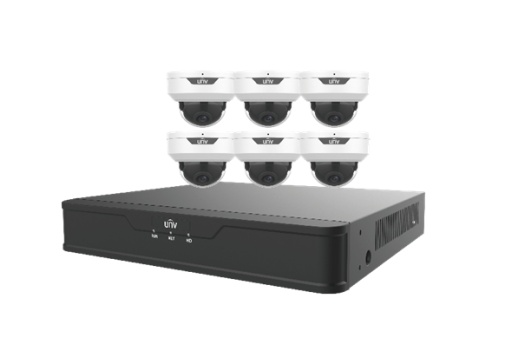

Uniview - EK-S31P8D46T2-V3 - 6 Camera +1 NVR Kit with 2TB HDD Storage Without 18M Network cables
Part number:
EK-S31P8D46T2-V3
Price:

6 Camera +1 NVR Kit with 2TB HDD Storage Without 18M Network cables



NVR301-08S3-P8

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Plug & Play with 8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 8MP resolution recording
  • 1 SATA HDD
  • Support cloud upgrade




EC-D4F28M-V3

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • IP67
ModelNVR301-08S3-P8
Video/Audio Input
IP Video Input8-ch
Network
Incoming Bandwidth64Mbps
Outgoing Bandwidth48Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
HDMI/VGA Output

HDMI:

4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA:

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback8-ch
Liveview display1/4/6/8/9
Corridor Mode Screen3/4/5/7/9
Snapshot
FTP/Schedule/Event Snapshot1-ch snapshot, up to D1 resolution
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/Playback4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA1 SATA interfaces
Capacity

Up to 8TB for each disk

(The maximum HDD capacity varies with environment temperature)

Smart
VCA Detection by CameraFace Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA SearchFace Search, Behavior Search
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert AlarmIP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface1 RJ-45 10M/100Mself-adaptive Ethernet Interface
USB InterfaceRear panel: 2 x USB2.0
RS232NA
RS485NA
Alarm InNA
Alarm OutNA
PoE
Interface8 RJ-45 10M/100Mself-adaptive Ethernet Interface
Max Power

Max 30W for single port

Max 75W in total

Supported StandardIEEE 802.3at, IEEE 802.3af
General
Power Supply

52V DC

Power Consumption: ≤9 W (without HDD)

Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
Weight (without HDD)≤1.1kg (2.43lb)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart15 Subpart B, ANSI C63.4
ModelEC-D4F28M-V3
Camera
Sensor1/2.9", progressive scan, 4.0 megapixel, CMOS
Minimum Illumination

Colour: 0.01 lux (F2.0, AGC ON)

0 lux with IR

Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan 8° to 360°
S/N>52dB
WDR120dB
Lens
Lens Type2.8mm @F2.0
IrisFixed
Field of View (H)101.5°
Field of View (V)55.6°
Field of View (D)111.6°
DORI
DORI Distance

Lens (mm)

2.8

Illuminator
IR RangeUp to 30m (98ft)
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame Rate

Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate128 Kbps~6144 kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video streamDual streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion detection, Tampering alarm, Audio detection, Cross line and Intrusion
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Storage
Edge StorageMicro SD, up to 128GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API , SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection

IP67 (IEC 60529)

IK10 (IEC 62262)

General
Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4.0W

Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Φ109 x 83mm (Ø4.3” x 3.3”)
Weight0.36kg (0.79lb)
MaterialMetal + Plastic
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonN/A
