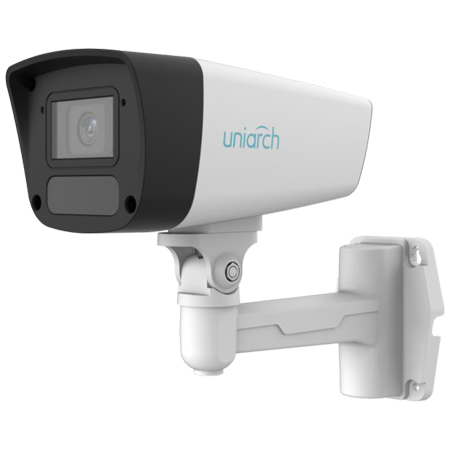

Uniview - IPC-B222-APF40 - Uniarch 2MP Fixed Lens Bullet 4.0mm(Bracket Included)
Part number:
IPC-B222-APF40
Price:
2MP Bullet Network Camera Datasheet, 4mm
Features:
Optics
- Day/night functionality
- Smart IR, up to 60m (196ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
Compression
- H.265, H.264
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of DC12V(±25%)
- IP67
| IPC-B222-APF40 | ||||
| Camera | ||||
| Sensor | 1/3", progressive scan, CMOS | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Minimum Illumination | Colour: 0.02 (F2.1, AGC ON) 0Lux with IR on | |||
| WDR | DWDR | |||
| Lens | ||||
| Lens Type | 4.0mm @F2.1, Fixed-focal | |||
| Field of View (H) | 80.2° | |||
| Field of View (V) | 42.9° | |||
| Field of View (D) | 86.0° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 4.0 | 66.7 | 26.7 | 13.3 | |
| Illuminator | ||||
| IR Range | Up to 60m (196ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | H.265, H.264 | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 25fps; 720P (1280*720), Max 25fps; Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps; | |||
| Video Bit Rate | 128 Kbps~6 Mbps | |||
| U-code | Supported | |||
| OSD | Up to 4 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| Motion Detection | Up to 4 areas | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| Smart IR | Supported | |||
| Flip | Normal/Vertical/Horizontal/180° | |||
| Dewarping | N/A | |||
| HLC | Supported | |||
| BLC | Supported | |||
| Defog | Digital Defog | |||
| Events | ||||
| Basic Detection | motion detection, audio detection | |||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||
| Audio | ||||
| Audio Compression | G.711A,G711U | |||
| Audio Bitrate | 64 Kbps | |||
| Two-way audio | N/A | |||
| Suppression | Support | |||
| Sampling Rate | 8KHZ | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP | |||
| Compatible Integration | ONVIF (Profile S, Profile T),API | |||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||
| Client | Uniarch Client Uniarch APP | |||
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||
| Interface | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| Built-in Mic | Supported | |||
| Certifications | ||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||
| General | ||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||
| Power consumption: Max 6.0W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (L × W × H) | 246× 97 × 187mm (9.7” × 3.8” × 7.4”) | |||
| Weight | 0.65kg (1.43lb) | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Surge Protection | 4KV | |||
| Reset Button | N/ | |||
