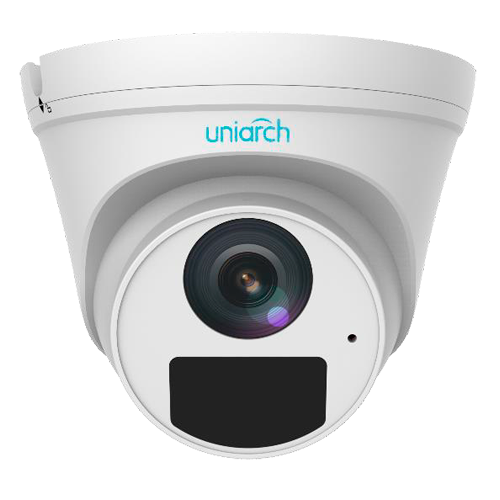

Uniview - IPC-T125-APF40 - 5MP Fixed Lens Turret 4.0mm
Part number:
IPC-T125-APF40
Price:
Uniarch 5MP Fixed Lens Turret 4.0mm
Optics :
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Built-in Mic
Compression :
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
Network :
- ONVIF Conformance
Structure :
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
IPC-T125-APF28 | IPC-T125-APF40 | ||||||
| Camera | |||||||
| Sensor | 1/2.7", progressive scan, CMOS | ||||||
| Lens | 2.8mm@F2.1 | 4.0mm@F2.1 | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |||
| 2.8 | 56.0 | 22.4 | 11.2 | ||||
| 4.0 | 80.0 | 32.0 | 16.0 | ||||
| Angle of View (H) | 74.55° | 72.32° | |||||
| Angle of View (V) | 55.00° | 46.53° | |||||
| Angle of View (O) | 96.92° | 88.95° | |||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.02Lux (F2.1, AGC ON) 0Lux with IR on | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | DWDR | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile | ||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 15fps; 4MP (2560*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 20fps | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP | ||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||||
| Interface | |||||||
| Network | 10/100M Base-TX Ethernet | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE | ||||||
| Power consumption: Max 4.5W | |||||||
| Dimensions (Ø x H) | Ø118.1 x 96.6mm (Ø4.6” x 3.8”) | ||||||
| Weight | 0.27kg (0.60lb) | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
Name
Description
Size
Downloads
File
Datasheet
0.5mb
