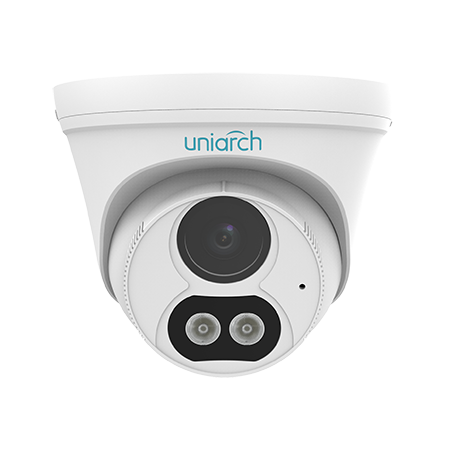

3MP Fixed Dual-light Eyeball Network Camera
Features:
IPC-T213-APF28W | ||||||
Camera | ||||||
Sensor | 1/2.7", progressive scan, CMOS | |||||
Minimum Illumination | Colour: 0.02Lux (F1.6, AGC ON) 0Lux with IR on | |||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate: 0°~360° | |||
WDR | DWDR | |||||
S/N | >55dB | |||||
Lens | ||||||
Lens Type | 2.8mm@F1.6 | |||||
Iris | Fixed | |||||
Angle of View (H) | 113.5° | |||||
Angle of View (V) | 59.5° | |||||
Angle of View (O) | 121.9° | |||||
DORI | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | ||
2.8 | 50.4(165.4ft) | 20.2(66.1ft) | 10.1(33.1ft) | |||
Illuminator | ||||||
IR Range | Up to 30m (98ft) IR range | |||||
White Light Range | Up to 15m (49ft) White light range | |||||
Wavelength | 850nm | |||||
IR On/Off Control | Auto/Manual | |||||
Video | ||||||
Video Compression | Ultra 265, H.265, H.264 | |||||
H.264 code profile | Baseline profile, Main profile, High profile | |||||
Frame Rate | Main Stream: 3MP (2304*1296), Max 25fps;1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
Video Bit Rate | 128 Kbps~6 Mbps | |||||
U-code | Support | |||||
9:16 Corridor Mode | N/A | |||||
OSD | Up to 4 OSDs | |||||
Privacy Mask | Up to 4 areas | |||||
ROI | Up to 8 areas | |||||
Motion Detection | Up to 4 areas | |||||
Video stream | Dual streams | |||||
Image | ||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |||||
Digital Noise Reduction | 2D/3D DNR | |||||
Smart IR | Support | |||||
Flip | Normal/Vertical/Horizontal/180° | |||||
Dewarping | N/A | |||||
HLC | Support | |||||
BLC | Support | |||||
Defog | Digital Defog | |||||
Events | ||||||
Basic Detection | Motion detection, Audio detection | |||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||
Audio | ||||||
Audio Compression | G.711U, G.711A | |||||
Audio Bitrate | 64 Kbps | |||||
Two-way Audio | N/A | |||||
Suppression | Support | |||||
Sampling Rate | 8KHZ | |||||
Network | ||||||
Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP | |||||
Compatible Integration | ONVIF (Profile S, Profile T), API | |||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
Client | Uniarch Client Uniarch APP | |||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||
Interface | ||||||
Audio I/O | N/A | |||||
Alarm I/O | N/A | |||||
Built-in Mic | Support | |||||
Built-in Speaker | N/A | |||||
WIFI | N/A | |||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
Video Output | N/A | |||||
Certifications | ||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) | |||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||
Protection | IP67 (IEC 60529) | |||||
General | ||||||
Power | DC 12V±25%,, PoE (IEEE 802.3af) | |||||
Power consumption: 5.8W | ||||||
Power Interface | Ø 5.5mm coaxial power plug | |||||
Dimensions (Ø x H) | Φ118x97mm (Ø4.6” x 3.8”) | |||||
Weight | 0.27kg (0.60lb) | |||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
Surge Protection | 4KV | |||||
Reset Button | N/A | |||||
Ingress Protection | IP67 |
