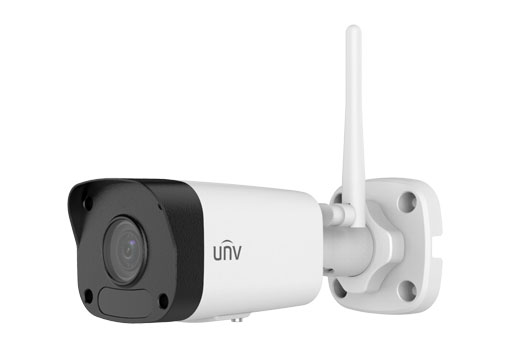

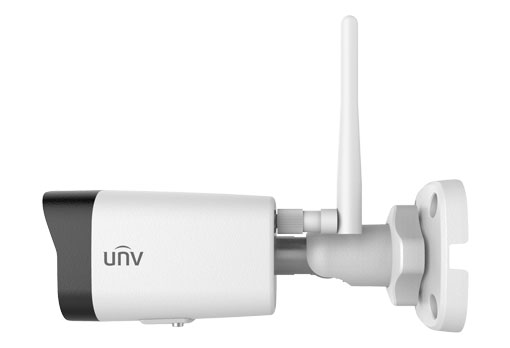

Uniview - IPC2122SR3-F40W-D - 2MP WIFI Bullet Network Camera
Part number:
IPC2122SR3-F40W-D
Price:
UNV Easy WiFi 2MP Fixed Lens Bullet 40mm
Features:
Optics:
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
Network:
- ONVIF Conformance
Structure:
- Wide temperature range:-30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
| IPC2122SR3-F40W-D | |||||
| Camera | |||||
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.0mm@F2.0 | ||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 4mm | 60 | 24 | 12 | 6 | |
| Angle of view(H) | 86.5° | ||||
| Angle of View (V) | 44.1° | ||||
| Angle of View (O) | 106.4° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
Minimum Illumination | Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
Frame Rate | Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; Third Stream: 4CIF (704×576): Max. 20 fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | Supported | ||||
| HLC | Supported | ||||
Name
Description
Size
Downloads
File
Datasheet
0.6mb
accessories
