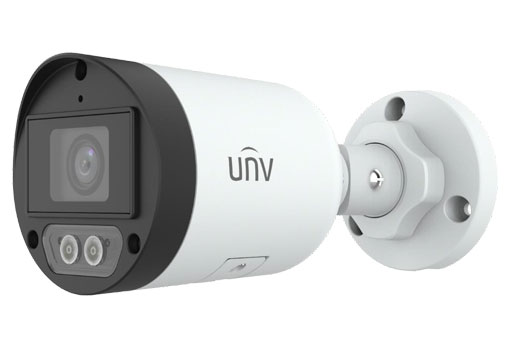

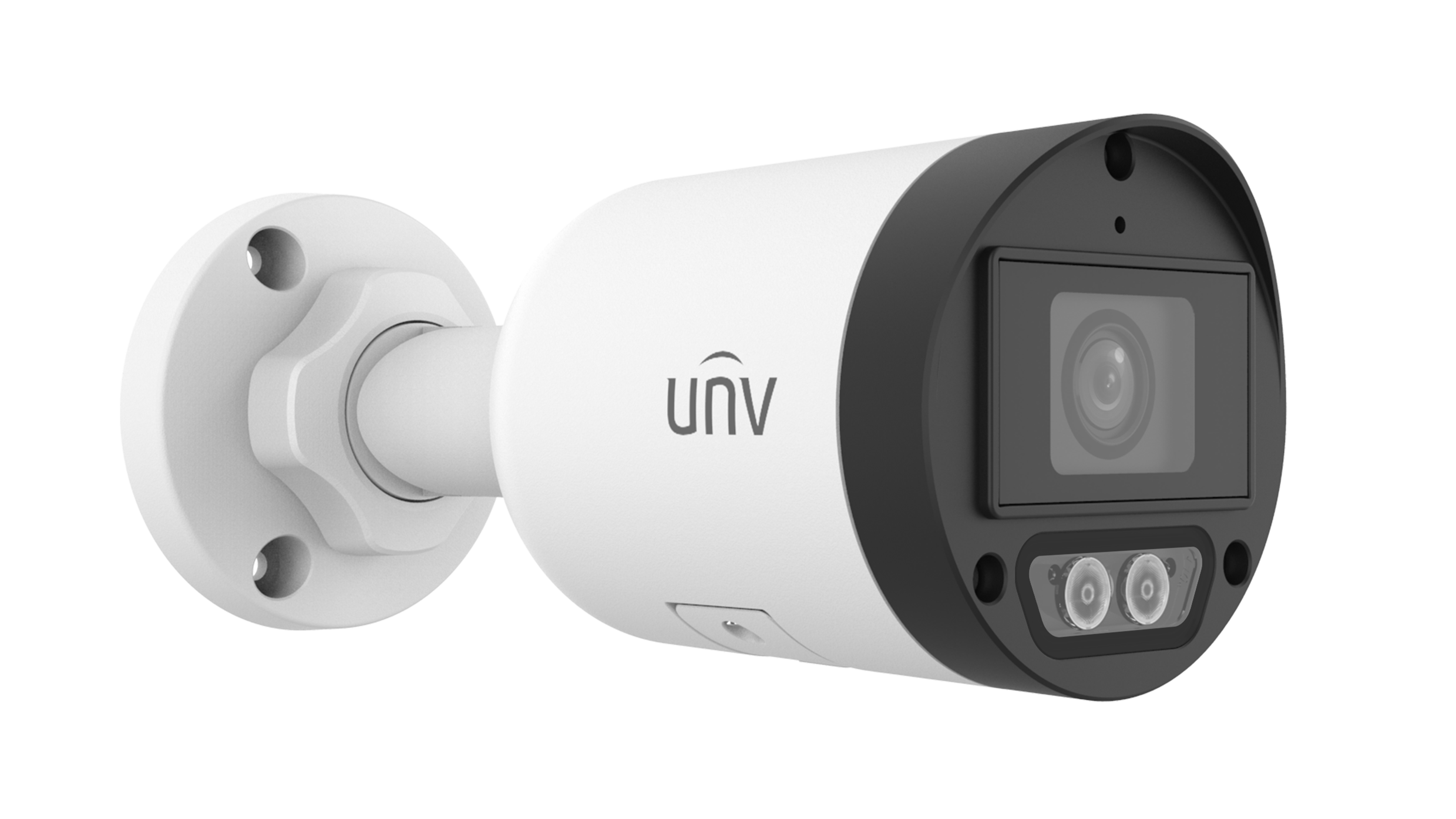

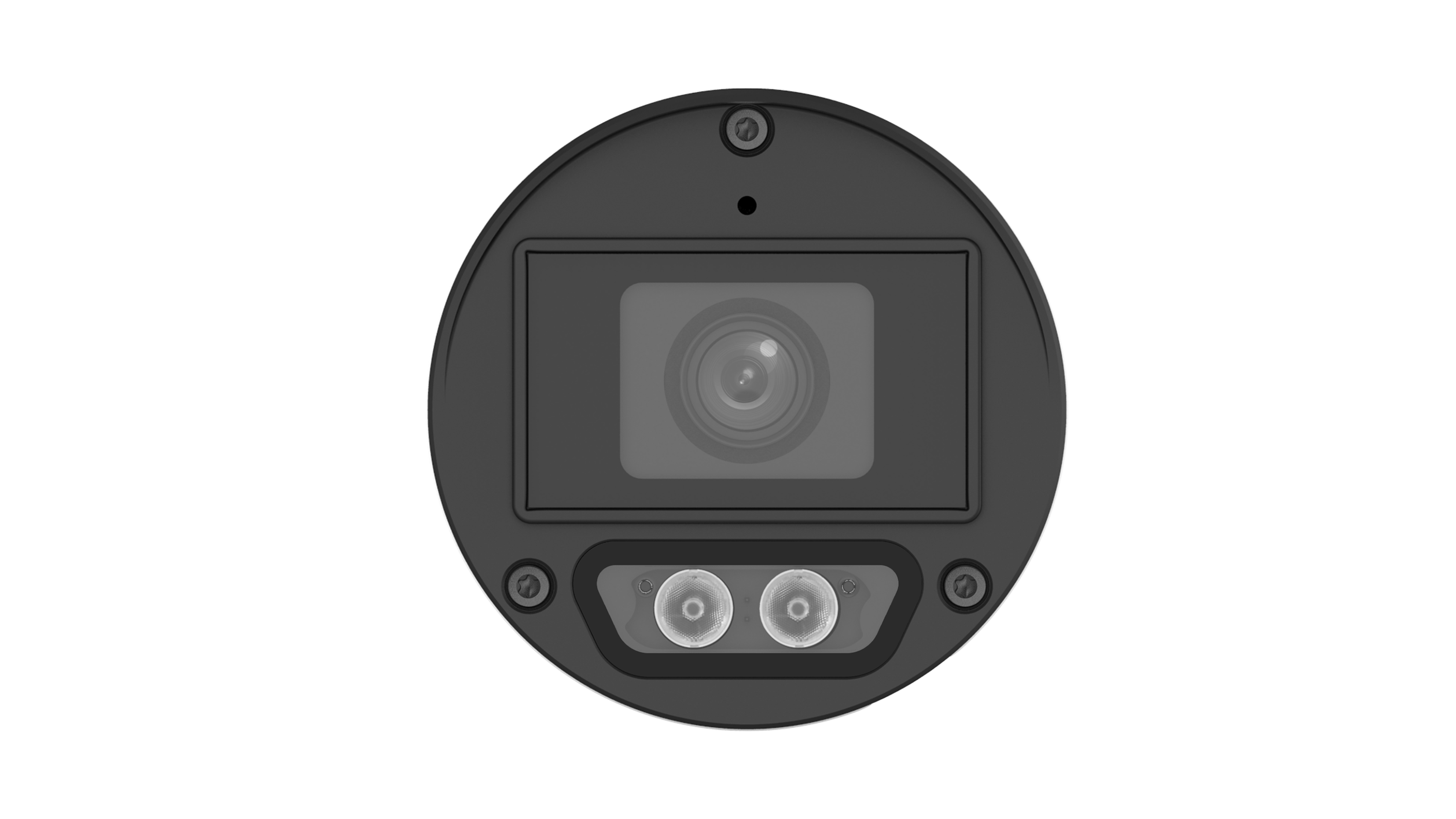

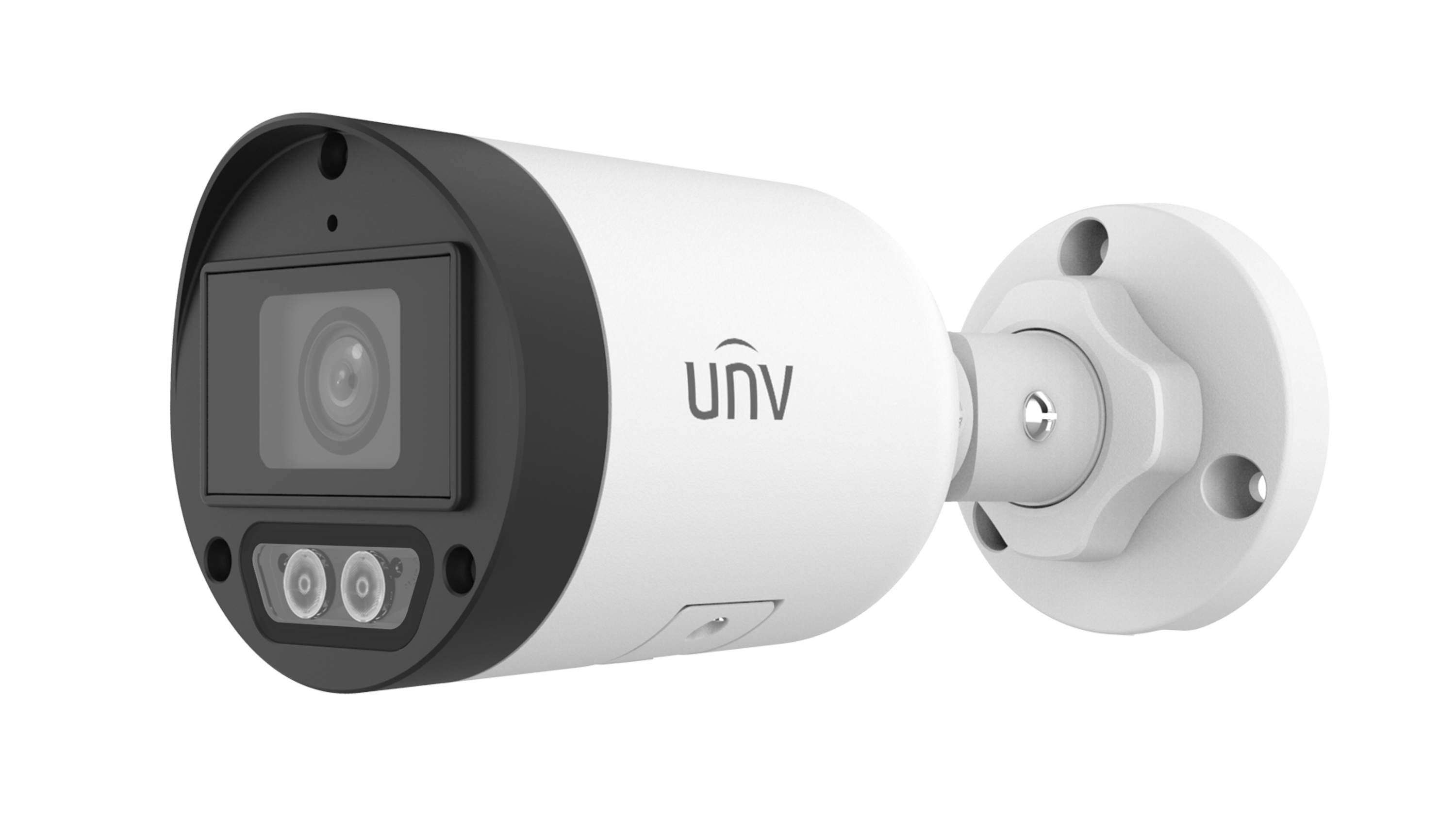

Uniview - IPC2124LB-AF28K-DL - UNV 4MP Dual Light Fixed Mini Bullet, 2.8mm, Built-in Mic (No UMD)
Part number:
IPC2124LB-AF28K-DL
Price:
UNV 4MP Dual Light Fixed Mini Bullet, 2.8mm, Built-in Mic (No UMD)
Features:
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra H.265,H.265, H.264
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Warm Light, up to 30m (98ft) warm light distance
- 2D/3D DNR (Digital Noise Reduction)
- Support 128GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC2124LB-AF28K-DL | IPC2124LB-AF40K-DL | ||
| Camera | |||
| Max Resolution | 4 MP | ||
| Sensor | 1/3.0" CMOS | ||
| Min. Illumination | Colour: 0.01 lux ( F1.6, AGC ON) 0 lux with IR | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | ||
| S/N | >52 dB | ||
| WDR | DWDR | ||
| Lens | |||
| Focal Length | 2.8 mm | 4.0 mm | |
| Iris Type | Fixed | ||
| Iris | F1.6 | ||
| Field of View (H) | 97.0° | 79.0° | |
| Field of View (V) | 52.2° | 42.3° | |
| Field of View (D) | 107.5° | 85.1° | |
| DORI | |||
| DORI Distance (Lens) | 2.8mm | 4.0mm | |
| DORI Distance (Detect) | 63.0m(206.7t) | 90.0m(295.3t) | |
| DORI Distance (Observe) | 25.2m(82.7ft) | 36.0m(118.1ft) | |
| DORI Distance (Recognize) | 12.6m(41.3ft) | 18.0m(59.1ft) | |
| DORI Distance (Identify) | 6.3m(20.7ft) | 9.0m(29.5ft) | |
| Illuminator | |||
| Supplemental Light | Dual light | ||
| Illumination Distance (IR) | 30 m (98.4 ft) | ||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | ||
| Wavelength | 850 nm | ||
| IR On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps | ||
| Video Bit Rate | 128 Kbps to 6144 Kbps | ||
| U-code | Support | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Support | ||
| Video Stream | Dual streams | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital defog | ||
| Events | |||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | N/A | ||
| Suppression | Support | ||
| Sampling Rate | 8 kHz | ||
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | ||
| Network Storage | ANR, NAS (NFS) | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | ||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||
| Client | UNV-Link, UNV-Link Pro, EZStation | ||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||
| Interface | |||
| Audio I/O | N/A | ||
| Alarm I/O | N/A | ||
| Serial Port | N/A | ||
| Built-in Mic | Support | ||
| Built-in Speaker | N/A | ||
| WIFI | N/A | ||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certification | |||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | ||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||
| Protection | IP67 (IEC 60529) | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power Consumption | Max 2.8W | ||
| Power Interface | Ø5.5 mm coaxial power plug | ||
| Dimensions | 162 × 67 × 67mm (6.4” × 2.6” × 2.6”) (L x W x H) | ||
| Weight | 0.24kg (0.53lb) | ||
| Material | Metal + Plastic | ||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||
| Surge Protection | 4 KV | ||
| Reset Button | N/A | ||
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese | ||
