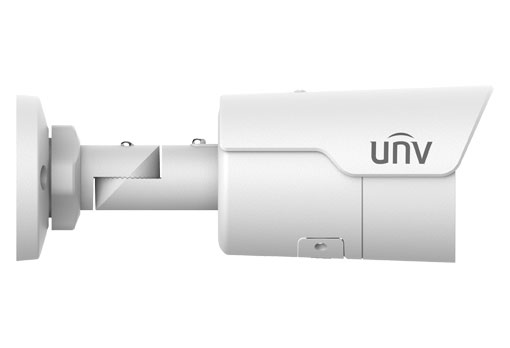

Uniview - IPC2125SR5-ADF28KM-G - UNV 5MP WDR Fixed Mini Bullet, 2.8mm, Built-in Mic
Part number:
IPC2125SR5-ADF28KM-G
Price:
UNV 5MP WDR Fixed Mini Bullet, 2.8mm, Built-in Mic
Features:
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Lighthunter technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 50m (164ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC2125SR5-ADF28KM-G | IPC2125SR5-ADF40KM-G | ||||||||
| Camera | |||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |||||
| Angle Of View (H) | 112.9° | 91.2° | |||||||
| Angle Of View (V) | 59.1° | 47.9° | |||||||
| Angle Of View (O) | 121.2° | 95.9° | |||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| S/N | >56dB | ||||||||
| IR Range | Up to 50m (164ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120dB | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| 9:16 Corridor Mode | Supported | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Supported | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NFS) | ||||||||
| Smart | |||||||||
| Behavior Detection | (Cross line, intrusion)based on human body detection, motion detection, tampering alarm, audio detection | ||||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation EZView EZLive | ||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
| Interface | |||||||||
| Network | 10/100M Base-TX Ethernet | ||||||||
| Built-in Mic | Supported | ||||||||
| Certifications | |||||||||
| Certifications | UL: UL60950-1 FCC: FCC Part 15 | ||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 6.0W | |||||||||
| Dimensions(L × W × H) | 190×73×71mm (7.5”×2.9”×2.8”) | ||||||||
| Net Weight | 0.45kg (0.99lb) | ||||||||
| Material | Metal | ||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Ingress Protection | IP67 | ||||||||
| Reset Button | N/A | ||||||||
