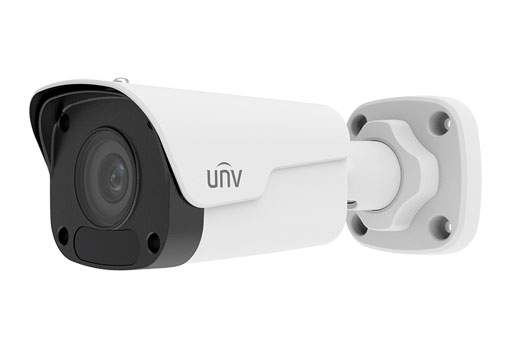

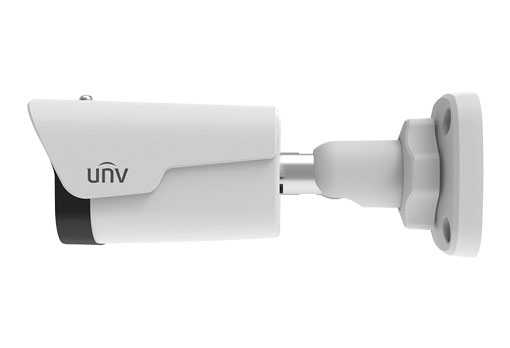

Uniview - IPC2128LR3-DPF28M-F - 4K Mini Fixed Bullet Network Camera
Part number:
IPC2128LR3-DPF28M-F
Price:
4K Mini Fixed Bullet Network Camera
Features:
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC2128LR3-DPF28M-F | IPC2128LR3-DPF40M-F | |||||||
| Camera | ||||||||
| Sensor | 1/3", 8.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||
| 4.0mm | 120 | 48 | 24 | 12 | ||||
| Angle of View (H) | 101° | 86.5° | ||||||
| Angle of View (V) | 51.1° | 44.1° | ||||||
| Angle of View (O) | 131.3° | 106.4° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
Minimum Illumination | Colour: 0.05 Lux (F2.0, AGC ON) 0 Lux with IR on | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline Profile, Main Profile | |||||||
Frame Rate | Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps Sub Stream:720P (1280*720): Max. 20 fps Third Stream:4CIF (704*576): Max. 20 fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 2 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | NA | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
