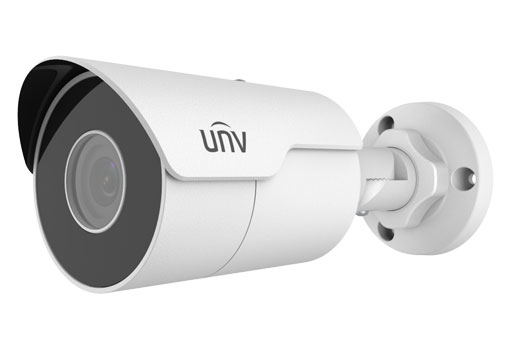

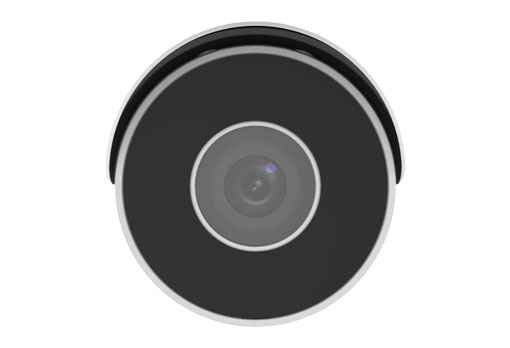

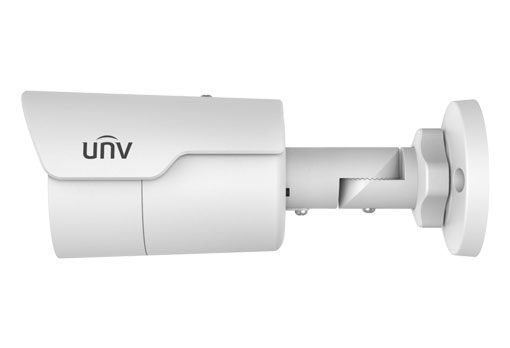

Uniview - IPC2128SR3-DPF40 - 4K Mini Fixed Bullet Network Camera
Part number:
IPC2128SR3-DPF40
Price:
UNV 8MP Wide Dynamic Mini Bullet Network Camera
Features:
Optics
- Day/night functionality
- SmartIR, up to 30m (98ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
- Up to 120dB WDR (Wide Dynamic Range
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC2128SR3-DPF40 | IPC2128SR3-DPF60 | |||||||
| Camera | ||||||||
| Sensor | 1/2.5", 8.0 megapixel, progressive scan, CMOS | |||||||
| Lens | 4.0mm@F2.0 | 6.0mm@F2.0 | ||||||
DORI Distance | Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 4.0 | 72 | 28.8 | 14.4 | 7.2 | ||||
| 6.0 | 108 | 43.2 | 21.6 | 10.8 | ||||
| Angle of View(H) | 91.6° | 54.2° | ||||||
| Angle of view(V) | 47.2° | 32.5° | ||||||
| Angle of view(O) | 112.7° | 66.7° | ||||||
| Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 90° | Rotation: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1~1/100000s | |||||||
Minimum Illumination | Colour: 0.05Lux (F2.0, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate | Main Stream:8MP (3840*2160), Max 20fps; Sub Stream:1080P (1920*1080), Max 30fps; Third Stream:D1(720*576), Max30fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
