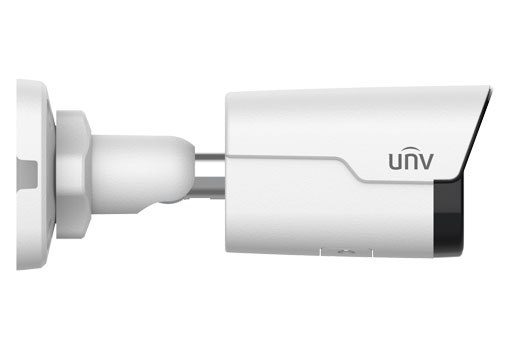

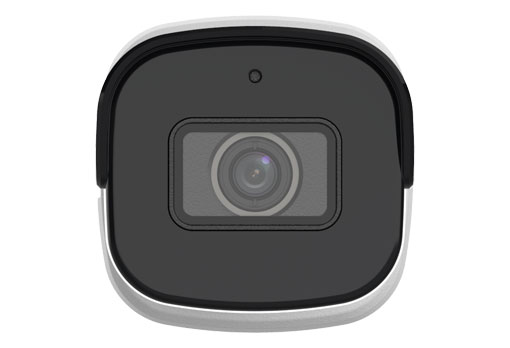

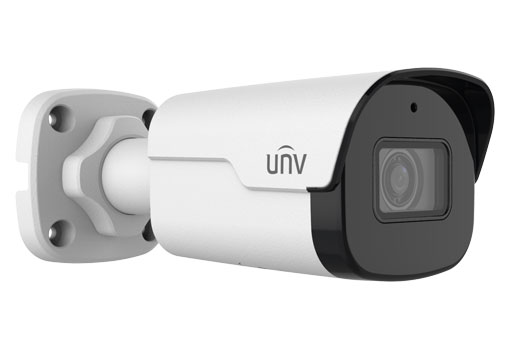

Uniview - IPC2128SS-ADF28KM-I0 - 8MP LightHunter Mini Fixed Bullet Network Camera, 2.8mm
Part number:
IPC2128SS-ADF28KM-I0
Price:
UNV 8MP LightHunter Mini Bullet(Standard,Wide Dynamic,Premier Protection,2.8mm,PoE,Mic,30m IR)
Features:
Optics
- 1/2.8’’, Powered by lighthunter
- SmartIR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 3840*2160@20fps in the main stream
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Built-in MIC
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- IP67 ingress protection
| IPC2128SS-ADF28KM-I0 | ||
| Camera | ||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | |
| Lens | 2.8mm@F1.6 | |
| Iris | Fixed aperture | |
| DORI Distance | Lens (mm) | Detect (m) |
| 2.8 | 86.9(285.1ft) | |
| 4.0 | 124.1(407.3ft) | |
| Angle of View (H) | 96.6° | |
| Angle of View (V) | 50.8° | |
| Angle of View (O) | 125.6° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Min. Illumination | Colour:0.003lux (F1.6, AGC ON) 0 lux with IR | |
| WDR | 120dB | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| S/N | >56dB | |
| IR Range | Up to 50m (164 ft) IR range | |
| Wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Defog | Digital Defog | |
| Video | ||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |
| Frame Rate | Main Stream: 8MP(3840*2160),Max 20fps; 6MP(3072*2048),Max 30fps; 5MP(3072*1728),Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | |
| Video Bit Rate | 128 Kbps~16 Mbps | |
| ROI | Supported | |
| Video stream | Triple streams | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |
| HLC | Support | |
| BLC | Support | |
| Events | ||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Audio | ||
| Audio Compression | G.711U,G.711A | |
| Suppression | Supported | |
| Sampling Rate | 8KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 256 GB | |
| Network Storage | ANR,NAS(NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| Client | EZStation Ezview EZLive | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Interface | ||
| Audio | Build-in Mic | |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |
| Certifications | ||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |
| General | ||
Power | DC12V(±25%), PoE(IEEE802.3af) | |
| Power consumption: Max 6W | ||
| Dimensions (Ø x H) | Φ155.9x63.1x62.7mm(Φ6.1’’x2.5’’x2.5’’) | |
| Net Weight | 0.4kg(0.88lb) | |
| Material | Metal | |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |
| Surge protection | 2KV | |
| Ingress Protection | IP67 | |
