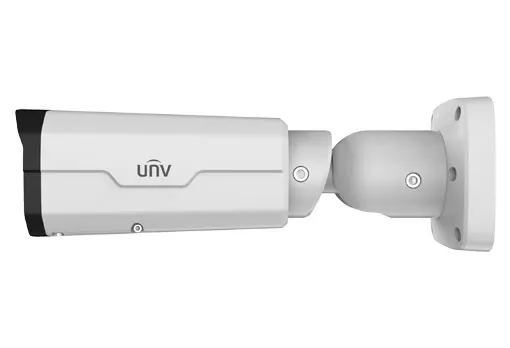

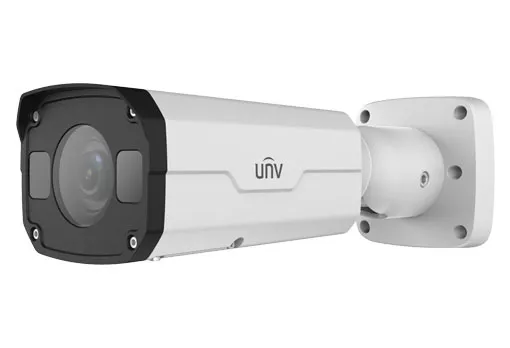

Uniview - IPC2322EBR5-HDUPZ - 2MP Starlight Level WDR Interfaces IR Bullet IP Camera
Part number:
IPC2322EBR5-HDUPZ
Price:
UNV 2MP Starlight Level WDR Interfaces IR Bullet IP Camera
Features:
Optics:
- LightHunter
- 60fps Frame Rate
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 120dB TRUE WDR
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Camera | |||||||
| Sensor | 1/2.8", 2.0megapixel, progressive scan, CMOS | ||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.7 | 41.9 | 16.7 | 8.4 | 4.2 | |||
| 13.5 | 209.5 | 83.8 | 41.9 | 20.9 | |||
| Angle of View (H) | 121.36° ~ 33.51° | ||||||
| Angle of View (V) | 58.4° ~ 14.9° | ||||||
| Angle of View (O) | 139.9° ~ 33.4° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||||
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >52 dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | Support | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| cross line | Cross a pre-defined virtual line | ||||||
| motion detection | Moving within a pre-defined virtual region | ||||||
| Recognition | Face detection | ||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||||
| Statistical Analysis | People counting | ||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
| Client | EZStation EZView EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 1V [p-p] | ||||||
| Output: impedance 600Ω; amplitude 1V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 10W | |||||||
| Dimensions (L × W × H) | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) | ||||||
| Net Weight | 1.0kg (2.2lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| surge protection | 6KV | ||||||
| Ingress Protection | IP67 | ||||||
