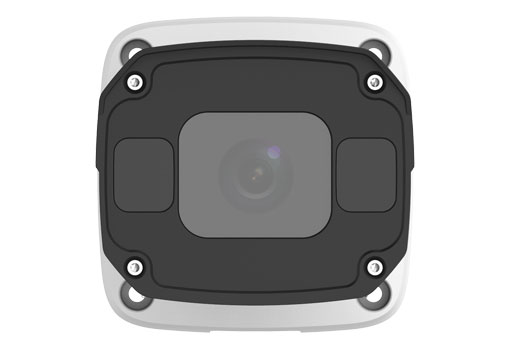

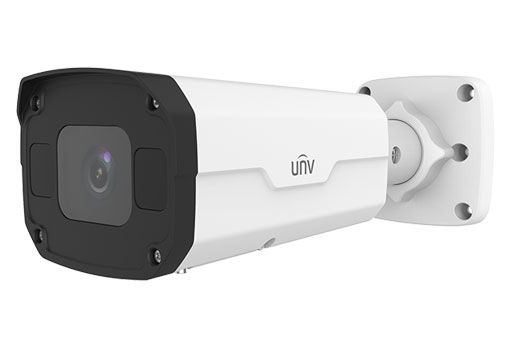

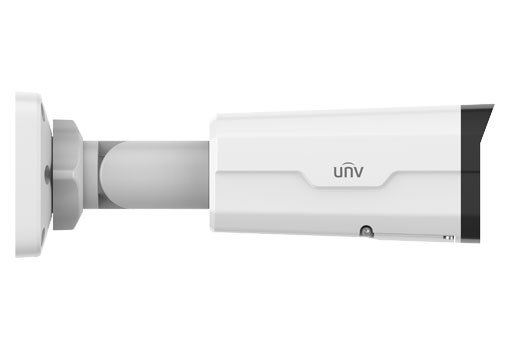

Uniview - IPC2322SB-HDZK-I0 - UNV 2MP 60FPS VF Bullet
Part number:
IPC2322SB-HDZK-I0
Price:
2MP WDR Lighthunter IR Network Bullet Camera
Features:
- High quality image with 2MP,1/2.8’’ CMOS sensor
- 1920*1080@60fps in the main stream, deliver detailed live while 60fps making it smooth and closer to the real image
- Ultra 265, H.265, H.264, MJPEG
- 5X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Lighthunter product technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- DC12V or PoE (IEEE 802.3af) power supply
- Wide voltage range of ±25% in DC
- Audio 1 in and 1 out, Alarm 1 in and 1 out
| IPC2322SB-HDZK-I0 | ||||
| Camera | ||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||
| Min. Illumination | Color:0.001 lux (F1.2, AGC ON) 0 lux with IR | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| WDR | 120dB | |||
| S/N | >52dB | |||
| Lens | ||||
| Lens type | 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens | |||
| Iris | Fixed | |||
| Field of View (H) | 98.2°~30.6° | |||
| Field of View (V) | 53.3°~17.3° | |||
| Field of View (D) | 127.7°~37.6° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) |
| 2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | |
| 13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | |
| Illuminator | ||||
| IR Range | Up to 50m (164 ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| Frame Rate | Main Stream: 1080P (1920*1080),Max 60fps; Sub Stream: 1080P (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| ROI | Up to 8 areas | |||
| Video stream | Triple streams | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas per scene | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| HLC | Support | |||
| BLC | Support | |||
| Defog | Digital Defog | |||
| Intelligent | ||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||
| Events | ||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | |||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||
| Audio | ||||
| Audio Compression | G.711U, G.711A | |||
| Audio Bitrate | 64 Kbps | |||
| Two-way Audio | Support | |||
| Suppression | Support | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256 GB | |||
| Network Storage | ANR,NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | |||
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||
| Client | EZStation EZLive EZview | |||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Interface | ||||
| Audio I/O | 1/1 | |||
| Alarm I/O | 1/1 | |||
| Video output | 1 BNC(For debugging) | |||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| Certification | ||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||
| General | ||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | |||
| Power consumption: Max 8W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (L x W x H) | 245.0x86.0x85.0mm (9.6''x3.4''x3.4'') | |||
| Weight | 0.92kg(2.03lb) | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||
| Surge protection | 6KV | |||
| Reset button | N/A | |||
