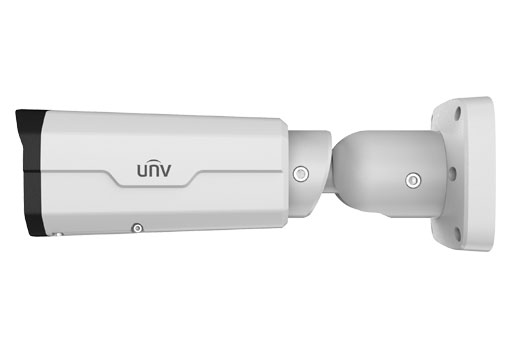

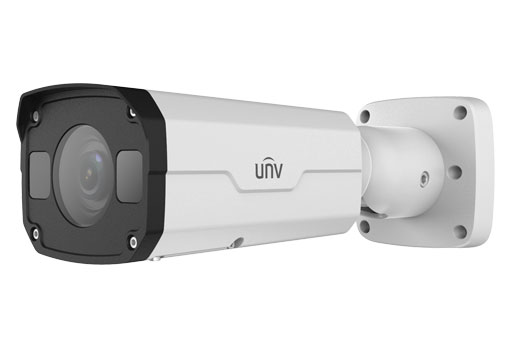

Uniview - IPC2324EBR-DPZ28 - 4MP VF Network IR Bullet Camera
Part number:
IPC2324EBR-DPZ28
Price:
UNV 4MP Motorized VF Network IR Bullet Camera(2.8-12mm,WDR,PoE,RJ45,SD Slot,Full cable,Bracket)
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| DORI Distance | 2.8 | 63 | 25.2 | 12.6 | 6.3 | |
| 12 | 270 | 108 | 54 | 27 | ||
| Angle of View (H) | 91° ~ 27° | |||||
| Angle of View (V) | 54.4° ~ 13.7° | |||||
| Angle of View (O) | 118.3° ~ 33.2° | |||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.005Lux (F1.4, AGC ON) | |||||
| 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| S/N | >52 dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; | ||||||
| Frame Rate | Sub Stream: 2MP (1920*1080), Max 30fps; | |||||
| Third Stream: D1 (720*576), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | Support | |||||
| 2 | ||||||
