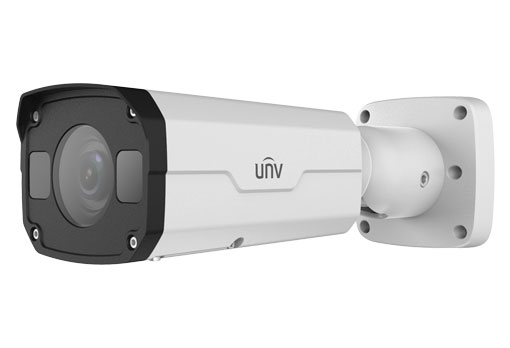

Uniview - IPC2328SBR5-DPZ - 8MP LightHunter VF Network IR Bullet Camera
Part number:
IPC2328SBR5-DPZ
Price:
UNV 8MP Bullet IP Camera (WDR, Full Cable, PoE, Electrical Interfaces, 2.8~12mm, 50m IR, SD Slot, Bracket)
Features:
Optics
- LightHunter
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 50m (164ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| IPC2328SBR5-DPZ | |||||||
| Camera | |||||||
| Sensor | 1/2", 8.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||
| 12 | 270 | 108 | 54 | 27 | |||
| Angle of View (H) | 114.8° ~ 47.3° | ||||||
| Angle of View (V) | 75.3° ~ 20.4° | ||||||
| Angle of View (O) | 141.2° ~ 55.8° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR on | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 50m (164ft) IR range | ||||||
| wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps; 4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
Client | EZStation EZView EZLive |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| Interface | |
Audio I/O | Audio cable |
| Input: impedance 35kΩ; amplitude 2V [p-p] | |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 1/1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
| Certifications | |
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 10W | |
| Dimensions (L × W × H) | 253.4 × 86.4 × 78.7mm (57.6” × 3.4” × 2.8”) |
| Net Weight | 1.0kg (2.2lb) |
| Material | Metal |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection | 6KV |
| Ingress Protection | IP67 |
