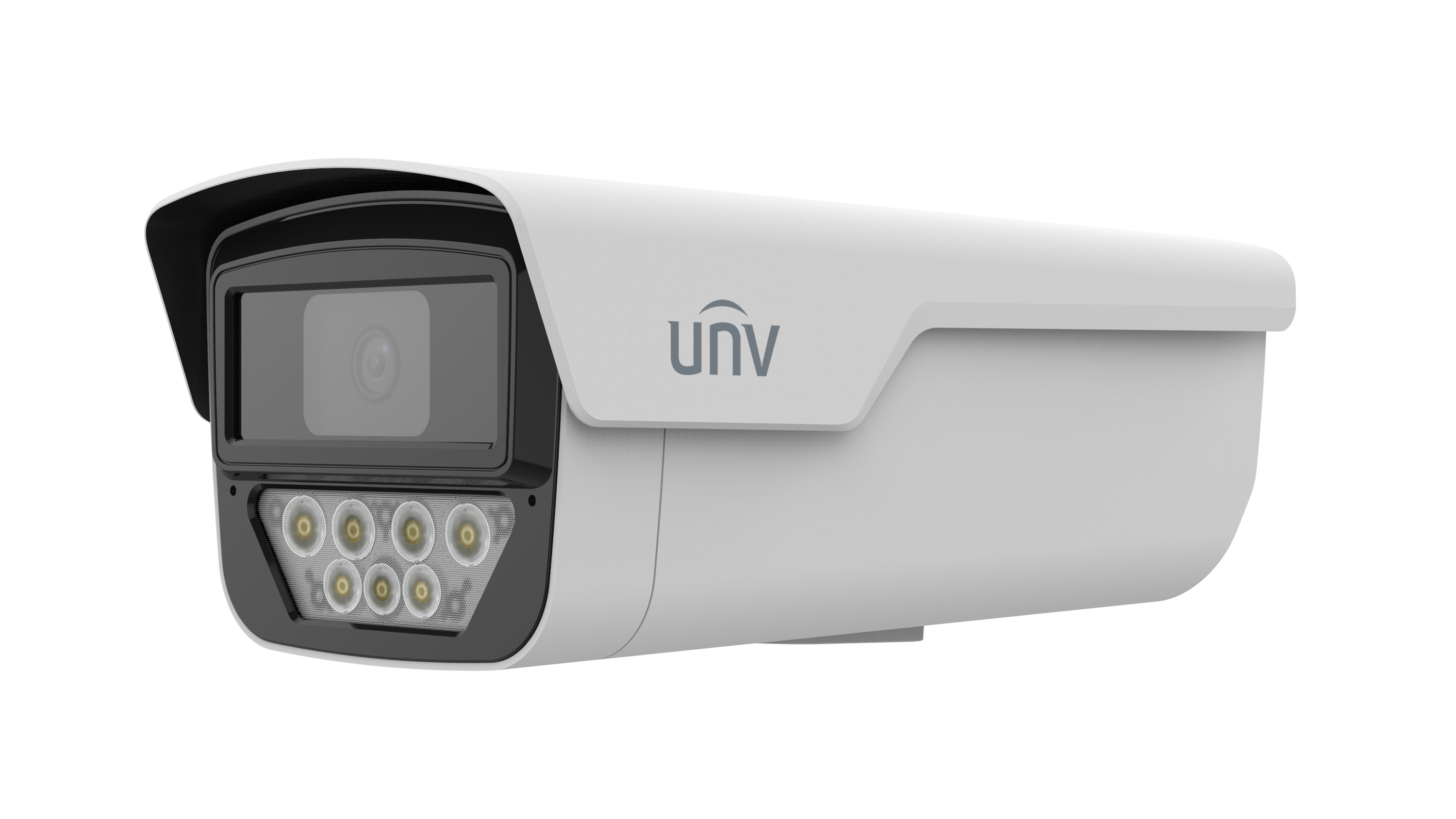

Uniview - IPC245LP-ADF40KC-WP - UNV 5MP Wise-ISP ColorHunter Fixed Bullet Network Camera(4.0mm)
5MP Wise-ISP ColorHunter Fixed Bullet Network Camera(4.0mm)
Features:
- High quality image with 5MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; Ultra 265, H.265, H.264, MJPEG
- Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic& Speaker
- Warm Light, up to 50m warm light distance
- 7 warm lights (5 for supplementary lighting + 2 for warning purposes)
- Supports 512 GB Micro SD card
- IP67 protection
- Support PoE power supply
| Model | IPC245LP-ADF40KC-WP | IPC245LP-ADF60KC-WP |
| Camera |
| Max Resolution | 5 MP | |
| Sensor | 1/1.8" CMOS | |
| Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |
| S/N | >52 dB | |
| WDR | 120 dB | |
| Lens | ||
| Focal Length | 4.0 mm | 6.0 mm |
| Iris Type | Fixed | |
| Iris | F1.0 | |
| Field of View (H) | 96.1° | 61.8° |
| Field of View (V) | 52.2° | 33.5° |
| Field of View (D) | 113.5° | 71.0° |
| DORI | ||
DORI Distance (Lens) | 4.0mm | 6.0mm |
DORI Distance (Detect) | 62.1m(203.6ft) | 93.1m(305.5ft) |
DORI Distance (Observe) | 24.8m(81.5ft) | 37.2m(122.2ft) |
DORI Distance (Recognize) | 12.4m(40.7ft) | 18.6m(61.1ft) |
DORI Distance (Identify) | 6.2m(20.4ft) | 9.3m(30.5ft) |
| Illuminator | ||
Supplemental Light | Warm light | |
Illumination Distance (Warm Light) | 50 m (164.0 ft) | |
Light On/Off Control | Auto/Manual | |
| Video | ||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |
| Video Bit Rate | 128 Kbps to 6144 Kbps | |
| U-code | Support | |
| OSD | Up to 4 OSDs | |
| D | ATASHEET | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Support | ||
| Video Stream | Dual streams | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | ||
Digital Noise Reduction | 2D/3D DNR | ||
| Smart Illumination | Support | ||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital defog | ||
| Events | |||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | ||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||
| Intelligent | |||
Smart Intrusion Prevention (Lite) | Intrusion, crossline detection (both detection are based on human body and vehicle detection) | ||
| Audio | |||
Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | Support | ||
| Suppression | Support | ||
| Sampling Rate | 8 kHz | ||
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | ||
| Network Storage | ANR, NAS (NFS) | ||
| Network | |||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | ||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||
| Client | UNV-Link, UNV-Link Pro, EZStation | ||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||
| Interface | |||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||
