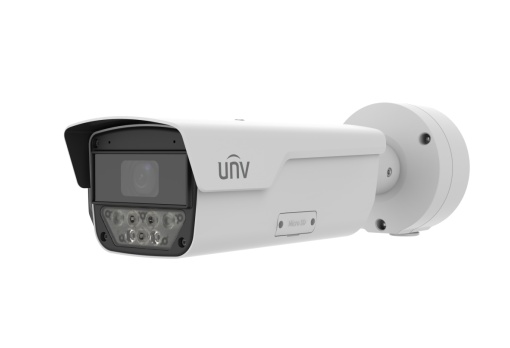

Uniview - IPC264SA-AHDX4K-I1 - 4MP LightHunter Intelligent Bullet Network Camera
Part number:
IPC264SA-AHDX4K-I1
Price:
4MP LightHunter Intelligent Bullet Network Camera
Features:
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
- Ultra 265, H.265, H.264, MJPEG
- Support Capturing car license picture and collect other car information when the car passes tripwire
- Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 130 dB Optical WDR (Wide Dynamic Range)
- 5 mixed-lights, up to 120m IR range, up to 30m warm light
- DC12V or PoE (IEEE 802.3at) power supply
- Built-in heater, allow low temperature start-up at -40°C
- Audio 2 in and 1 out, Alarm 3 in and 2 out
- IP67,IK10
| IPC264SA-AHDX4K-I1 | |||||
| Camera | |||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 8~32mm@F1.6, AF automatic focusing and motorized zoom lens | ||||
| Iris | P-iris | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 8 | 165.7(543.7ft) | 66.3(217.5ft) | 33.1(108.7ft) | 16.6(54.4ft) | |
| 32 | 444.4(1458.1ft) | 177.8(583.2ft) | 88.9(291.6ft) | 44.4(145.8ft) | |
| Field of View (H) | 42.6°~23.5° | ||||
| Field of View (V) | 15.2°~8.9° | ||||
| Field of View (D) | 52.4°~27.7° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Min. Illumination | Colour:0.0005lux (F1.6, AGC ON) 0 lux with Light | ||||
| WDR | 130dB | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >56dB | ||||
| IR Range | Up to 120m (393.7 ft) | ||||
| Warm Light Range | Up to 30m (98.4 ft) | ||||
| Wavelength | 750nm | ||||
| Light On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 60fps; Sub Stream: 2MP(1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Intelligent(Supported when frame rate is below 30) | |||||
| Traffic Monitoring | Support Capturing car license picture and collect other car information when the car passes tripwire Up to 4 lanes can be set Two types of application mode avaliable: High/Low pole | ||||
| Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||||
| Event | |||||
| Basic Detection | Audio detection, Tampering Alarm, Motion detection | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Two way audio | Supported | ||||
| Sampling Rate | 8,16KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | EZStation Ezview EZLive | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Interface | |||||
| Audio I/O | 2 Input: impedance 1kΩ±10%; amplitude 2.5V [p-p] | ||||
| 1 Output: impedance 600Ω | |||||
| Alarm I/O | 3 Input | ||||
| 2 Output: AC125V 0.5A / DC30V 1A | |||||
| Built-in MIC | Support, built-in mic*2 | ||||
| Built-in Speaker | Support | ||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||
| Serial Port | 1 RS485 | ||||
| Certifications | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
| General | |||||
| Power | DC12V(±25%), PoE+(IEEE802.3at) | ||||
| Power consumption: Max 23W | |||||
| Dimensions | 406 x 126 x 130mm(16.0” x 5.0” x 5.1”) | ||||
| Net Weight | 2.14kg(4.72lb) | ||||
| Built-in heater | Support | ||||
| Working Environment | -40°C ~60°C (-40°F ~ 140°F), Humidity: 5%~95% RH (non-condensing) | ||||
| Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: 5%~95% RH (non-condensing) | ||||
