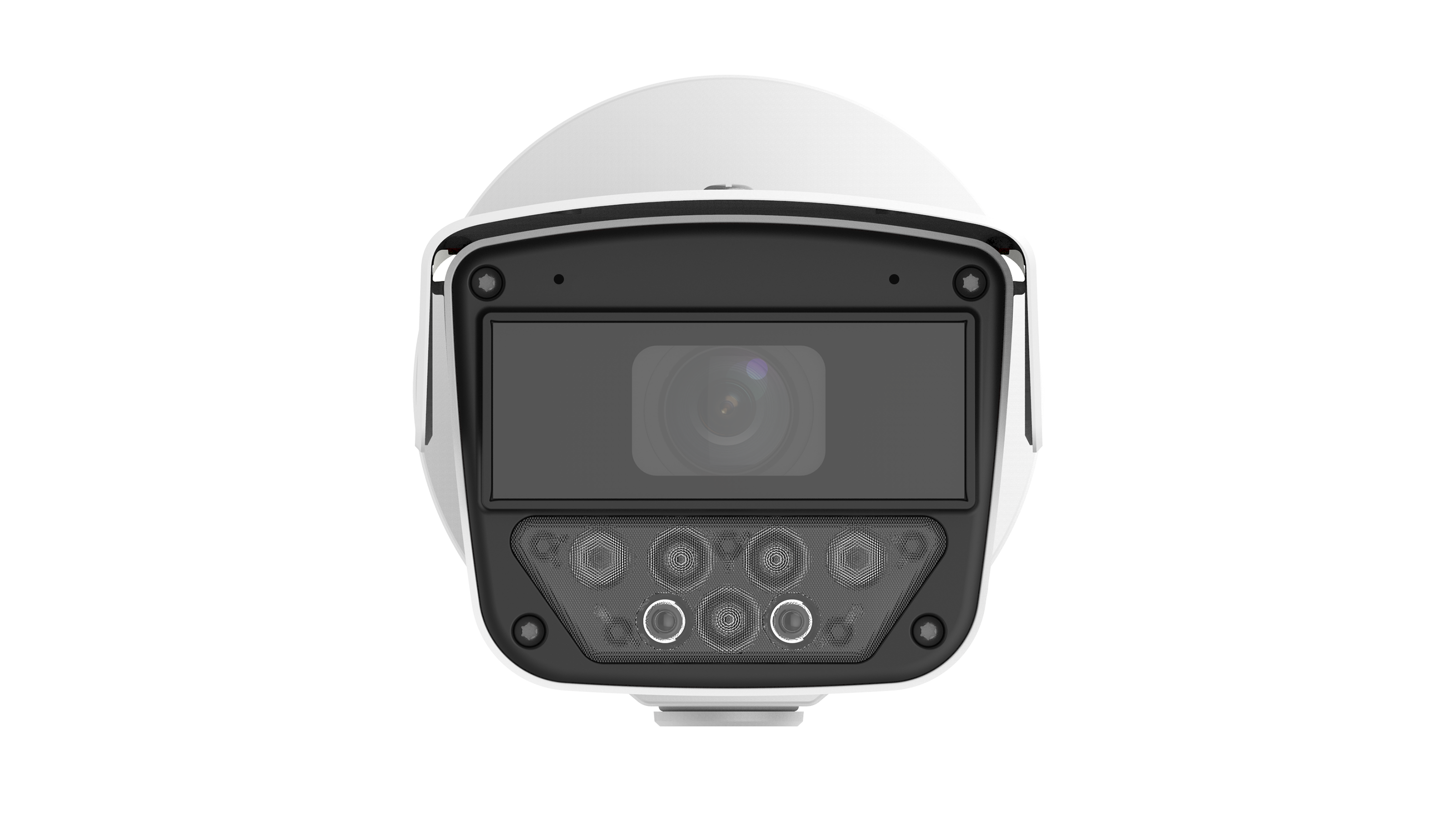

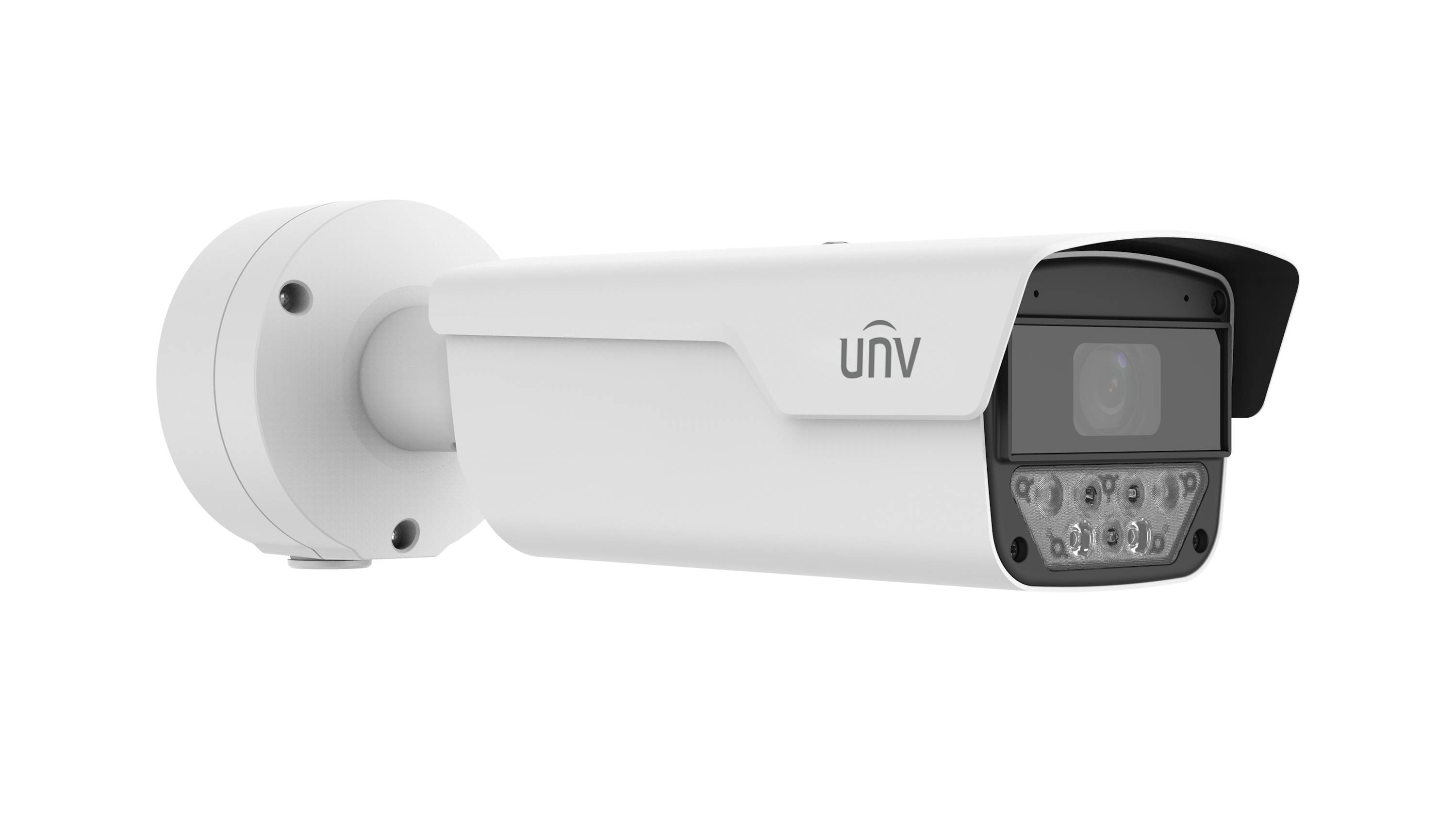

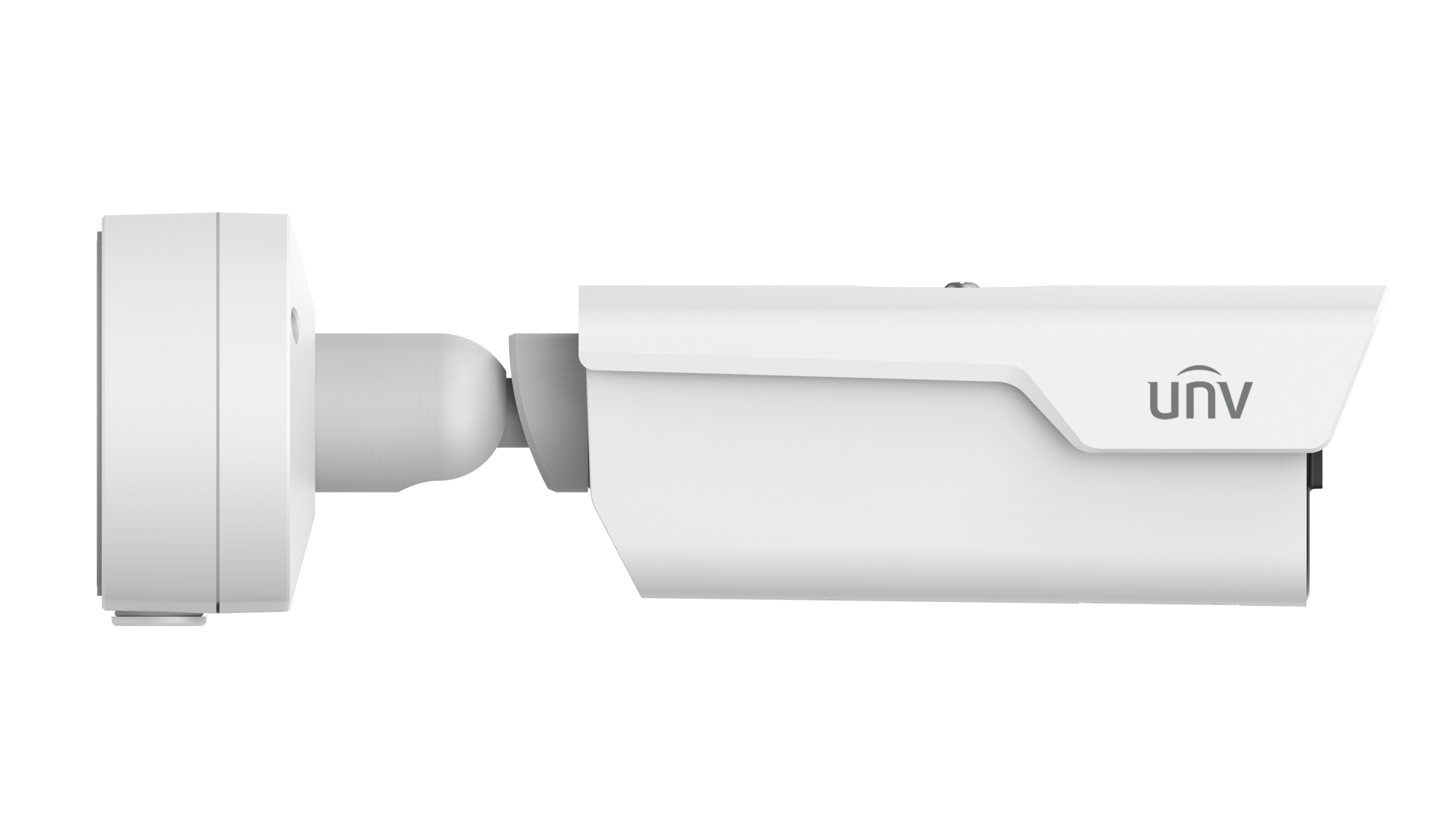

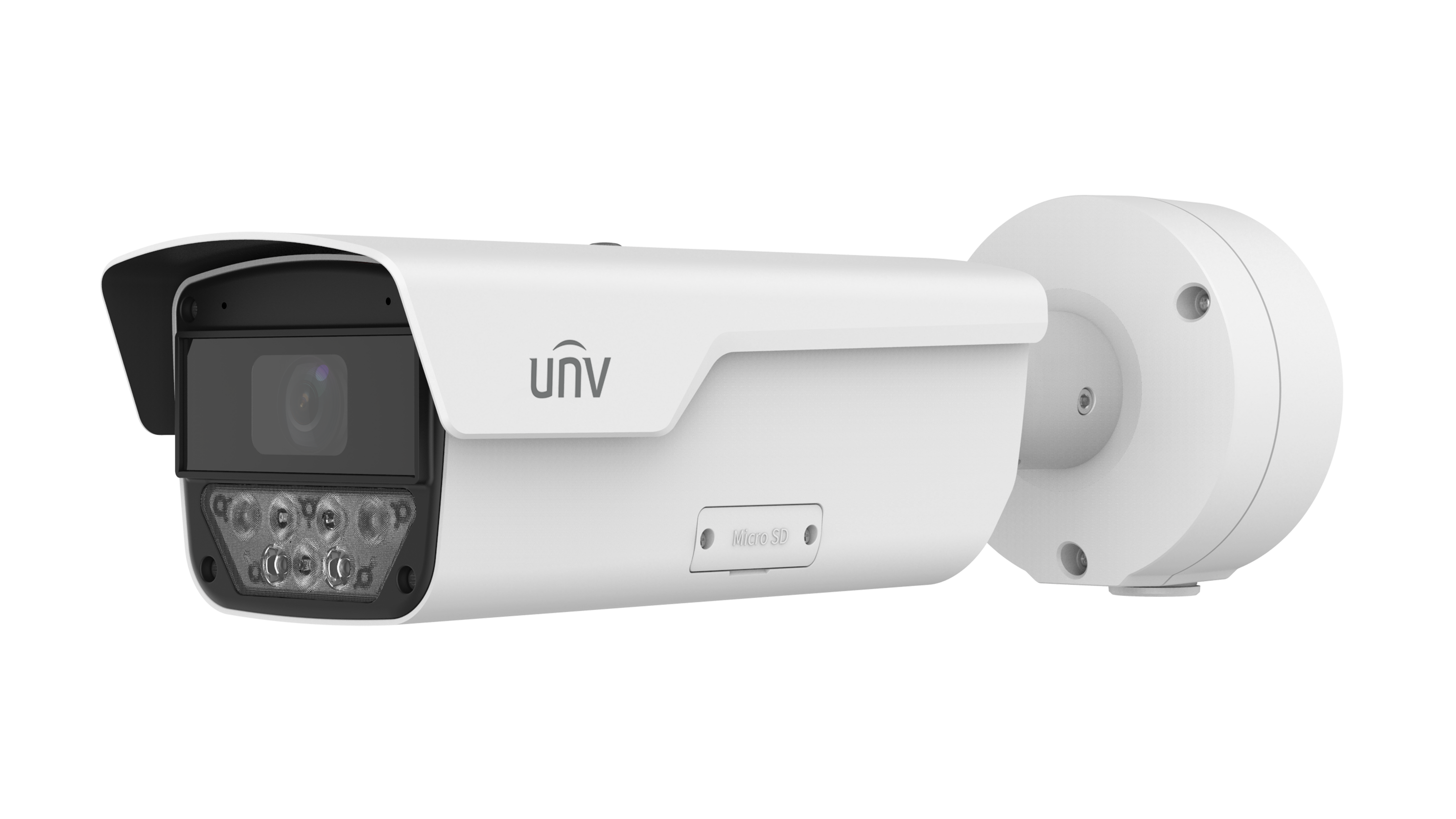

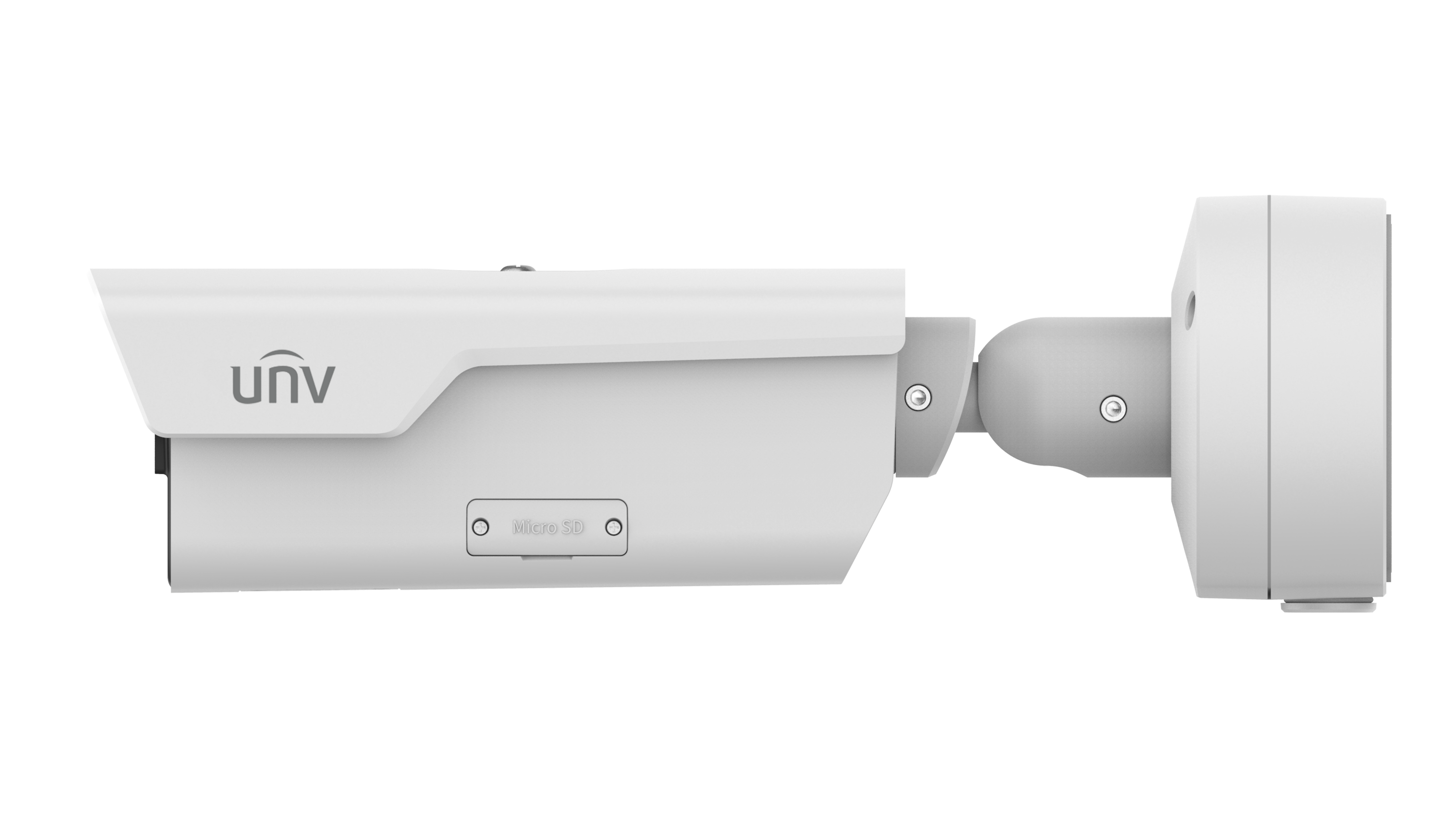

Uniview - IPC264SA-AHDX4K-I1 - 4MP LightHunter VF Dual-light Bullet Network Camera
Part number:
IPC264SA-AHDX4K-I1
Price:
4MP LightHunter VF Dual-light Bullet Network Camera
Features:
- High quality image with 4MP,1/1.8’’ CMOS sensor
- 2688*1520@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
- Ultra 265, H.265, H.264, MJPEG
- Support Capturing car license picture and collect other car information when the car passes tripwire
- Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 130 dB Optical WDR (Wide Dynamic Range)
- 5 mixed-lights, up to 120m IR range, up to 30m warm light
- DC12V or PoE (IEEE 802.3at) power supply
- Built-in heater, allow low temperature start-up at -40°C
- Audio 2 in and 1 out, Alarm 3 in and 2 out
- IP67,IK10
| Camera | |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour:0.001lux (F1.6, AGC ON) 0 lux with Light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 130 dB |
| S/N | >56 dB |
| Lens | |
| Focal Length | 8 to 32 mm |
| Iris | F1.6 |
| Field of View (H) | 42.6°~15.2° |
| Field of View (V) | 23.5°~8.9° |
| Field of View (D) | 52.4°~17.9° |
| Iris Type | P-iris |
| DORI | |
| DORI Distance (Lens) | 8~32(mm) |
| DORI Distance (Detect) | 165.7m(543.7ft)~444.4m(1458.1ft) |
| DORI Distance (Observe) | 66.3m(217.5ft)~177.8m(583.2ft) |
| DORI Distance (Recognize) | 33.1m(108.7ft)~88.9m(291.6ft) |
| DORI Distance (Identify) | 16.6m(54.4ft)~44.4m(145.8ft) |
| Illuminator | |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) |
| Illumination Distance (IR) | 120 m (393.7 ft) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 750 nm |
| Video | |
| Frame Rate-Main Stream | 4MP(2688*1520), Max 60fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
| ROI | Support |
| Video Stream | Triple streams |
| Frame Rate-Third Stream | D1 (720*576), Max 60fps |
| OSD | Up to 10 OSDs |
| Intelligent | |
| Traffic Monitoring | Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole |
| People Counting | Support people flow counting and crowd density monitoring |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Flip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Heatwave Reduction | N/A |
| Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Ultra motion detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| PTZ | |
| Home Position | Support |
| Interface | |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2-Mar |
| Serial Port | 1 channel RS485 interface |
| Built-in Mic | Built-in two mics |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC12V(±25%) , PoE+ (IEEE 802.3at) |
| Power Consumption | Max 23W |
| Heater | Support |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 406 x 126 x 130 mm (16.0” x 5.0” x 5.1”) (L x W x H) |
| Weight | 2.14kg(4.72lb) |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
