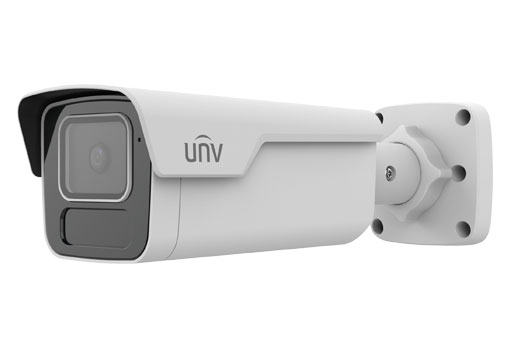

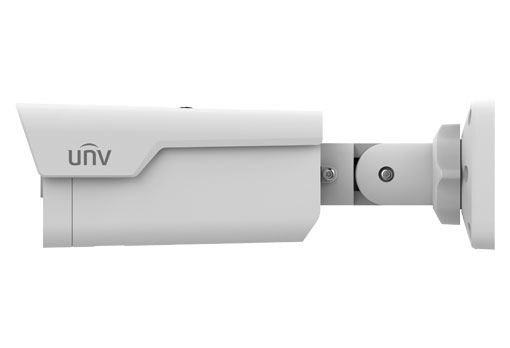

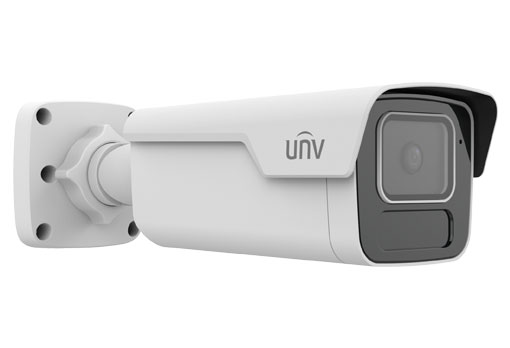

Uniview - IPC2B15SS-ADF40K-I1 - UNV 5MP Bullet Network Camera, 4.0mm（SIP with color retrieval ）
Part number:
IPC2B15SS-ADF40K-I1
Price:
5MP HD Intelligent Lighthunter IR Fixed Bullet Network Camera 4.0mm
Features:
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)（Only WDR）
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 130dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic
- Smart IR, up to 80m (262 ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
| IPC2B15SS-ADF40K-I1 | ||||
| Camera | ||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||
| Minimum Illumination | Colour: 0.002Lux (F1.6, AGC ON) 0 lux with IR on | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | ||
| WDR | 130dB | |||
| S/N | >56dB | |||
| Lens | ||||
| Lens | 4.0mm@F1.6 | |||
| Iris | Fixed | |||
| Field of View (H) | 91.25° | |||
| Field of View (V) | 43.70° | |||
| Field of View (D) | 95.35° | |||
| DORI | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | |
| 2.8 | 63.0 | 25.2 | ||
| 4.0 | 90.0 | 36.0 | ||
| Illuminator | ||||
| IR Range | Up to 80m (262 ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| U-code | Support | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| Video Stream | Triple streams | |||
| Image | ||||
| Auto Scene Match (ASM) | Support（Only WDR） | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital Noise Reduction | 2D/3D DNR | |||
| Smart IR | Support | |||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| Dewarping | N/A | |||
| HLC | Support | |||
| BLC | Support | |||
| Defog | Digital Defog | |||
| Intelligent | ||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||
| Attribute Collection | SIP with color retrieval | |||
| Events | ||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |||
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication | |||
| Audio | ||||
| Audio Compression | G.711U, G.711A | |||
| Audio Bitrate | 64 Kbps | |||
| Two-way Audio | Support | |||
| Suppression | Support | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 512GB | |||
| Network Storage | ANR, NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||
| Client | EZStation EZView EZLive | |||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||
| Interface | ||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||
| Alarm I/O | 1/1 | |||
| RS485 | N/A | |||
| Built-in Mic | Support | |||
| Built-in Speaker | N/A | |||
| WIFI | N/A | |||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||
| Video Output | N/A | |||
| Certifications | ||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) | |||
| Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||
| Protection | IP67 (IEC 60529) | |||
| General | ||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||
| Power consumption: Max 10W | ||||
| Power Interface | Ø 5.5mm coaxial power plug | |||
| Dimensions (L × W × H) | 269 × 96 × 82mm (10.6” × 3.8” × 3.2”) | |||
| Weight | 0.84kg (1.85lb) | |||
| Material | Metal+Plastic | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||
| Surge Protection | 4KV | |||
| Reset Button | Support | |||
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |||
