Uniview - IPC2B18SS-ADF40K-I1 - UNV 8MP Bullet Network Camera, 4.0mm (SIP with color retrieval)
Uniview - IPC2B18SS-ADF40K-I1 - UNV 8MP Bullet Network Camera, 4.0mm (SIP with color retrieval)
Part number:
IPC2B18SS-ADF40K-I1
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

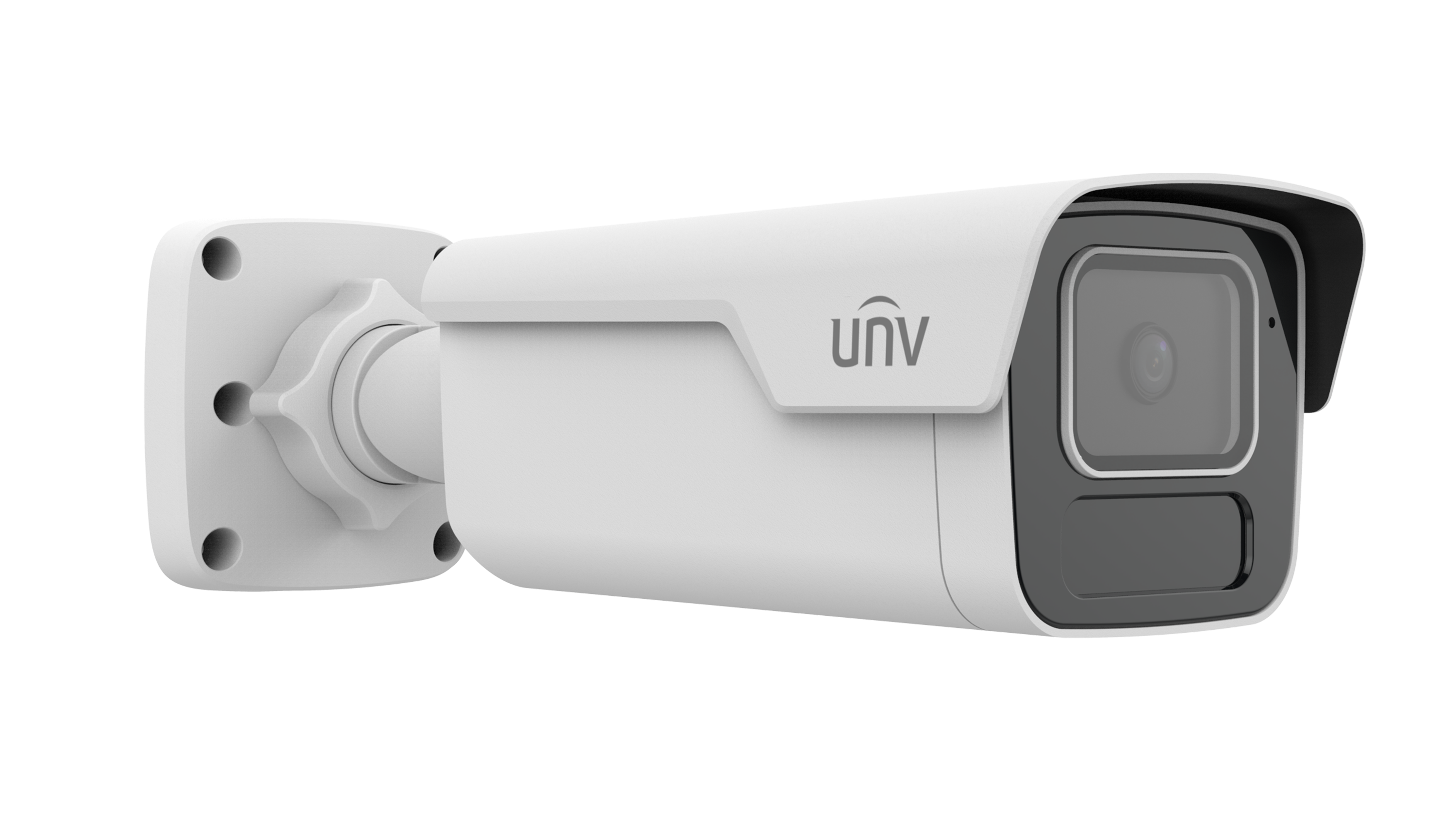

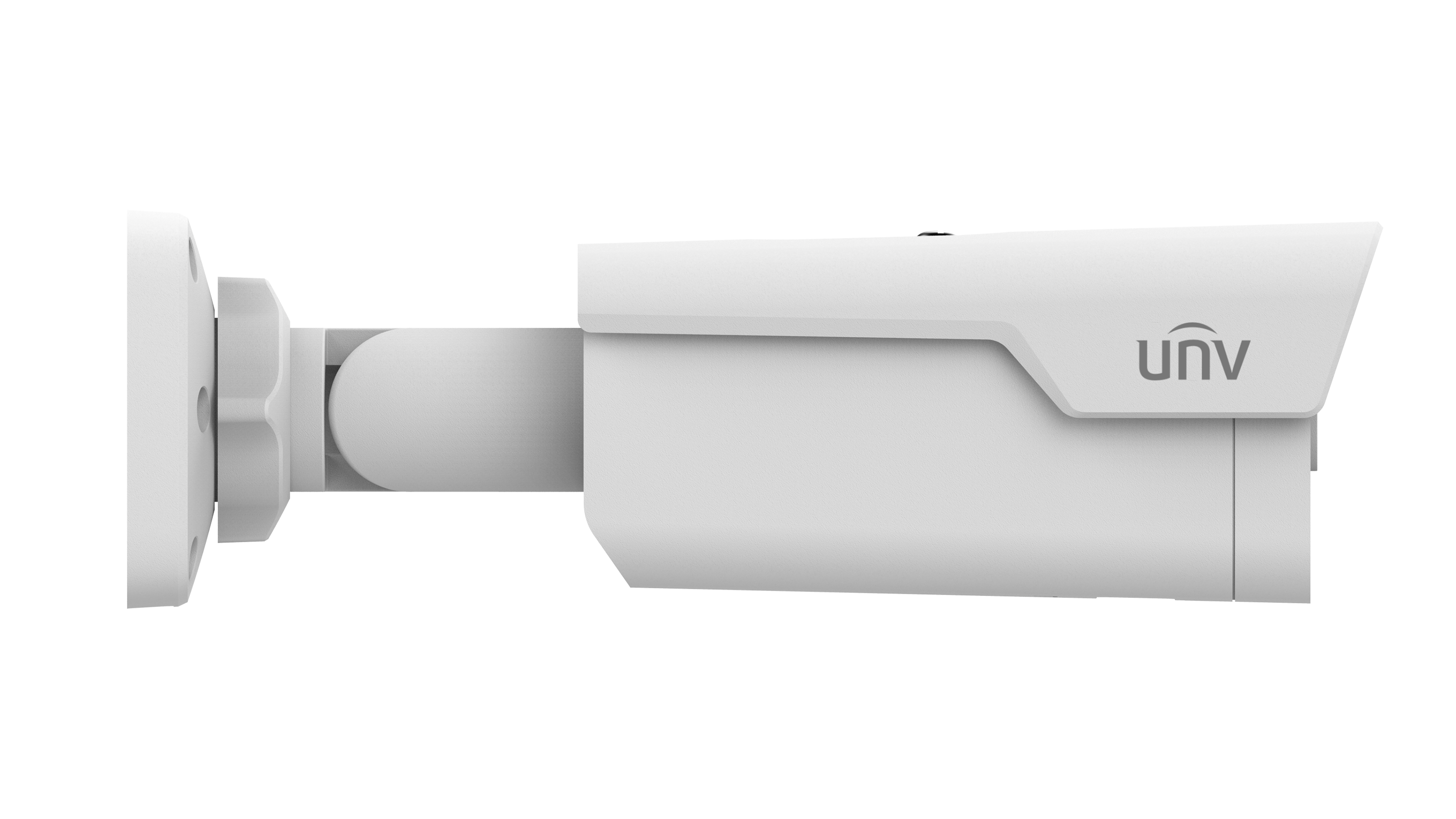

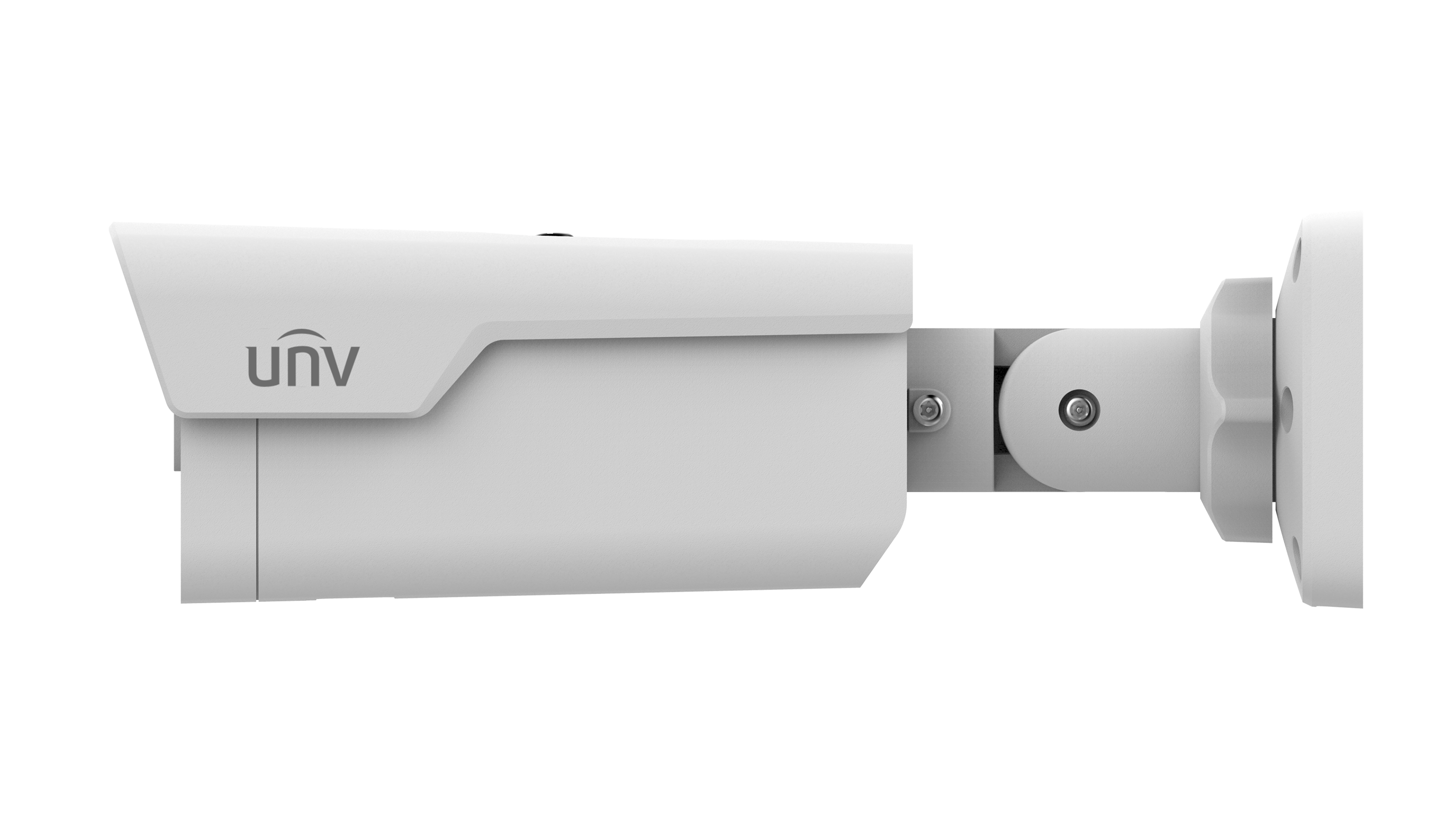

UNV 8MP Bullet Network Camera, 4.0mm (SIP with color retrieval)



Features:

  • High quality image with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
  • Intelligent
  • Intelligent People Flow Counting and Crowd Density Monitoring
  • Smart intrusion prevention with Color retrieval
  • Auto Scene Match (ASM)（Only WDR）
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • 130dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Built-in Mic
  • Smart IR, up to 80m (262 ft) IR distance
  • Supports 512 G Micro SD card
  • IP67 protection
IPC2B18SS-ADF40K-I1
Camera
Max Resolution8MP
Sensor1/2.8" CMOS
Min. IlluminationColour: 0.002 lux (F1.6, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N>56dB
WDR130dB
Lens
Focal Length4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)88.35°
Field of View (V)49.61°
Field of View (D)94.19°
Lens TypeFixed
DORI
DORI Distance (Lens)4.0mm
DORI Distance (Detect)124.1m(407.3ft)
DORI Distance (Observe)49.7m(162.9ft)
DORI Distance (Recognize)24.8m(81.5ft)
DORI Distance (Identify)12.4m(40.7ft)
Illuminator
Illumination Distance (IR)80 m (262 ft)
IR On/Off ControlAuto/Manual
Wavelength850 nm
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps;4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
H.264 Code ProfileBaseline profile, Main profile, High profile
Video Bit Rate128 Kbps ~ 16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamTriple Streams
Auto Scene Match (ASM)Support (Only WDR)
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Smart IRSupport
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart Intrusion PreventionCross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Statistical AnalysisN/A
People CountingSupport People Flow Counting and Crowd Density Monitoring
Attribute CollectionSIP with color retrieval
Events
Basic DetectionMotion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 KHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),
API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 x RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power InterfaceØ 5.5 mm coaxial power plug
Dimensions269 × 96 × 82mm (10.6” × 3.8” × 3.2”) (L x W x H)
Weight0.86kg (1.91lb)
MaterialMetal + Plastic
Working Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonSupport
Web Client Language20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Name
Description
Size
Downloads
File
Datasheet
0.4mb
