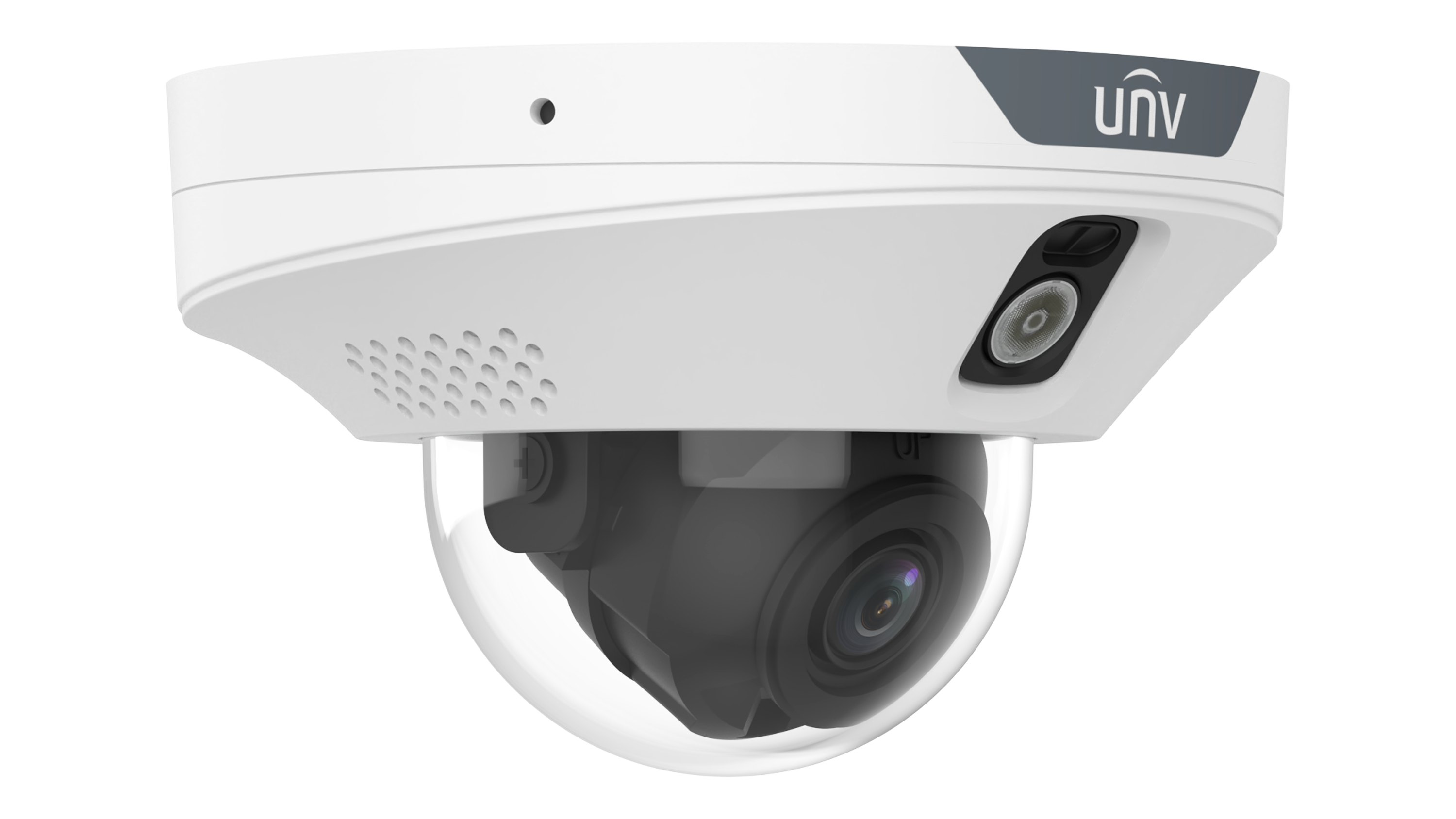

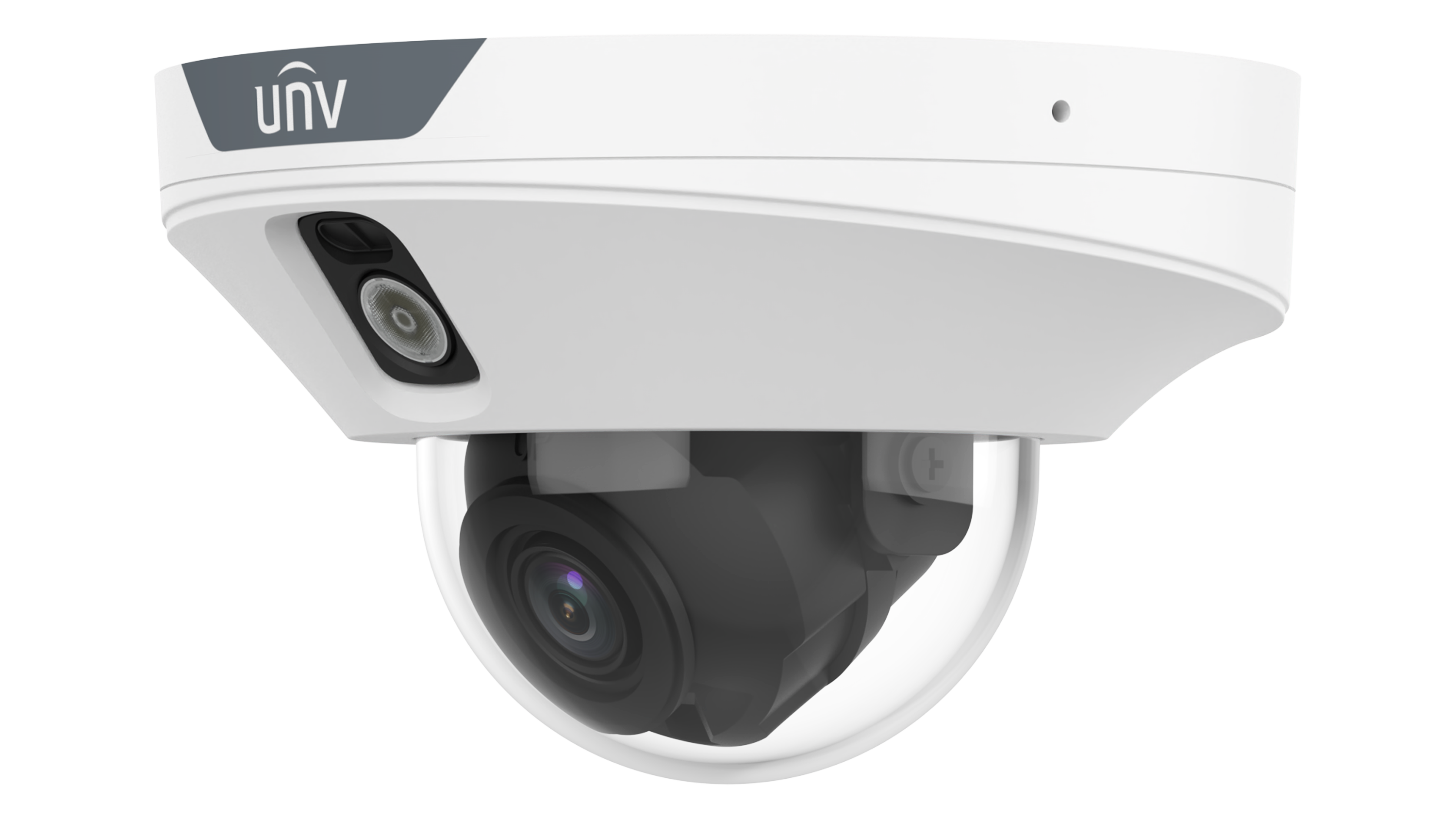

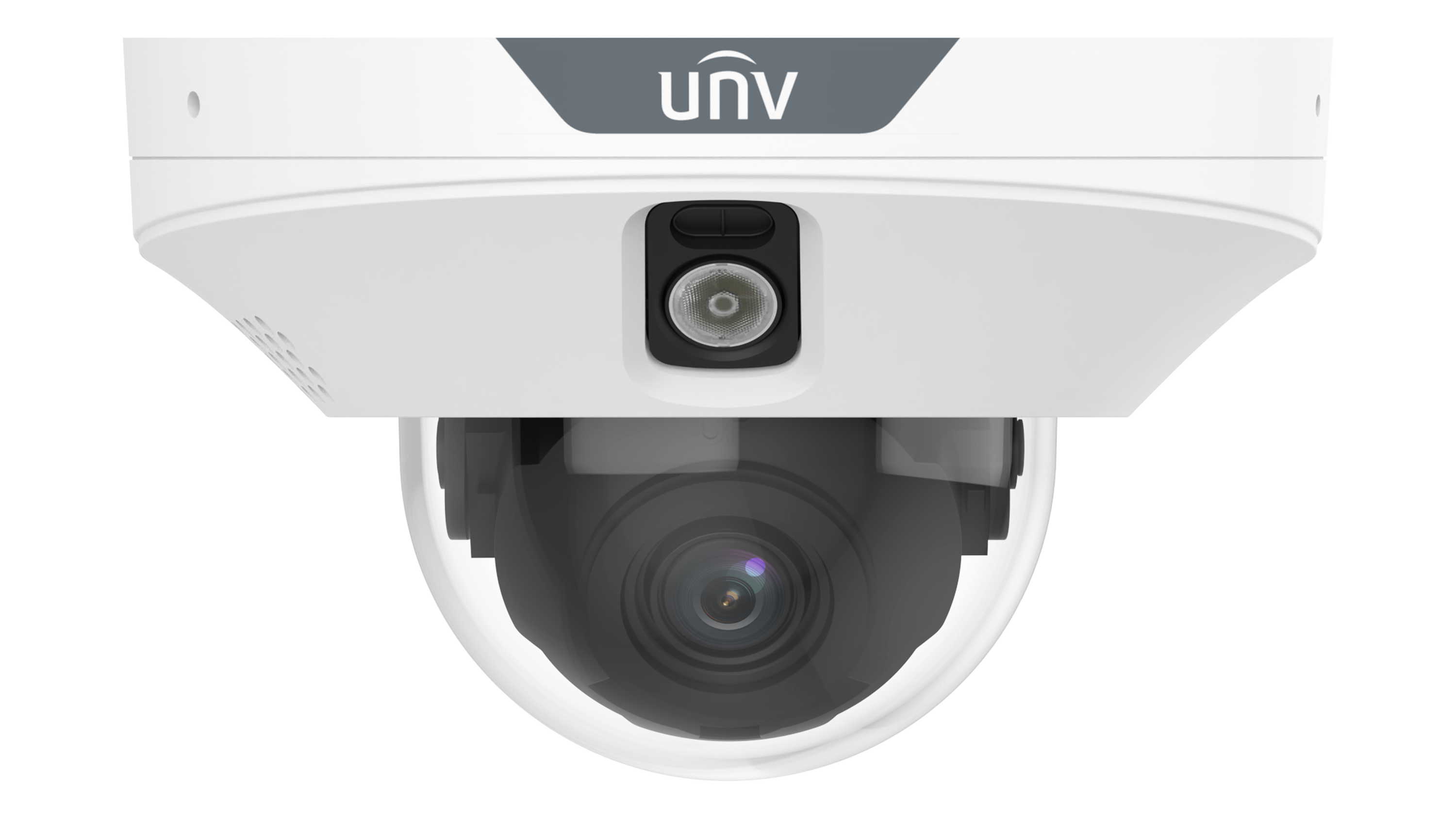

Uniview - IPC312LP-ADF20KC-DL - UNV 2MP Dual Light Low Profile Dome, 2.0mm
Part number:
IPC312LP-ADF20KC-DL
Price:
2MP HD Active Deterrence Mini Dome Network Camera for elevator
Features:
- High quality image with 1080P, 1/2.8" CMOS sensor
- 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
- 126° wide field of view covers larger monitoring area
- Supports elevator entrance detection, based on target classification, accurately focuses on electric moped and bicycle
- Supports active deterrence. When elevator entrance detection is triggered, the camera links sound alarm and white light linkage
- Supports the real-time display of elevator floor information and status on the live OSD
- Supports accurate tampering detection powered by excellent TOF sensor
- Supports real-time display of temperature and humidity data on the live OSD
- Supports IR and white light, with the white light used for warning and the IR providing supplementary illumination up to 10 m (32.8 ft)
- Built-in mic and speaker, supports two-way audio
- MicroSD, up to 512 GB
- Supports PoE power supply
- 2-axis
| IPC312LP-ADF20KC-DL | |
| Camera | |
| Max Resolution | 2 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Tilt: 0° to 68°, Rotate: 3° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal Length | 2.0 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 126° |
| Field of View (V) | 71.0° |
| Field of View (D) | 144.6° |
| Lens Type | Fixed |
| DORI | |
| DORI Distance (Lens) | 2 mm |
| DORI Distance (Detect) | 31.0 m (101.8 ft) |
| DORI Distance (Observe) | 12.4 m (40.7 ft) |
| DORI Distance (Recognize) | 6.2 m (20.4 ft) |
| DORI Distance (Identify) | 3.1 m (10.2 ft) |
| Illuminator | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 10 m (32.8 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Video Bit Rate | 128 Kbps to 6144 Kbps |
| U-code | Support |
| OSD | Up to 6 OSDs (include two extra OSDs that only be used for elevator status display) |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Image | |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Image Stabilization | N/A |
| Intelligent | |
| Smart Intrusion Prevention | N/A |
| People Counting | N/A |
| Statistical Analysis | N/A |
| Elevator Entrance Detection | Support (based on target classification: motorcycle and bicycle) |
| Events | |
| Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Audio detection |
| Event for Elevator | TOF tampering detection, Elevator status display: current floor, status: stop/down/up/speed, Temperature and humidity detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Interface | |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.5 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø100.0 mm × 68.7 mm (Ø3.9" × 2.7") (Ø × H) |
| Weight | 0.25 kg (0.55 lb) |
| Material | Plastic |
| Working Environment | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
