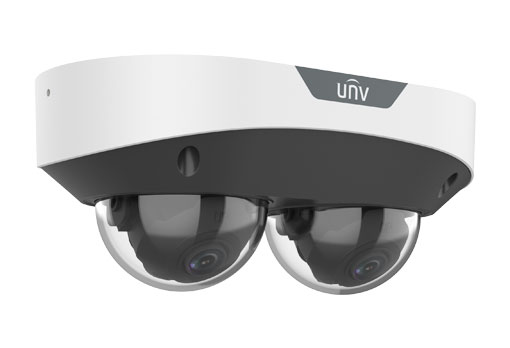

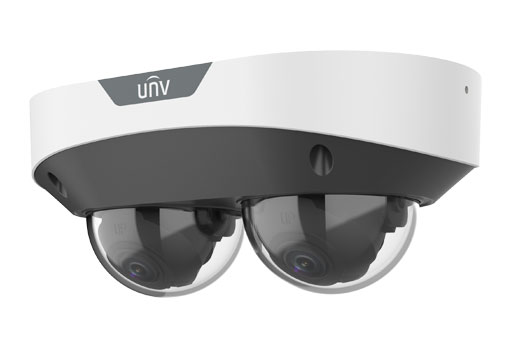

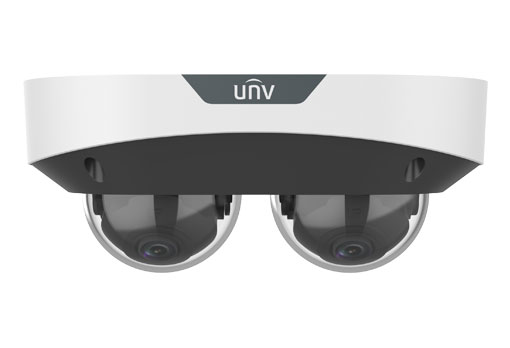

Uniview - IPC3224SS-ADF28K-I1 - 4MP, 2.88mm lens Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera
Uniview - IPC3224SS-ADF28K-I1 - 4MP, 2.88mm lens Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera
Part number:
IPC3224SS-ADF28K-I1
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

4MP, 2.8mm lens Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera



Features:

  • High quality image with 2*4MP resolution, 1/3.0"CMOS sensor
  • Single IP with dual channels
  • 4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
  • Ultra 265, H.264,H.265, MJPEG
  • Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
  • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
  • Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
  • 130dB true WDR technology enables clear image in strong light scene
  • Built-in two Mics
  • Supports 256 GB Micro SD card
  • DC12V or PoE(IEEE 802.3af) power supply
  • IP67 protection and IK10 vandal resistant
  • 3-Axis
Camera
Sensor1/3.0", 4.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour:0.002 (F1.6, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° ~ 180°Tilt: 0° ~ 66°Rotate: 0° ~ 346°
WDR130dB
S/N>52dB
Lens
Lens type2.8mm@F1.64.0mm@F1.6
IrisFixed
Field of View (H)97.7°81.4°
Field of View (V)52.7°43.4°
Field of View (O)102.5°86.9
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.0m(206.7ft)25.2m(82.7ft)12.6m(41.3ft)6.3m(20.7ft)
4.090.0m(295.3ft)36.0m(118.1ft)18.0m(59.1ft)9.0m(29.5ft)
Illuminator
IR RangeUp to 30m (98ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/ Flip Vertical/ Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring(Only Channel 1)
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way audioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4,IPv6, IGMP, ICMP ,ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile T, Profile G), API,SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/OInput: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Serial PortN/A
Built-in MicBuilt-in two Mics
Built-in SpeakerN/A
WIFIN/A
Network1 RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certifications
EMCCE-EMC (EN 55032, EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9.1w
Power InterfaceØ 5.5mm coaxial power plug
Dimensions176×104×72mm (6.9" × 4.1" ×2.8")
Weight0.62kg(1.37lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonSupport
