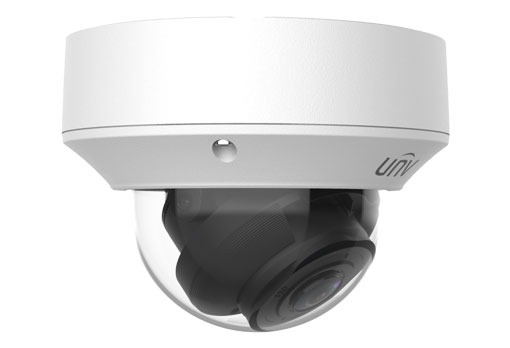

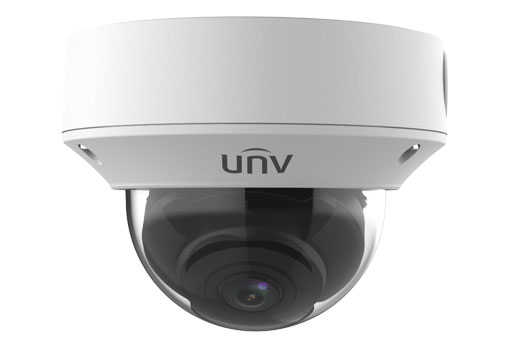

Uniview - IPC3234SA-DZK - 4MP LightHunter Intelligent Vandal resistant Dome Network Camera
Part number:
IPC3234SA-DZK
Price:
UNV 4MP Motorized VF Vandal-resistent Network IR Fixed Dome Camera (Super Starlight, Built in AI algorithm, 2.8-12mm, WDR, PoE, RJ45, SD Slot, Full cable)
Features:
- 1/1.8",progressive scan,CMOS
- Up to 2688x1520 resolution,30fps
- 2.8~12mm Optical Zoom & Auto Focus
- Smart IR, up to 40m IR distance
- 120dB True WDR
- Ultra 265,H.265,Corridor Mode,ROI,ONVIF
- AC24V±25%,DC12V±25%,PoE
- Support 1/1 audio in/out, 1/1 alarm in/out
- IP67, IK10
Optics:
- 1/1.8", Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- Five streams
- 2688*1520@30fps in the main stream
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- DC12V or AC24V or PoE power supply
- Wide voltage range of ±25% in AC, ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
| Camera | |||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8-12mm@F1.2, AF automatic focusing and motorized zoom lens | ||||||
| Iris | Auto aperture | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 42(137.8ft) | 16.8(55.1ft) | 8.4(27.6ft) | 4.2(13.8ft) | |||
| 12 | 180(590.4ft) | 72(236.2ft) | 36(118.1ft) | 18(59.0ft) | |||
| Angle of View (H) | 35.6°~107.9° | ||||||
| Angle of View (V) | 20.4°~75.4° | ||||||
| Angle of View (O) | 43.8°~140.3° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~68° | Rotate: 0°~355 | ||||
| Min. Illumination | Colour:0.0005lux (F1.2, AGC ON) 0 lux with IR | ||||||
| WDR | 120dB | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >55dB | ||||||
| IR Range | Up to 40m (131 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps; 4MP(2560*1440),Max 30fps; 2MP(1920*1080),Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps Fourth Stream: D1 (720*576), Max 60fps Fifth Stream: D1 (720*576), Max 60fps | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| ROI | Supported | ||||||
| Video stream | Five streams | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Smart | |||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U,G.711A | ||||||
| Two way audio | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||
| Network Storage | ANR,NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||||||
| Compatible Integration | ONVIF, API | ||||||
| Client | EZStation Ezview EZLive | ||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Interface | |||||||
| Audio I/O | Audio cable | ||||||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||||||
| Certifications | |||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||||
| General | |||||||
Power | AC24V±25%, DC12V(±25%), PoE(IEEE 802.3af) | ||||||
| Power consumption: Max 10W | |||||||
| Support overcurrent protection , Input short circuit protection | |||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm(Φ5.8" x 4.4") | ||||||
| Net Weight | 0.96kg(2.12lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge protection | 6KV | ||||||
| Vandal Resistant | IK10 | ||||||
| Ingress Protection | IP67 | ||||||
