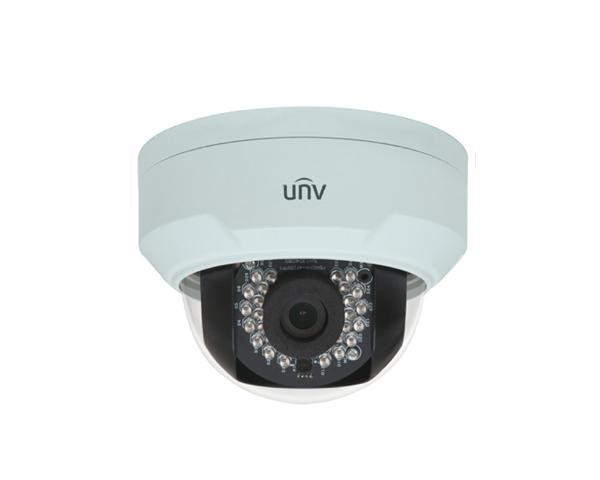

Uniview - IPC324ER3-DVPF36 - 4MP Network Fixed Dome Camera
Part number:
IPC324ER3-DVPF36
Price:
UNV 4MP Network Fixed Dome(3.6mm,WDR,30m IR,SD Slot,3 Axis,PoE,H.265,Audio,Alarm)
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| IPC324ER3-DVPF28 | |
| Camera | |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 |
DORI Distance | Lens (mm) |
| 2.8 | |
| 3.6 | |
| Angle of View (H) | 104.4° |
| Angle of View (V) | 67° |
| Angle of View (O) | 135.7° |
| Adjustment angle | Pan: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >55dB |
| IR Range | Up to 30m (98ft) IR range |
| wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
Client | EZStation EZView EZLive |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| Interface | |
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] |
| Output: impedance 600Ω; amplitude 2V [p-p] | |
| Alarm I/O | 1/1 |
Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5W | |
| Dimensions (Ø x H) | Φ108.5 x 81mm (Ø4.28” x 3.2”) |
| Net Weight | 0.45kg (0.99lb) |
| Material | Metal + Plastic |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection | 2KV |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
