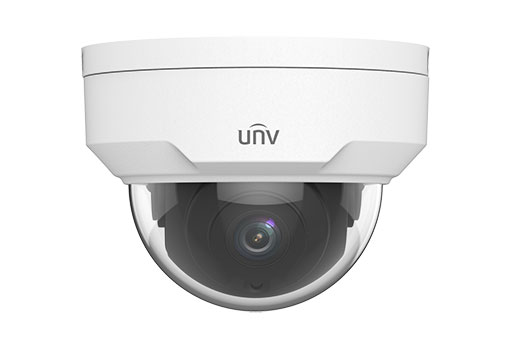

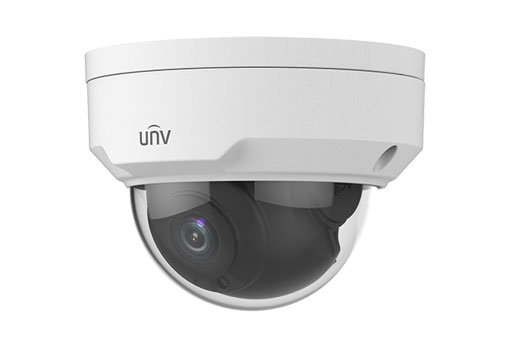

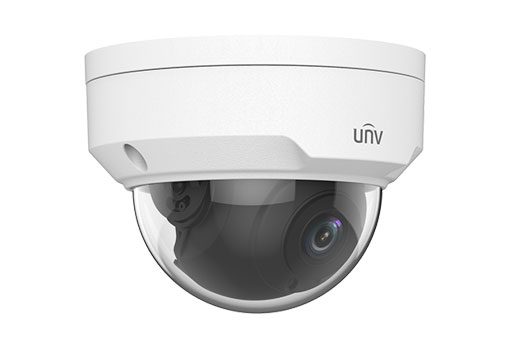

Uniview - IPC324LR3-VSPF28-D - 4MP Vandal-resistant Network IR Fixed Dome Camera
Part number:
IPC324LR3-VSPF28-D
Price:
4MP Vandal-resistant Network IR Fixed Dome Camera
Features:
Optics:
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
- 2-Axis
| IPC324LR3-VSPF28-D | IPC324LR3-VSPF40-D | |||||
| Camera | ||||||
| Sensor | 1/3", progressive scan, 4.0 megapixel, CMOS | |||||
| Lens | 2.8mm@F2.0 | 4.0mm@ F2.0 | ||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |
| 2.8mm | 42 | 16.8 | 8.4 | 4.2 | ||
| 4.0mm | 60 | 24 | 12 | 6 | ||
| Angle of View (H) | 104.4° | 78.9° | ||||
| Angle of View (V) | 54.4° | 39.6° | ||||
| Angle of View (O) | 135.7° | 97.0° | ||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | ||||
| Shutter | Auto/Manual, 1/6~1/100000 s | |||||
Minimum Illumination | Colour: 0.02 Lux (F2.0, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Defog | Digital Defog | |||||
| WDR | DWDR | |||||
| Video | ||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
Frame Rate | Main Stream:4MP (2592*1520): Max. 20 fps; Sub Stream:720P (1280*720): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Network | ||||||
| Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL | |||||
Compatible Integration |
ONVIF(Profile S), API | |||||
| Interface | ||||||
| Network | 1 RJ45 100M Base-TX Ethernet | |||||
| General | ||||||
Power | DC12V±25%, PoE (IEEE802.3 af) | |||||
| Power consumption: Max.5.5w | ||||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø5.8” x 4.4”) | |||||
