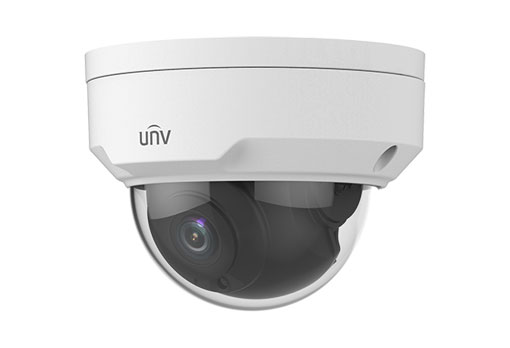

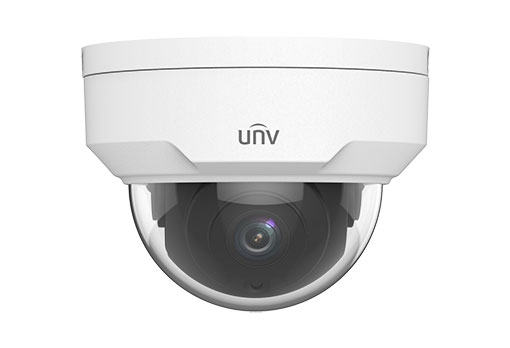

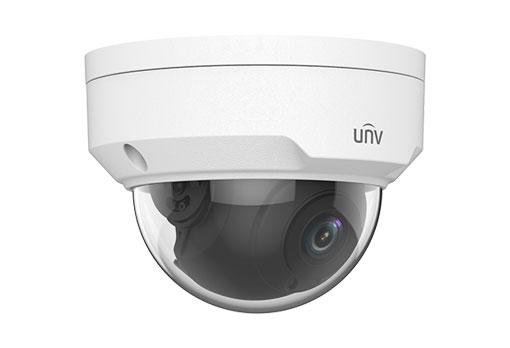

Uniview - IPC325LR3-VSPF28-D - 5MP Vandal-resistant Network IR Fixed Dome Camera
Part number:
IPC325LR3-VSPF28-D
Price:
Optics:
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
| IPC325LR3-VSPF28-D | IPC325LR3-VSPF40-D | ||||||
| Camera | |||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 42 | 16.8 | 8.4 | 4.2 | |||
| 4.0 | 60 | 24 | 12 | 6 | |||
| Angle of View (H) | 105.3° | 79.7° | |||||
| Angle of View (V) | 69.5° | 51.8° | |||||
| Angle of View (O) | 136.9° | 98.0° | |||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| WDR | DWDR | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile | ||||||
Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream:720P (1280*720), Max 20fps | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, Motion detection,Tampering alarm | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||||
| Interface | |||||||
| Network | 10M/100M Base-TX Ethernet | ||||||
| General | |||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 4W | |||||||
