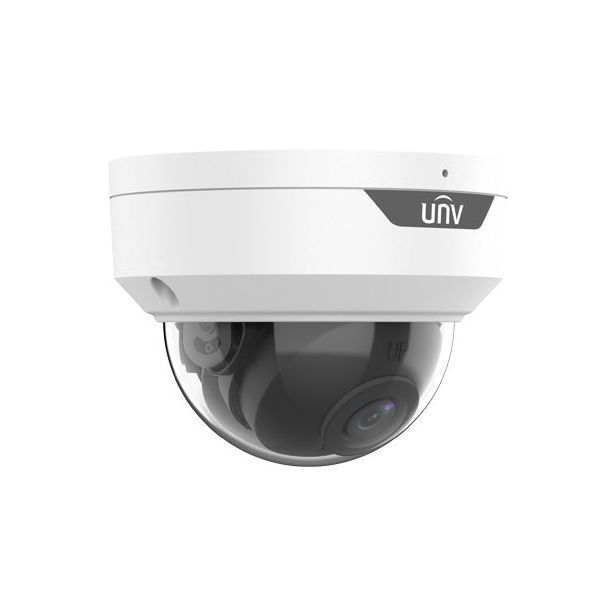

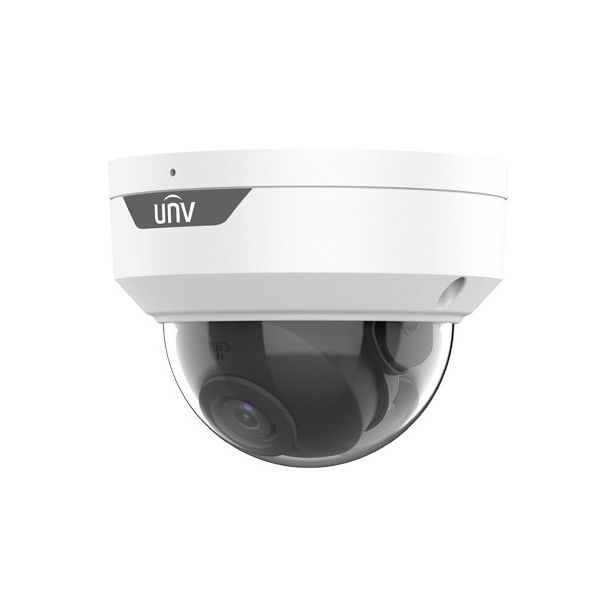

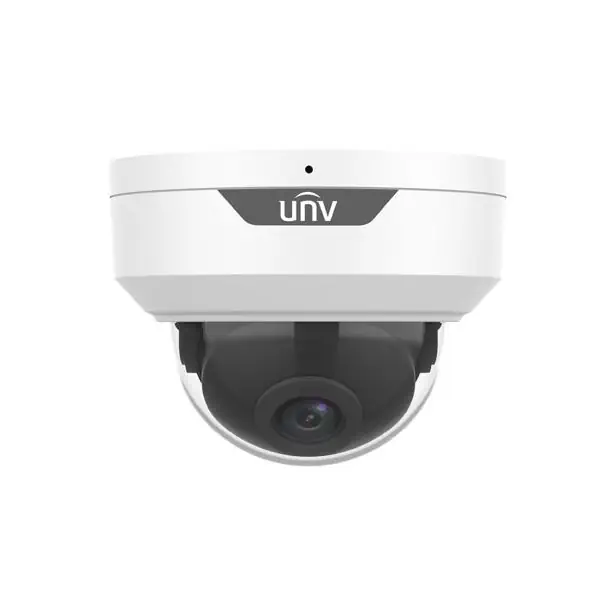

Uniview - IPC325R3-DSF28K-G - 5MP HD Vandal-resistant IR Fixed Dome Network Camera
Part number:
IPC325R3-DSF28K-G
Price:
5MP HD Vandal-resistant IR Fixed Dome Network Camera
Features:
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3- Axis
| IPC325SR3-ADF28K-G | ||||
| Camera | ||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||
| Lens | 2.8mm@F1.6 | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe ( m) | |
| 2.8 | 63.0 | 25.2 | ||
| 4.0 | 90.0 | 36.0 | ||
| Angle of view (H) | 112.9° | |||
| Angle of View (V) | 59.1° | |||
| Angle of View (O) | 121.2° | |||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Minimum Illumination | Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR on | |||
| Day/Night | IR-cut filter with auto switch (ICR) | |||
| Digital noise reduction | 2D/3D DNR | |||
| S/N | >56dB | |||
| IR Range | Up to 30m (98ft) IR range | |||
| Wavelength | 850nm | |||
| IR On/Off Control | Auto/Manual | |||
| Defog | Digital Defog | |||
| WDR | 120dB | |||
| Video | ||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| 9:16 Corridor Mode | Supported | |||
| OSD | Up to 4 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| Motion Detection | Up to 4 areas | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Smart IR | Supported | |||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| Dewarping | N/A | |||
| HLC | Supported | |||
Name
Description
Size
Downloads
File
Datasheet
0.9mb
accessories
with junction box
(Extra back outlet for cable)
MSRP (Dealers Only)
(200mm,need Pendent mount adaptor with TR-CM24-IN)
MSRP (Dealers Only)
