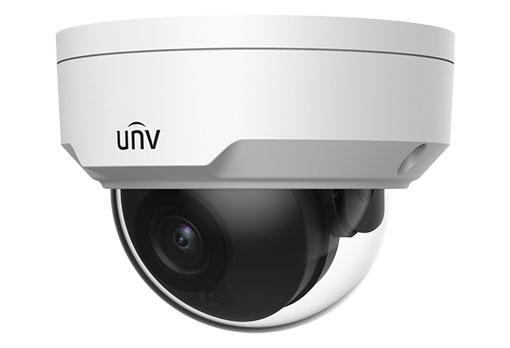

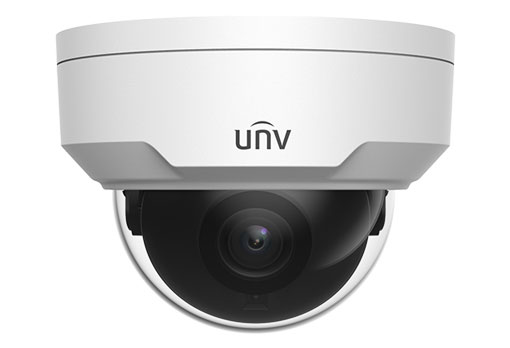

Uniview - IPC325SR3-DVPF28-F - 5MP WDR Network IR Fixed Dome Camera
Part number:
IPC325SR3-DVPF28-F
Price:
UNV 5MP WDR Vandal-resistent Network IR Fixed Dome(2.8mm,PoE,30m IR,Audio,Alarm)
Optics:
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
| IPC325SR3-DVPF28-F | IPC325SR3-DVPF40-F | |||||
| Camera | ||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.1 | 25.2 | 12.6 | 6.3 | ||
| 4.0 | 90.1 | 36.0 | 18.0 | 9.0 | ||
| Angle of View (H) | 105.6° | 80.0° | ||||
| Angle of View (V) | 69.9° | 52.2° | ||||
| Angle of View (O) | 137.3° | 98.4° | ||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
Minimum Illumination | Colour:0.01 Lux (F2.0, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >56dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile | |||||
Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
