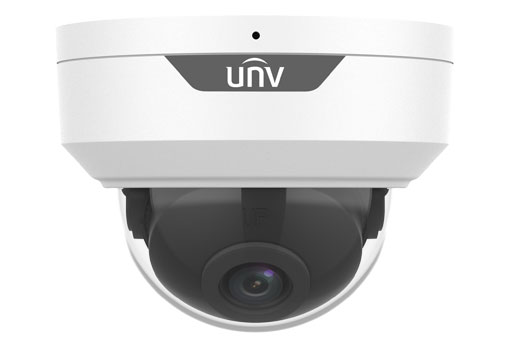

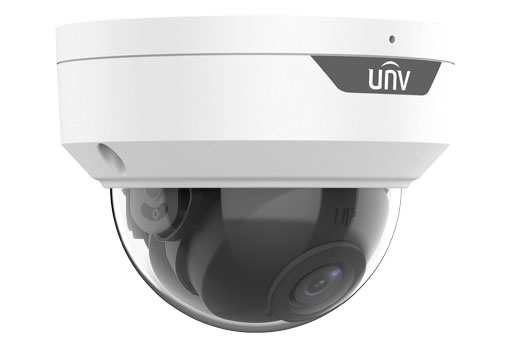

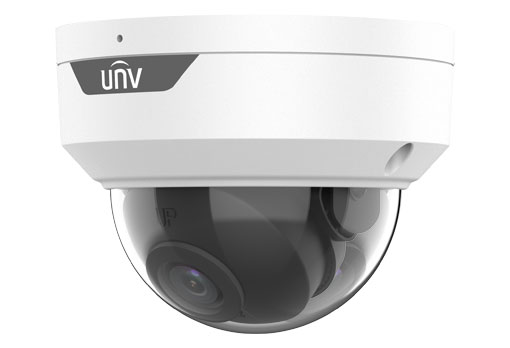

Uniview - IPC328SR3-ADF28KM-G - UNV 8MP WDR Network IR Fixed Dome Camera
Part number:
IPC328SR3-ADF28KM-G
Price:
UNV 8MP WDR Network IR Fixed Dome Camera 2.8mm
Features:
- High quality image with 8MP, 1/2.7"CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- LightHunter technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC328SR3-ADF28KM-G | IPC328SR3-ADF40KM-G | ||||
| Camera | |||||
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | ||||
| S/N | >56dB | ||||
| WDR | 120dB | ||||
| Lens | |||||
| Lens Type | 2.8mm and 4.0mm @1.6, Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Angle of view (H) | 112.9° | 91.2° | |||
| Angle of View (V) | 59.1° | 47.9° | |||
| Angle of View (O) | 121.2° | 95.9° | |||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |
| 2.8mm | 84 | 33.6 | 16.8 | ||
| 4.0mm | 120 | 48 | 24 | ||
| Illuminator | |||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Supported | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Cross line, intrusion(based on human body detection) | ||||
| motion detection, tampering alarm, audio detection | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.5W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ109 x 83mm (Ø4.3” x 3.3”) | ||||
| Weight | 0.37kg (0.82lb) | ||||
| Material | Metal | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | Supported | ||||
| Ingress Protection | Ingression protection: IP67 Vandal resistant: IK10 | ||||
