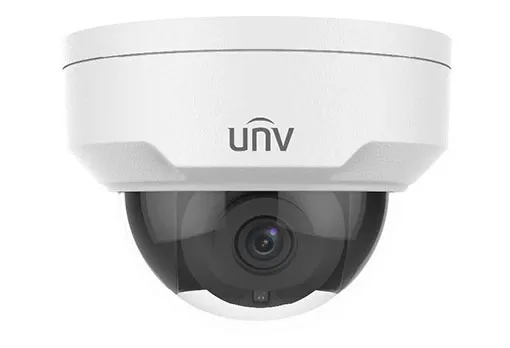

Uniview - IPC328SS-DF28K-I0 - 8MP LightHunter Deep Learning Dome Network Camera
Part number:
IPC328SS-DF28K-I0
Price:
UNV 8MP LightHunter WDR Vandal-resistent Network IR Fixed Dome (2.8mm, Premier Protection, PoE, 30m IR, Audio, Alarm)
Features:
Optics
- 1/2.8’’, Powered by lighthunter
- Smart IR, up to 40m (131 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Smart
Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection - People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 3840*2160@20fps in the main stream
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- DC12V or PoE power supply
- Wide voltage range of ±25% in DC
- Micro SD, up to 256 GB
- Alarm 1 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
| IPC328SS-DF28K-I0 | |||
| Camera | |||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||
| Lens | 2.8mm@F1.6 | ||
| Iris | Fixed | ||
| DORI Distance | Lens (mm) | Detect (m) | |
| 2.8 | 86.9(285.1ft) | ||
| 4.0 | 124.1(407.3ft) | ||
| Field of View (H) | 96.6° | ||
| Field of View (V) | 50.8° | ||
| Field of View (D) | 125.6° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment angle | Pan: 0°~355° | Tilt: 0°~80° | |
| Min. Illumination | Colour:0.0025lux (F1.6, AGC ON) 0 lux with IR | ||
| WDR | 120dB | ||
| Day/Night | IR-cut filter with auto switch (ICR) | ||
| S/N | >56dB | ||
| IR Range | Up to 40m (131 ft) IR range | ||
| Wavelength | 850nm | ||
| IR On/Off Control | Auto/Manual | ||
| Defog | Digital Defog | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| Frame Rate | Main Stream: 8MP(3840*2160),Max 20fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||
| Video Bit Rate | 128 Kbps~16 Mbps | ||
| ROI | Supported | ||
| Video stream | Triple streams | ||
| OSD | Up to 8 OSDs | ||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | ||
| Image | |||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||
| Digital noise reduction | 2D/3D DNR | ||
| Smart IR | Support | ||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||
| HLC | Support | ||
| BLC | Support | ||
| Intelligent | |||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | ||
| Events | |||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||
| Exception Detection And Statistics | Object Removed, Object Left Behind | ||
| Audio | |||
| Audio Compression | G.711U,G.711A | ||
| Two-way Audio | Supported | ||
| Suppression | Supported | ||
| Sampling Rate | 8KHZ | ||
| Storage | |||
| Edge Storage | Micro SD, up to 256 GB | ||
| Network Storage | ANR,NAS(NFS) | ||
| Network | |||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||
| Client | EZStation EZLive Ezview | ||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||
| Interface | |||
| Audio I/O | Audio cable | ||
| 1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||
| 1 output: impedance 600Ω; amplitude 2V [p-p] | |||
| Alarm I/O | 1/1 | ||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||
| Certification | |||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||
| General | |||
Power | DC12V(±25%), PoE(IEEE 802.3af) | ||
| Power consumption: Max 5W | |||
| Dimensions (Ø x H) | Φ109 x 81mm(Φ4.3’’ x 3.2’’) | ||
| Weight | 0.43kg(0.95lb) | ||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||
| surge protection | 2KV | ||
