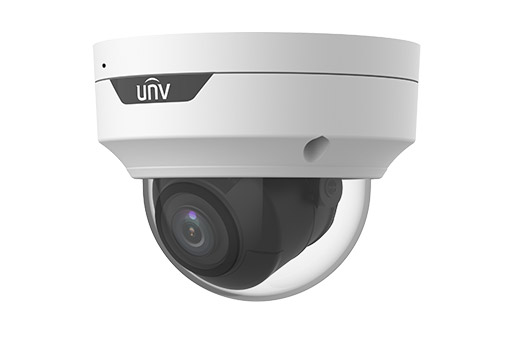

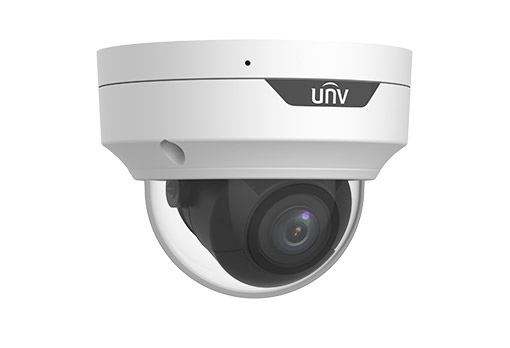

Uniview - IPC3535SR3-ADZK-G - 5MP HD IR VF Dome Network Camera
Part number:
IPC3535SR3-ADZK-G
Price:
UNV 5MP VF Dome
Features:
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296)@ 30/25fps;2MP (1920*1080)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC3535SR3-ADZK-G | ||||||
| Camera | ||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | ||
| 2.8 | 63.0 | 25.2 | 12.6 | |||
| 12 | 270.0 | 108.0 | 54.0 | |||
| Angle of View (H) | 108.79°~ 33.23° | |||||
| Angle of View (V) | 56.90°~ 18.33° | |||||
| Angle of View (O) | 112.56°~37.46° | |||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 70° | Rotate: 3° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| S/N | >56dB | |||||
| IR Range | Up to 40m (131ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital Noise Reduction | 2D/3D DNR | |||||
| Smart IR | Supported | |||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| Dewarping | N/A | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR, NAS(NFS) | |||||
| Smart | ||||||
| Behavior Detection | (Cross line, intrusion)based on human body detection, motion detection, tampering alarm, audio detection | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | |||||
| Network | ||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
Client | EZStation EZView EZLive | |||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | ||||||
| Interface | ||||||
| Network | 10M/100M Base-TX Ethernet | |||||
| Built-in Mic | Supported | |||||
| Certifications | ||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 7.5W | ||||||
| Dimensions (Ø x H) | Φ128mmx100mm (Ø5.0” x 3.9”) | |||||
| Net Weight | 0.65kg (1.43lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 6KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
| Reset Button | Supported | |||||
