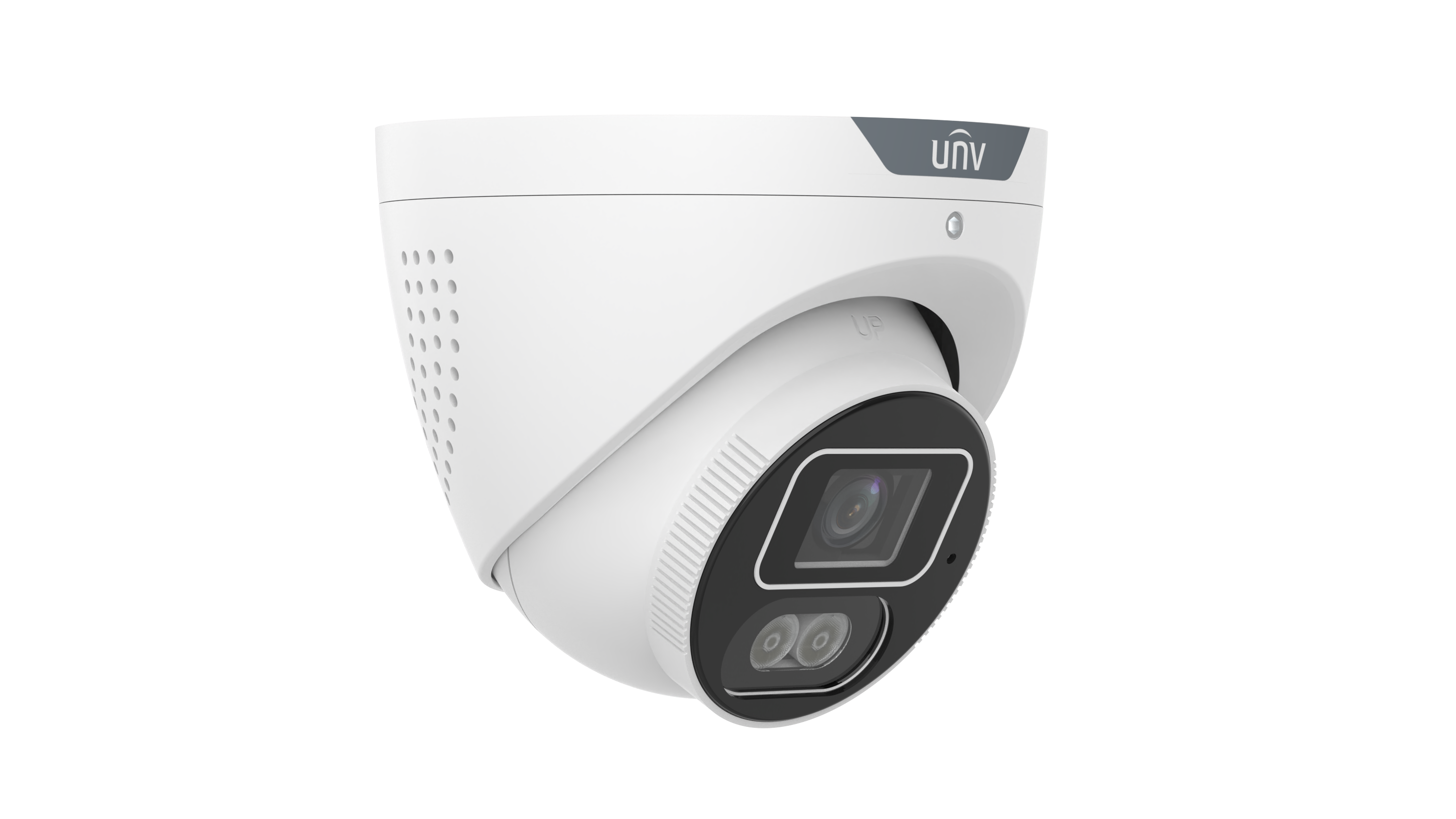

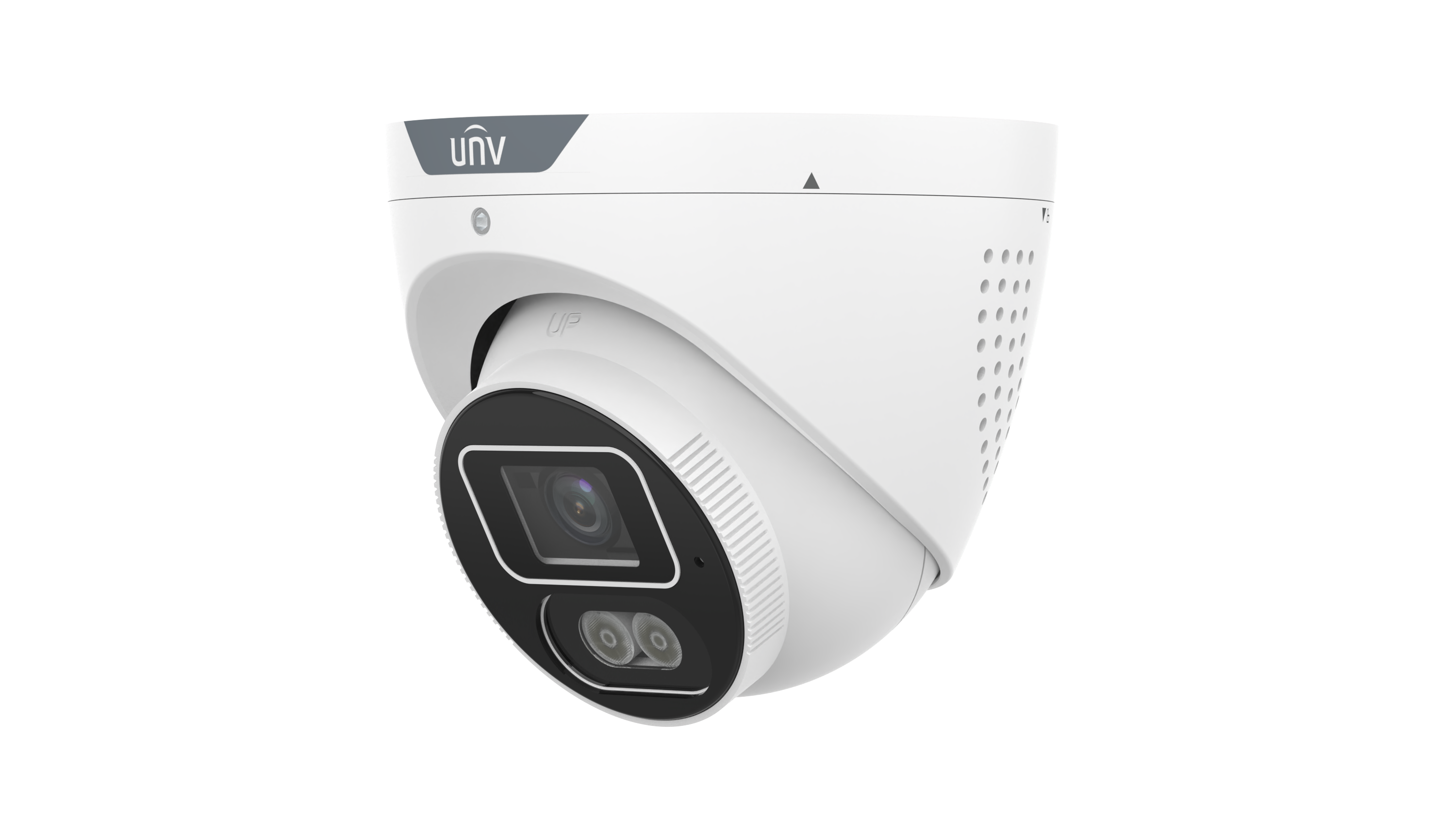

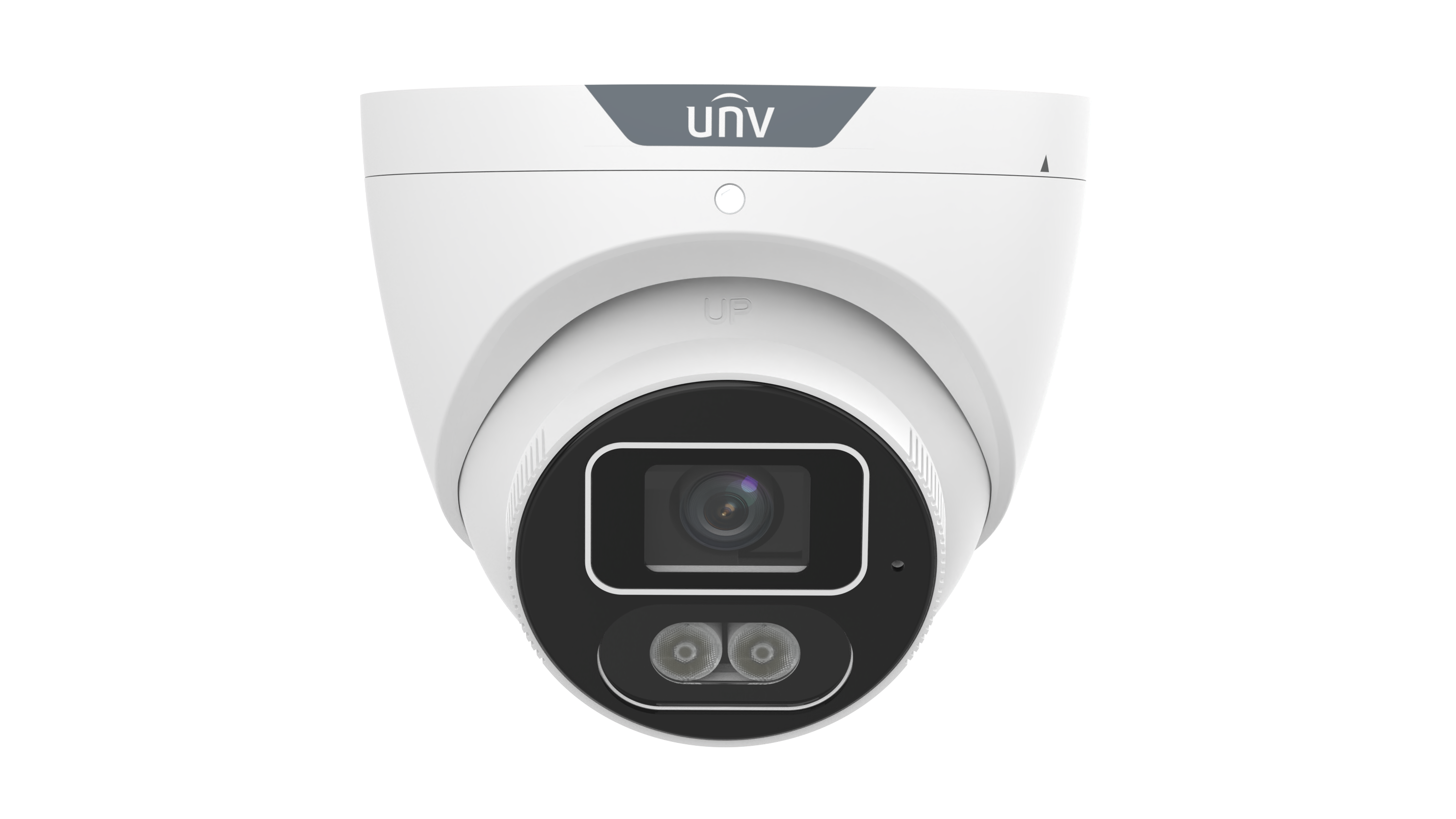

UNV - IPC3614SB-ADF28KMC-I1 - UNV 4MP Tri-guard 1.0+ Turret, 2.8mm
• High quality image with 4 MP, 1/2.9" CMOS sensor
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lighting, accurately focusing on humans, vehicles, and non-motorized vehicles
• Intelligent people flow counting and crowd density monitoring
• 130 dB true WDR technology ensures clear image in strong backlight scene
• Supports 9:16 corridor mode
• Built-in mic and speaker
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
| Camera | |
| Max Resolution / Sensor | 4 MP / 1/2.9" CMOS |
| Min. Illumination (Color/Light) | 0.003 Lux (F1.4, AGC ON), 0 Lux with light |
| Day/Night / Shutter | IR-cut filter with auto switch (ICR) / Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle (Tilt) | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N / WDR | > 56 dB / 130 dB |
| Lens | |
| Focal Length / Lens Type | 2.8 mm / Fixed |
| Iris Type / Iris | Fixed / F1.4 |
| Field of View (H/V/D) | H: 101.1°, V: 57.1°, D: 117.7° |
| DORI Distance | |
| DORI Distance (Detect) | 63.0 m (206.7 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Illuminator | |
| Supplemental Light | Dual light (IR and Warm Light) |
| Illumination Distance (IR/Warm) | 30 m (98.4 ft) |
| Control / Wavelength | IR On/Off and Light On/Off Auto/Manual / 850 nm |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Baseline/Main/High profile) |
| Frame Rate (Main Stream) | 4 MP (2688 × 1520), max. 30 fps |
| Video Bit Rate / Stream | 128 Kbps to 16 Mbps / Triple streams |
| OSD / Privacy Mask / ROI / U-code | Up to 8 OSDs / Up to 4 areas / Support / Support |
| Image | |
| Digital Noise Reduction / Smart IR | 2D/3D DNR / Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Features | HLC (Support), BLC (Support), Defog (Digital defog) |
| Intelligent Features | |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area detection (human/vehicle filtering) |
| People Counting | Support people flow counting and crowd density monitoring |
| Basic Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Audio | |
| Compression / Bitrate | G.711U, G.711A / 64 Kbps (Sampling Rate 8 kHz) |
| Two-way Audio / Suppression | Support / Support |
| Built-in Mic / Speaker | Support / Support |
| Storage & Network | |
| Edge Storage / Network Storage | MicroSD, up to 512 GB / ANR, NAS (NFS) |
| Compatible Integration | ONVIF (Profile S, G, T, M), API, SDK |
| Interface | |
| Audio I/O / Alarm I/O / Serial Port | N/A / N/A / N/A |
| Network / Video Output | 1 × RJ45 10 M/100 M Base-TX Ethernet / N/A |
| General & Environment | |
| Power / Power Consumption | DC 12 V±25%, PoE (IEEE 802.3af) / Max. 11.0 W |
| Dimensions (Ø × H) / Weight | Ø111 mm × 98 mm (Ø4.4" × 3.8") / 0.47 kg (1.04 lb) |
| Protection Rating | IP67 |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) |
| Surge Protection | 4 KV |
| Certification | |
| EMC | CE-EMC, FCC |
| Safety | CE-LVD, UL/CUL |
| Environment | CE-RoHS, WEEE |
| Web Client Language | 20 Languages |
The IPC3614SB-ADF28KMC-I1 camera uses a 4 MP 1/2.9" CMOS sensor, capable of capturing video at a maximum resolution of 2688 × 1520 and a maximum frame rate of 30 frames per second. The optics feature a fixed lens with a focal length of 2.8 mm and an F1.4 aperture. This results in a wide horizontal field of view of 101.1°. The illumination system is a Dual-light type, combining Smart IR and Warm Light, both capable of reaching a distance of 30 meters (98.4 ft). Supported video compression standards include Ultra 265, H.265, H.264, and MJPEG, transmitted across three independent streams.
Image processing is supported by 130 dB Wide Dynamic Range, which manages scenes with high contrast between bright and dark areas. The camera employs 2D/3D Digital Noise Reduction to minimize artifacts and uses ColorHunter with Wise-ISP technology for maintaining color images in low light (minimum illumination is 0.003 Lux). Other features include Backlight Compensation, Highlight Compensation, and Digital Defog. The camera has an IP67 protection rating, indicating full resistance to dust ingress and temporary immersion in water. It operates within a temperature range of -30 °C to 60 °C (-22 °F to 140 °F). Power is supplied via DC 12 V or Power over Ethernet, with a maximum consumption of 11.0 W.
