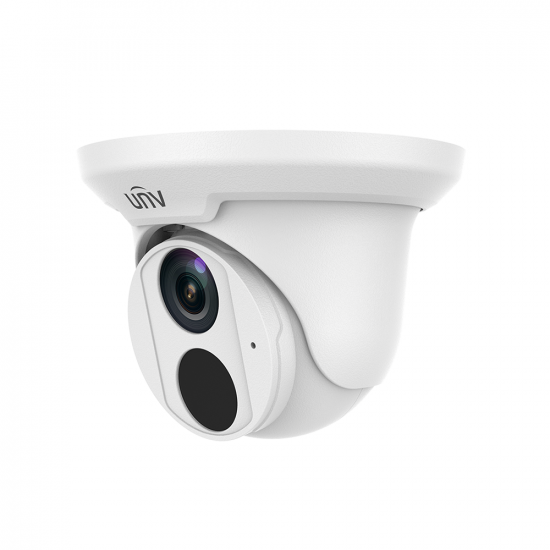

Uniview - IPC3615ER3-ADUPF28M - 5MP Starlight WDR Network IR Fixed Dome Camera 2.8mm EOL
Part number:
IPC3615ER3-ADUPF28M
Price:
UNV 5MP Starlight WDR Network IR Fixed Dome(2.8mm,PoE,Metal,30m IR)
Optics:
- Starlight illumination
- Day/night functionality
- Up to 120 dB WDR (Wide Dynamic Range)
- Smart IR, up to 30 m (98 ft) IR distance
Compression:
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67
| IPC3615ER3-ADUPF28M | IPC3615ER3-ADUPF40M | |
| Camera | ||
| Sensor | 1/2.7", progressive scan, 5.0 megapixel, CMOS | |
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 |
| Angle of view(H) | 105.75° | 86.9° |
| Shutter | Auto/Manual, 1/6~1/100000 s | |
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Digital noise reduction | 2D/3D DNR | |
| S/N | >52 dB | |
| IR Range | Up to 30m (98 ft) IR range | |
| Defog | Digital Defog | |
| WDR | 120dB | |
| Video | ||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile, High Profile | |
| Frame Rate | Main Stream: 5MP(2592 x 1944): Max. 20 fps, 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps; Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.30 fps; | |
| HLC | Supported | |
| BLC | Supported | |
| 9:16 Corridor Mode | Supported | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Smart | ||
| Behavior Detection | Intrusion, cross line, motion detection | |
| Intelligent Identification | Face detection, Defocus, Scene Change | |
| Statistical Analysis | People counting | |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
| Audio | ||
| Audio Compression | G.711 | |
| Suppression | Supported | |
| Sampling Rate | 8 KHZ | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | |
